Utopia Roseberry Installation Manual

Installation Guide
Roseberry Washstand Unit
Important Information
•
Check the product for any signs of damage and remove any protective film.
•
It is recommended that a technically competent installer undertakes installation.
•
It is the installer's responsibility to carry out a thorough assessment of the installation
environment (i.e., wall type/structure and the combined weight of the cabinet and basin) and
use appropriate fixings.
•
Care should be taken when drilling to avoid any hidden wires or pipes.
Installation

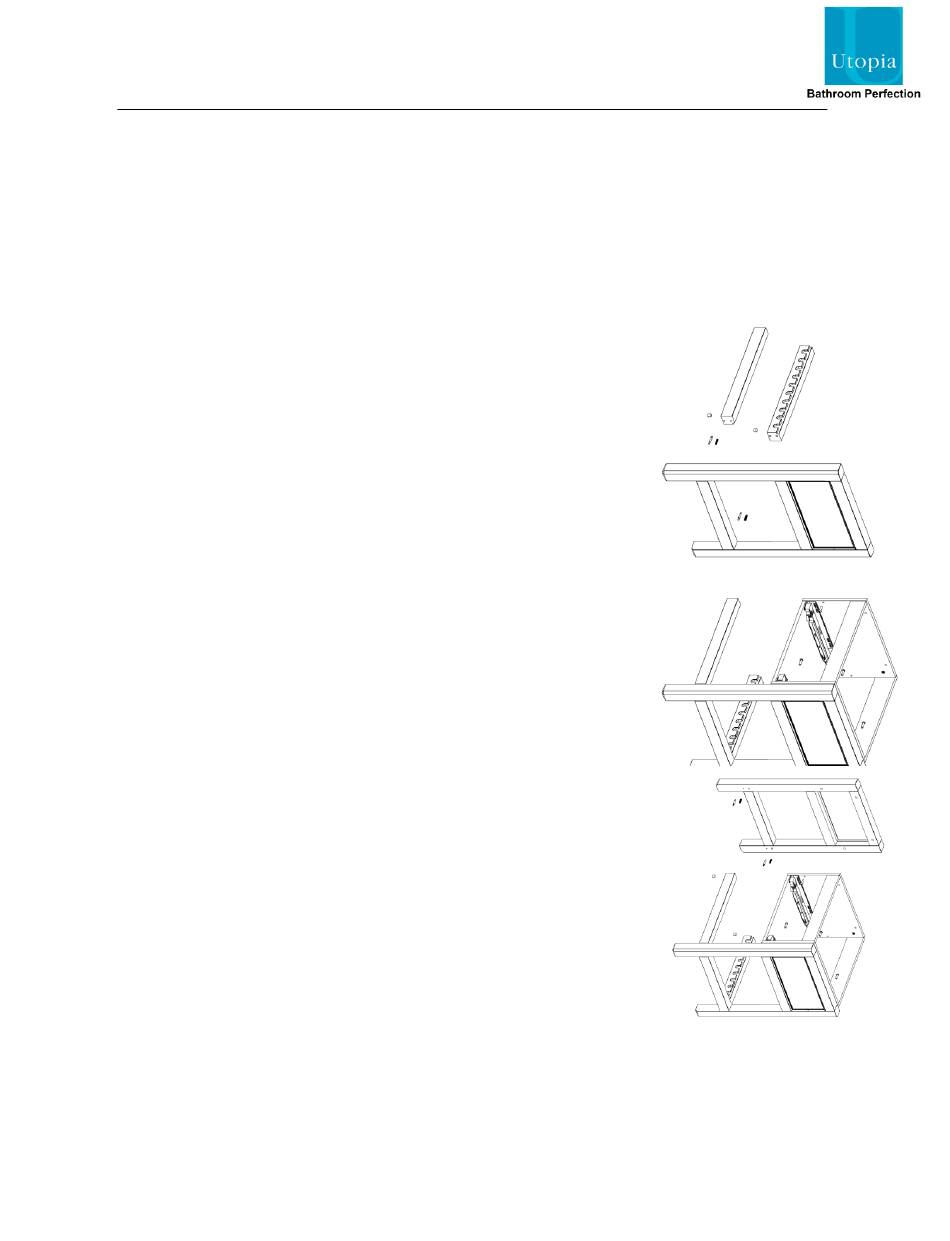

Unpack the components. The drawer unit and legs are supplied in
separate packaging. Remove the drawer box by pulling the drawer
fully out and lifting it upwards.
Place a dust sheet flat on the floor to protect the unit during assembly.
Place the right-hand leg section flat on the floor. Using a crosshead
screwdriver, screw a metal dowel screw into each leg section. Push
a wooden dowel into each of the corresponding pre-drilled holes.
Push the towel rail supports onto the leg section over the screws and
dowels. Place a cam into the base of each of the towel rail supports
and tighten with a screwdriver.
Place the drawer unit onto the right-hand leg section. Using a
crosshead screwdriver, screw four supplied bolts through the
pre-drilled holes in the drawer unit into the threaded inserts in the
leg section.
Screw a metal dowel screw into the opposite end of each of the
towel rail supports. Push a wooden dowel into each of the
corresponding pre-drilled holes.
Place the left-hand leg section onto the towel rail supports over
the screws and dowels. Insert a cam into each of the towel rail
supports and tighten with a screwdriver.
Using a crosshead screwdriver, screw four supplied bolts through
the pre-drilled holes in the drawer unit into the threaded inserts in
the left-hand leg section.
