Installation Guide
Halo Wall-Hung Washbasin Unit
Important Information
Read the instructions carefully.
Check the product for any signs of damage and remove any protective film.
It is recommended that this product is fitted by a suitably qualified Part P registered
electrician in accordance with current IEE & Building Regulations.
It is the installer's responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
Care should be taken when drilling walls to avoid any hidden wires or pipes.
To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
The light source in this luminaire is not replaceable. When the light source reaches its
end of life, the whole luminaire must be replaced.
The terminal block used to connect the leads to the electrical supply can be of either the
screw- or screw-less type and should be rated at 240V 6A with 4 terminals. The cable
tails do not need to be crimped when connected to the terminal block.
The driver can be screwed to the internal top rail of the cabinet or left to hang in the void
between the cabinet and the wall.
This product should be used only with a mains supply that is protected by a 30mA
Residual Current Device.
This product is IP20 Rated and is only suitable for installation in Outside Zones in a
bathroom. It is not suitable to be fitted in zones 0, 1 or 2.
Connection to Mains Electrics
Turn off the electrical supply.

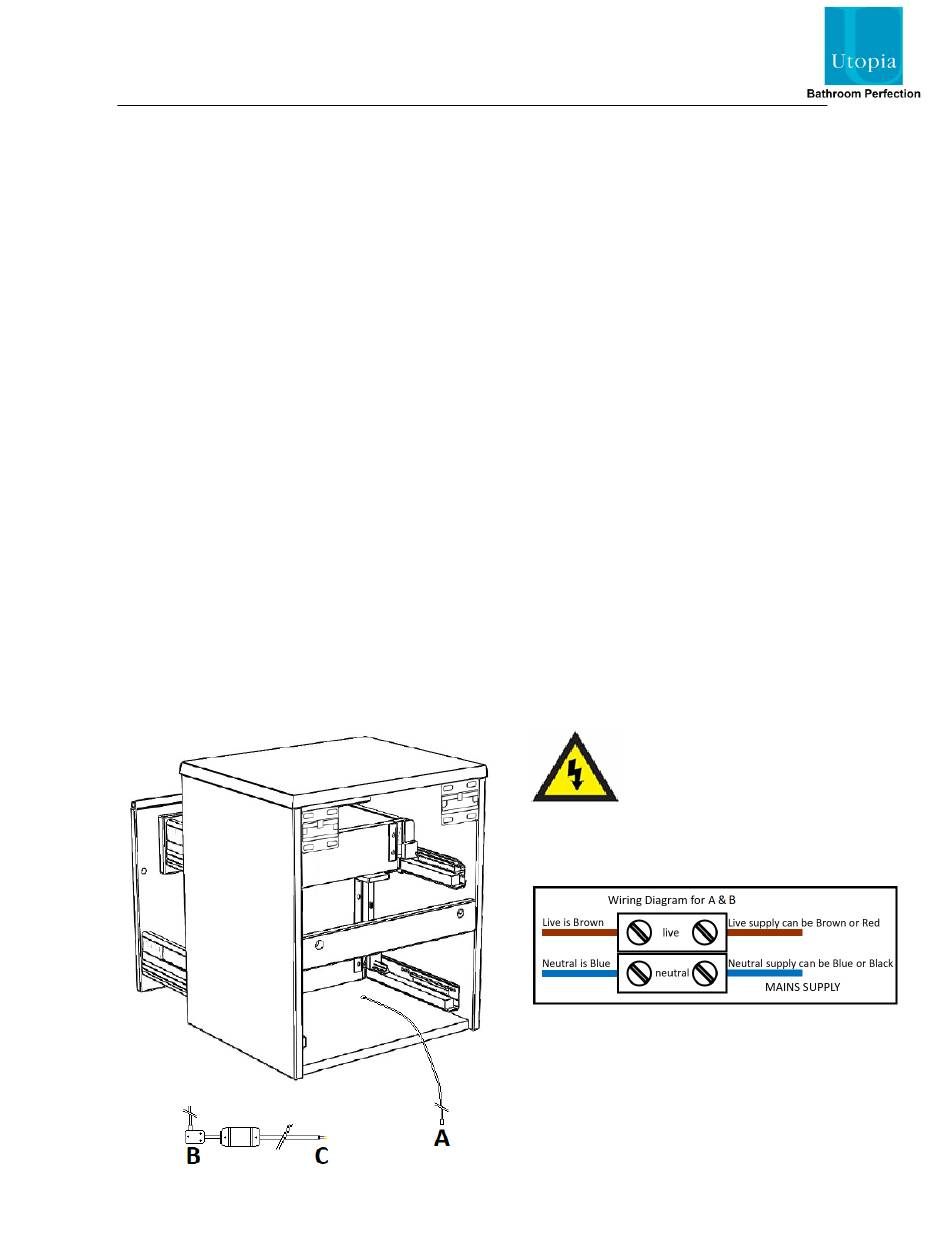

Connect the driver cable for the internal cabinet light to the electrical supply in the
bathroom (A). it is recommended that this light is connected to a constant electrical feed.
Connect the driver cable for the under-cabinet light to the electrical supply in the
bathroom (B). It is recommended that this light is connected to a separate switched feed
or to a room motion sensor.
Turn the electrical supply back on and check that the lights function as required.
WARNING
RISK OF ELECTRIC SHOCK
Turn off Mains Electric prior to commencing
work.
