Utopia Downton Installation Manual

Utopia Downton Installation Manual

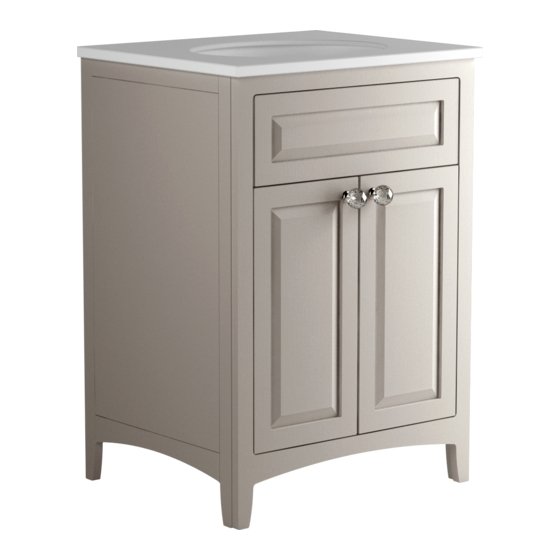

Freestanding washbasin unit

Advertisement

Quick Links

Installation Guide
Downton Freestanding Washbasin Unit
Important Information
Read the instructions carefully.
Ensure product contents are complete.
Check the product for any signs of damage and remove any protective film.
It is recommended that a technically competent installer undertakes installation.
It is the installer's responsibility to carry out a thorough assessment of the installation
environment (i.e. wall type/structure and the combined weight of the cabinet and
basin) and use appropriate fixings.
Care should be taken when drilling to avoid any hidden wires or pipes.
If the unit/panels are to be trimmed, a fine-toothed saw should be used. Ensure that
the room is well ventilated and that any cut edges are sealed with PVA glue or
silicone sealant to prevent water ingression.
Installation
Secure the unit to the wall by drilling through the back
rail and using suitable fixings for the wall type.
Infill panel
There is the option to fit a supplied infill panel. This
should be secured in place using double-sided tape
(not supplied) or fixed in place with screws. Ensure that
the length of screw is suitable for the thickness of the
infill panel and the cabinet legs.
Door hinge adjustment
To square the door against the cabinet, turn screws
A until adjusted as required.
To adjust the door closer to or further away from the
cabinet, turn screws B.
To adjust the door vertically, slacken screws C. Re-tighten
once the door is adjusted as required.
To remove the door hinges from the cabinet, press button D.
To remove the door hinges from the door, remove screws E.
Care & Maintenance
Furniture should be regularly dusted with a soft cotton or micro-fibre cloth. For more
thorough cleaning, occasionally wipe your furniture with a soft cloth dampened with a
mild detergent solution. Surfaces should be thoroughly dried with a lint free cloth to
prevent watermarks. Under no circumstances should solvent cleaning agents, bleach or
abrasive cleaning agents or cloths be used. Spills should be removed immediately using
a clean cloth. All bathroom furniture will deteriorate through prolonged periods of
exposure to high levels of condensation so bathrooms must be adequately ventilated
using suitable extraction. Failure to ensure adequate ventilation may invalidate your
guarantee.
