CHAIRMAN UNIT
- Controller 1 unit can be connected and used with Delegate Unit 46EA.
However please separate and connect Delegate 23EA because D-Sub connector 2EA are attached to controller.

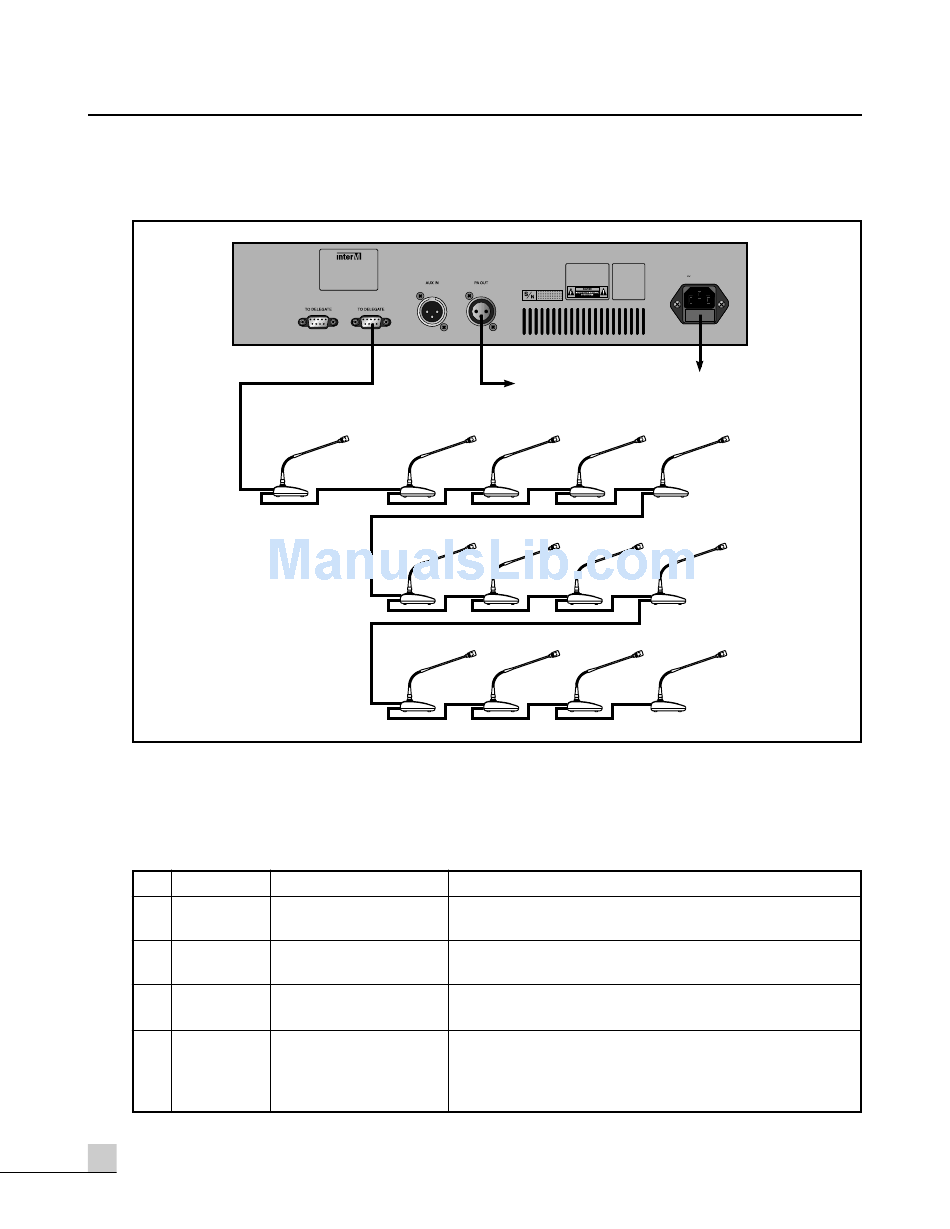

Application Models for Conference System

Application Models for Conference System
No. Model No.
1 IMS-9000
2 IMS-9000C
3 IMS-9000D
4 IMC-04
IMC-15
IMC-20
IMC-30
6
IMS-9000
MODEL NO. IMS-9000
MICROPHONE CONTROLLER
VOLTAGE: AC 230V, 50Hz
130W
MADE IN KOREA
Description
Microphone Controller
Chairman Microphone
Delegate Microphone
Junction Cable
Junction Cable
Junction Cable
Junction Cable
CAUTION;
TO REDUCE THE CAUTION
RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER
TO REDUCE THE RISK
SERVICEABLE PARTS INSIDE. REFER
OF FIRE REPLACE
SERVICING TO QUALIFIED SERVICE
AVIS; ONLY WITH SAME
PERSONNEL. RISQUE DE
CHOC ELECTRIQUE NE PAS OUVRIR. TYPE FUSE.
UTILISER UN FUSIBLE
DE RECHANG DE
MEME TYPE.
TO MIXER LINE INPUT
OR POWER AMP
Application
Operates and Controls the system, supplies the
chairman and delegate unit's power and extra functions.
Used as the priority microphone the Chairman's unit has
control over the other microphones during use.
A basic microphone unit which can be muted by the
Chairmans microphone.
9 pin D-Sub type cable used to connect the system
components together, Microphone units are supplied
with 4m cable as standard, 15m, 20m, and 30m cables
available as an extra option.
