Connecting Devices (continued)
1. Mount and connect Devices in a daisy-chain fashion using the orange M12 cables. They can be installed in
any order. (NOTE: If purchased as a -KIT, the Devices will be supplied pre-mounted and connected)
2. Hand tighten M12 cable connections, then tighten two more clicks using wrenches.
3. Plumb compressed air lines and fluid lines for pumps and valves as necessary [see below]
*See Appendix for IVX Sensor Integration

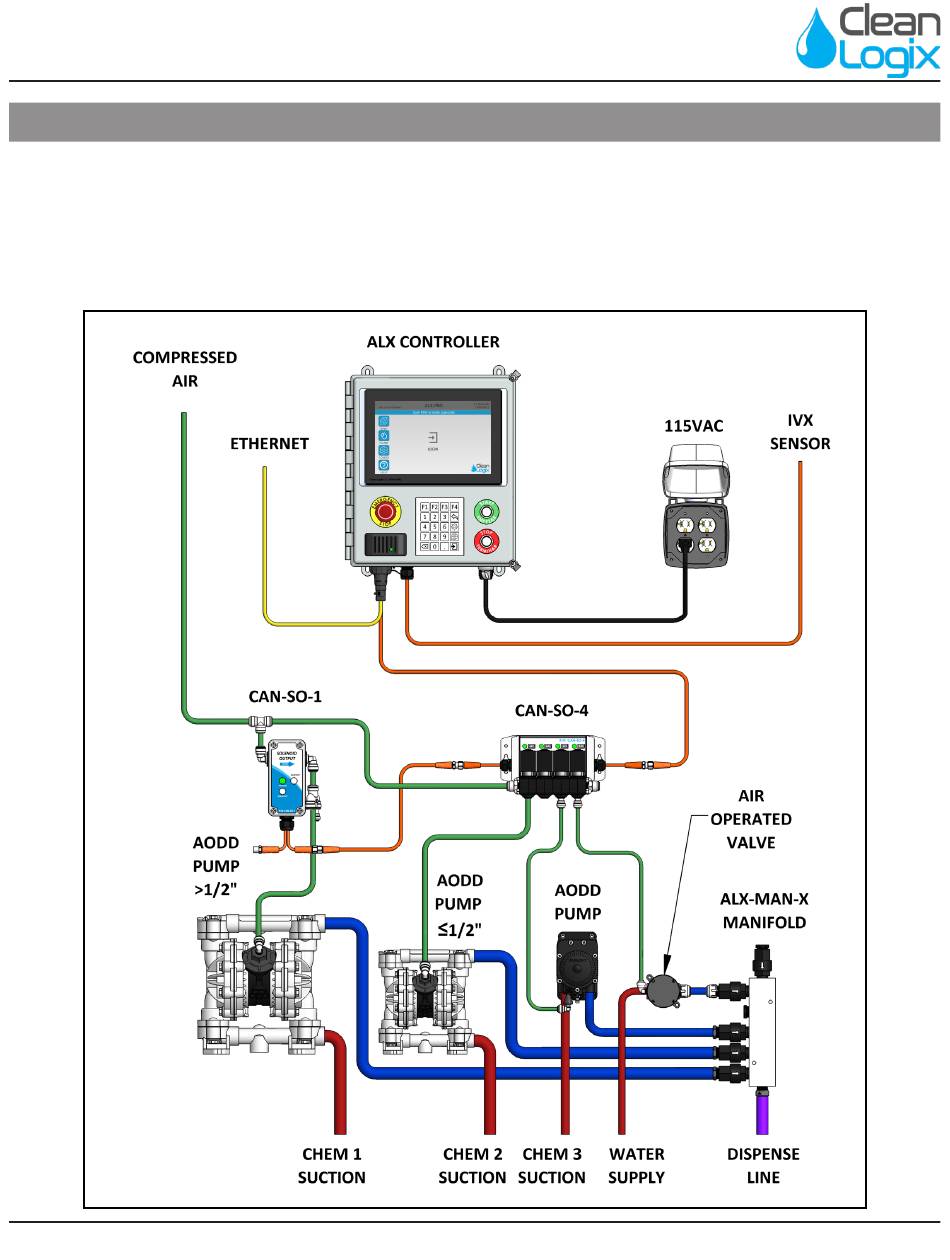

Installation Example:
*
