Appendix D - Network Configuration
Network Configuration settings are available for units
to be integrated into a facility's existing network, via
Ethernet or WiFi sources. To connect and configure
the unit for either option:
1. Power down the system via the power switch on
the bottom of the enclosure and unplug the unit.
2. Open the enclosure and remove FUSE F2 (for use
with the CELL-POE) as shown in [Figure 34.1].
FUSE & WIRE LOCATIONS
3. Using the included sealed ethernet connector,
connect a Cat5e cable (or similar) to the ALX-PRO.
4. Login to the unit as an admin level user.
5. Navigate to Config screen to view Network
Settings.
6. Enter the information as necessary for the plant
network to be configured to.
7. Click Apply to save changes and enable
networking.
Page 32 of 33 ALX-PRO Manual V5

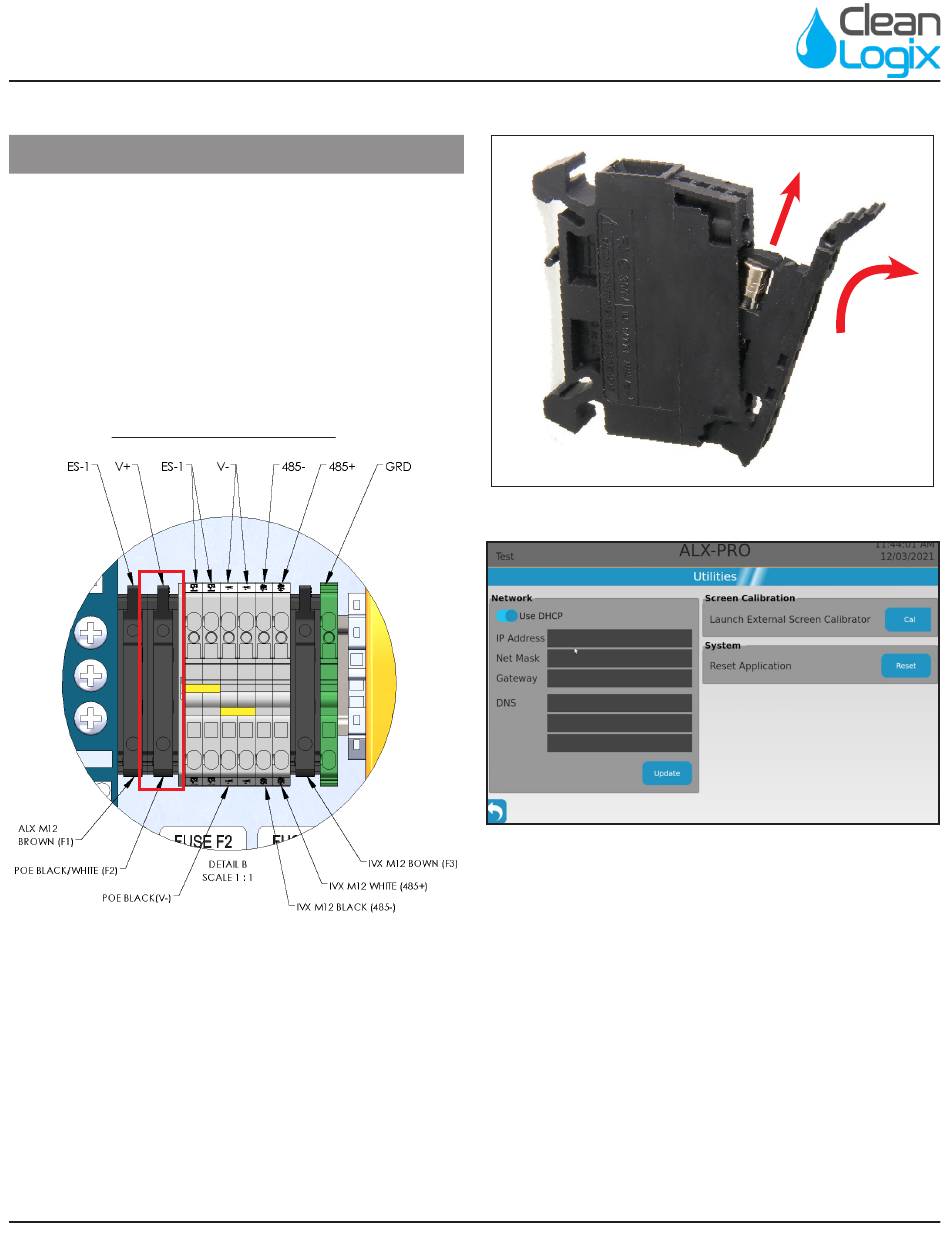

Fig 32.1: Opening fuse holder and removing fuse
Fig 32.2: Network utility settings
Updated: 02/22/2022
