USER MANUAL: ALX-PRO
READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT
Configuration (cont.)

Manifolds

1. From the configuration page select Pumps
2. The left sidebar will display a list of all existing
manifolds.
3. Select a manifold from the list to display its details
• Name: Text identifier for manifold. Used in
various configuration and operation screens as
well as reports.
• Color Selection: Visual reference for manifold,
used in configuration and operation screens.
Does not affect performance or functions.
• Scale: For weight-based units only. Identifies
whether manifold will use a scale or not
for dispenses. Connected scales will appear
available for selection.
• Water Configuration: Identifies whether water
is currently connected and configured for a
pump on this manifold. Required for water
flushes.
• Delete: to remove a manifold entirely select
the blue delete button at the bottom right.
Adding Manifolds
1. Add a new manifold by clicking Add in the
Manifolds Settings screen, at the bottom of the
manifold list.
2. Give the Manifold a name.
3. Select the color to be displayed with this manifold.
4. If the manifold will use a scale for weight based
dispenses, select it from the list.
NOTE: If the scale is not listed, it will need to
be added and configured (see page 13)
5. When finished, select the green checkmark to
save the Manifold and add it to the list.
Page 11 of 33 ALX-PRO Manual V5

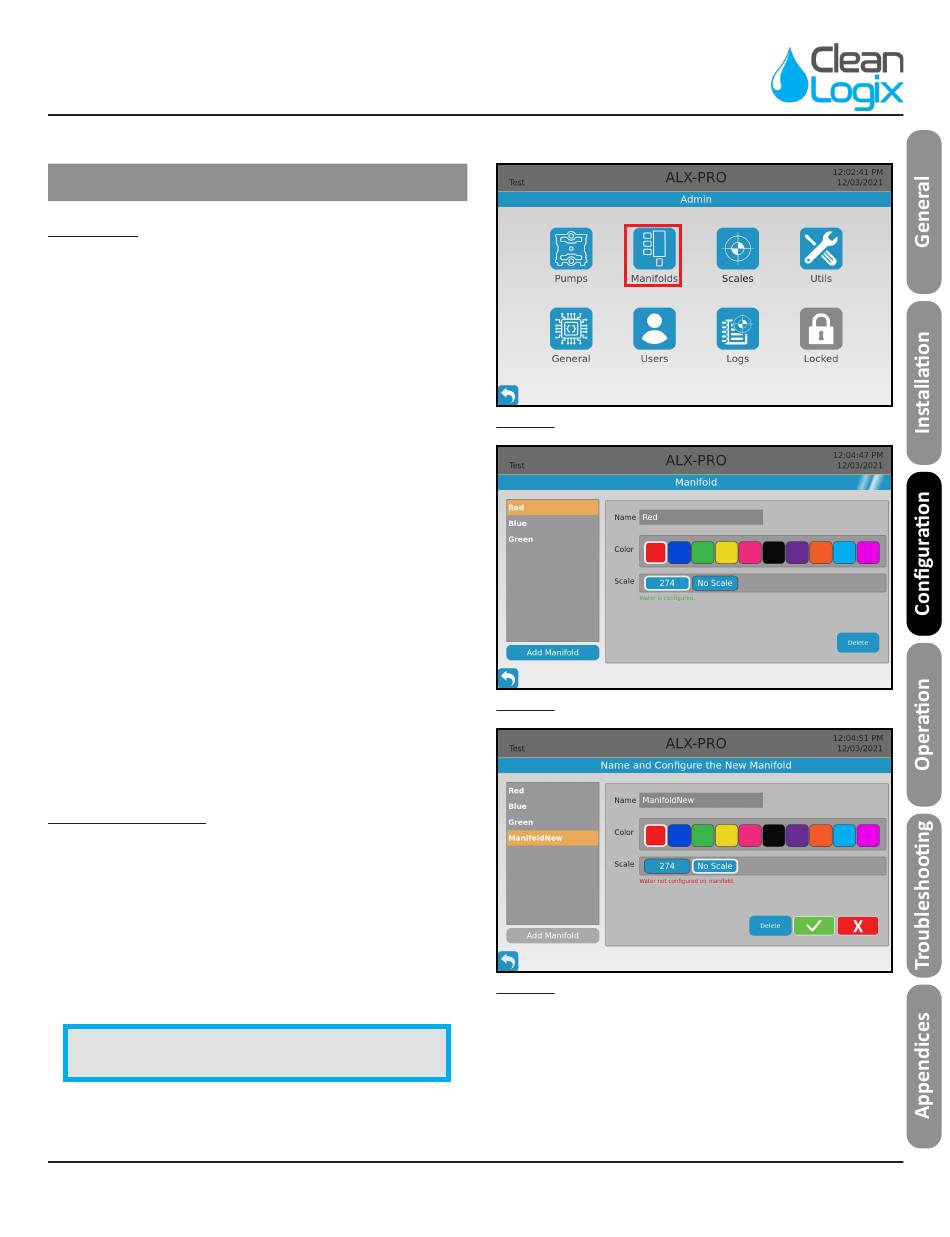

Fig. 10.1: Admin screen, Manifolds selection.
Fig. 10.2: Manifolds screen, active manifold selection.
Fig. 10.3: Manifolds screen, new manifold
Updated: 02/22/2022
