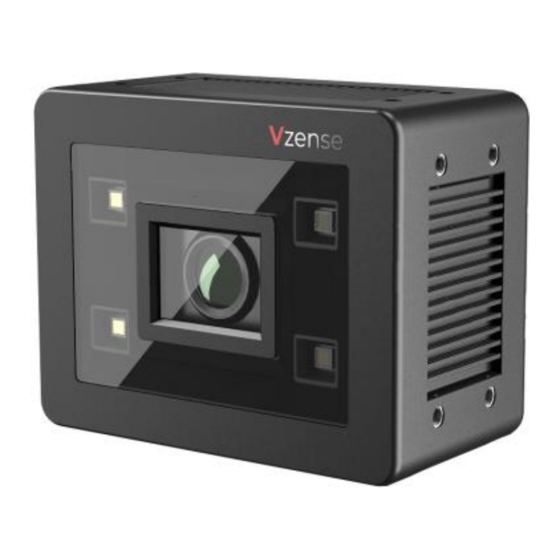

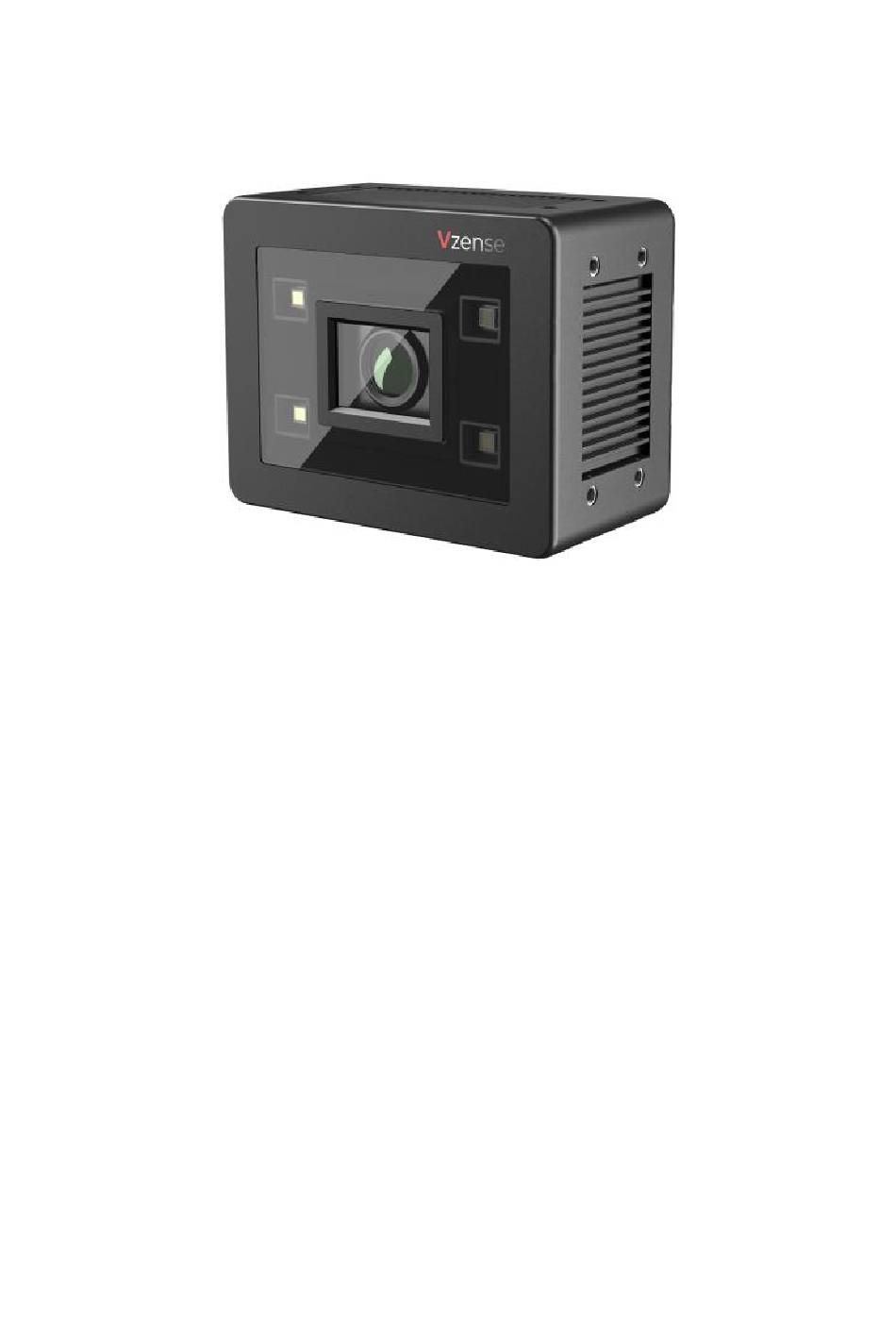

- Page 1 Vzense DCAM800 LITE ToF Camera User Manual...
-
Page 2: Table Of Contents
5.1.1 Direct Time of Flight ..............16 5.1.2 Range-gated Imaging ToF ............17 5.1.3 Continuous Waveform ToF ............17 5.1.4 Vzense ToF Principle ..............18 Noise Factors ..................19 5.2.1 Ambient Light ................19 5.2.2 Multipath Propagation ..............19 5.2.3 Reflectivity of the Target ............... - Page 3 8.5.1 Mode switch ................. 33 8.5.2 Range change ................33 WDR ...................... 34 DCAM800 LITE Accessories and Package ............36 Customization Service ................37 Appendix ......................... 37 ROHS Declaration .................... 37 Eye Safety Declaration ..................37 Reliability Declaration ..................37...
-
Page 4: General Information
1 General Information The purpose of this document is to familiarize the customer with the correct operation of the Vzense ToF Camera. This document provides important information about the camera’s features, hardware specification, safe use of the camera, and installation procedures. -
Page 5: Precautions
2 Precautions Safe Usage Instructions DANGER Electric Shock Risk Non-standard and improper power supplies may result in fire and electric shock. You must confirm the camera power supply used that meets the Safety Extra Low Voltage(SELV) and Limited Power Supply (LPS) requirements. CAUTION Invisible Radiation This camera uses laser to work, improper use may damage the eye. -
Page 6: Temperature
To avoid damaging the camera and to achieve best performance, please observe the maximum and minimum housing temperatures in Section 3.1 3 Specifications and Requirement General Specifications Specification Vzense DCAM800 Lite Technology ToF (Time-of-flight) Depth Camera Depth Sensor Resolution and Frame 640 x 480(VGA)@30FPS... -
Page 7: Electrical Specifications
Operation System Windows 7/8/10, Android, Linux Cooling Passive, no fan Certification FCC/CE/FDA Eye safety Class 1 Electrical Specifications 3.2.1 Recommended Operating Conditions Parameter Symbol Conditions Min Typ. Units DCjack USB2.0 4.75 Digital I/O Vout Work (Exposure_timing) mode Digital I/O (Ext_Trigger) RS232 Operating Temperature °... - Page 8 Parameter Symbol Conditions Typ. Units DCjack -0.3 USB2.0 -0.3 Digital I/O -0.3 (Ext_Trigger) RS232 -13.2 13.2 Operating Temperature ° C...
-
Page 9: Mechanical Specifications
Mechanical Specifications This drawing contains information about the dimensions and user mounting location of the ToF Camera. Fig. 1: ToF Camera Dimensions Unit: mm... -
Page 10: Working Condition Requirements
64-bit Windows 7/10 (recommended) Linux (x86, x64) Android 5.0 or above Vzense ToF Driver The Vzense ToF Driver software is available for Windows, Linux and Android operating systems and includes the following: SDK code Sample code ... -
Page 11: Coordinate Of The Camera System
The CCS data can switch to the WCS data using the camera internal parameters. Fig. 3: Origin of the Coordinate System Meshlab and CloudCompare tools are recommended to analyze the point cloud data saved by Vzense software or SDK method. -
Page 12: Interface With Host
4 Interface with Host DCAM800 Lite ToF Camera is equipped with Type-B, RJ45 connector, DC Jack, LED,6pin connector at the back of its housing as shown in below figure. For more information about pin assignments and connector types, see the following sections. - Page 13 Direction Designation Description INPUT RX232-RXD RX232 Receive(rx)Data OUTPUT RX232-TXD RX232 Transmit(tx)Data INPUT Ext_Trigger External trigger input（3.3V-20V） Exposure_timing OUTPUT Control signal output 1 System ground INPUT 12V power supply input Hardware Trigger Function Hardware trigger mode is available only when the camera works at slave mode, in slave mode the camera will wait for the hardware trigger signal on Ext_Trigger.
-
Page 14: 100M Lan Ethernet Connector
100M LAN Ethernet connector The camera supports 100M network transmission. Type B USB2.0 Connector The camera supports Type B-USB 2.0 transmission. LED indication An LED locates in the back side of the camera, LED animation indicates the camera status. The LED animation table is shown as below: Power off: limbo：... -
Page 15: Principle Of Time Of Flight
Ethernet Mode: Broadcast: 200ms 200ms Connected: 200ms 2800m Upgrading: 5 Principle of Time of Flight Scope of remote sensing technology · Presence or proximity detection, where the absence or presence of an object in a general area is the only information that is required (e.g., for security applications). This is the simplest form of remote sensing;... -
Page 16: Direct Time Of Flight
5.1.1 Direct Time of Flight In the direct time-of-flight measurement method, a discrete pulse is emitted and one or several timers are used to measure the time difference between the emitted pulse and the return echo, based on threshold detection. This time difference can be directly converted to a distance, based on the following equation:... -
Page 17: Range-Gated Imaging Tof
The difficulty in implementing the direct time-of-flight measurement method resides in the time intervals to be measured. In order to resolve a distance to centimeter-level accuracy, the required accuracy for the timers is 67 ps. Implemented in digital logic, this would require a 15 GHz clock speed, which is obviously not practical. Therefore, various time-to-digital conversion methods are typically used. -
Page 18: Vzense Tof Principle
5.1.4 Vzense ToF Principle Vzense DCAM800 Lite product principle is based on range-gated imaging ToF solution, and the sensor inside is based on Panasonic CCD sensor MN34906. -
Page 19: Noise Factors
A strong ambient light may affect the accuracy and precision of the depth data, the Vzense DCAM800 Lite is suggested to in user below 50K LUX ambient light. 5.2.2 Multipath Propagation Based on the principle of ToF, Multipath effect may happen when the light reflected more one once. -
Page 20: Scattering Effect
5.2.4 Scattering Effect Scattering light effect is a noise factor to ToF products, it is caused by multiple reflection inside the lens of camera or the cover of camera. To eliminate the scattering light effect, you should: 1. Keep the cover glass of the camera clean; 2. -
Page 21: Installation
The steps are as below: 1. Mount the camera in an appropriate fixture, e.g. a camera bracket; 2. Connect the DCAM800 Lite ToF camera to the host processor with the Ethernet cable(VZENSE-LAN-CAT5e-CABLE), the standard RJ45 socket locates at the back of the DCAM800 Lite ToF camera;... -
Page 22: Standalone Mode Installation
RS232 or EXT_OUTPUT pin. NRE fee shall be charged if you need Vzense team to do software or application customization. In this mode, an optional cable (VZENSE-MFP-6P-B) shall be used in this mode. -
Page 23: Software Installation
Software Installation 6.2.1 How to get Download or clone SDK project from our GitHub /Gitee: China：https://gitee.com/Vzense Oversea：https://github.com/Vzense Please chose the suitable version based on the product and system. Windows SDK, Linux SDK have different project repository. Download or clone uTool evaluation tool from our GitHub /Gitee: China：https://gitee.com/Vzense/UTool... -
Page 24: Product State Machine
Upgrade: product upgrade the firmware mode Software Command Set DCAM800 Lite support different work mode like depth_30, IR_30, depth&IR_30. Three default range: range0(0.35m~1.5m), range2(0.8m~4.4m), range5(1.2m~6.2m). User can use Frameviewer to try the different command or can use the APIs to control the camera. -
Page 25: Usb Connection
100M ethernet connection. USB Connection USB connect have high connection priority. If you connect the USB with PC, the socket can’t be discovery on the Ethernet. Ethernet Connection You can connect the camera to the host via either direct connection or DHCP connection. -
Page 26: Direct Connection
Range Customization By default, there are 3 different range modes calibrated for DCAM800 Lite, please see below table for more information: Range number Distance range Range 0 0.35m~1.5m... -
Page 27: Wide Dynamic Range
One range mode of the Vzense DCAM800 Lite camera can fulfill furthest distance be at most 5 times to nearest distance. For example, if the near limitation is 0.4m, then the furthest distance in this mode can reach about 2m. -
Page 28: Data Filtering
Flying pixel removing; IR Image Besides the depth image, Vzense DCAM800 Lite camera can also output a VGA resolution IR image. And the IR image is strictly timing synchronized with the depth image. Pixel to pixel mapping is also strictly aligned. -
Page 29: Camera Operation On Frameviewer
8 Camera Operation on Frameviewer Function Description 2D image show depth image colorize Camera hardware information show like SN, version Image store Depth 30 depth image in 30fps IR 30 IR image in 30fps Mode Switch Depth&IR 30 both depth and ir in 30fps see the detail in below Range Change Range 0-7... -
Page 30: Image Area
8.1.1 Image area Image area is the area of showing depth image, IR image. 8.1.2 Command and information area Frameviewer use CMD shell for camera control and information output. Like the image below: switch mode, change detect range, save 3D image and so on. -
Page 31: Connect Devices
Connect devices Frameviewer will auto-connect the device, and output the base information on the window. 2D view The display area can show different type image. -
Page 32: Depth Image
8.3.1 Depth Image Depth image is covert to a rainbow image for real distance showing. COLORMAP_RAIN 8bit Color_Map_Mi 16bit Color_Map_Ma Depth Image with color map: 8.3.2 IR Image... -
Page 33: Image Store
IR_30: IR image only in 30 fps. Depth&IR_30: depth and IR image all in 30 fps. 8.5.2 Range change DCAM800 Lite have 8 detect ranges in it, but by default, there are 3 different range modes calibrated, please see below table for more information: Range number... -
Page 34: Wdr
Please do NOT use uncalibrated modes, the measurement data will not be guaranteed. If you need other range mode requirement, you can ask Vzense team to do range customization, reasonable NRE fee will be charged. WDR mode can merge the multi-range image to extend the detect range. For example, if you want to get the distance from 0.35m to 4.4m, only one range mode... - Page 35 Depth image in range 2: Merged depth image in WDR mode...
-
Page 36: Dcam800 Lite Accessories And Package
Dual Head USB Type B Lockable Cable User Guide User Guide You can ask Vzense to do customization to the cable or adaptor for any reason, for example extending the cable length. Please do NOT use the accessories from other parts except Vzense Company, otherwise warranty will void. -
Page 37: Customization Service
Optional items need customer to pay for. 10 Customization Service Vzense team has rich experience in ToF product design and delivery, we welcome customer to send customization requirement besides the standard module. Reasonable NRE fee shall be charged depends on the requirement.
