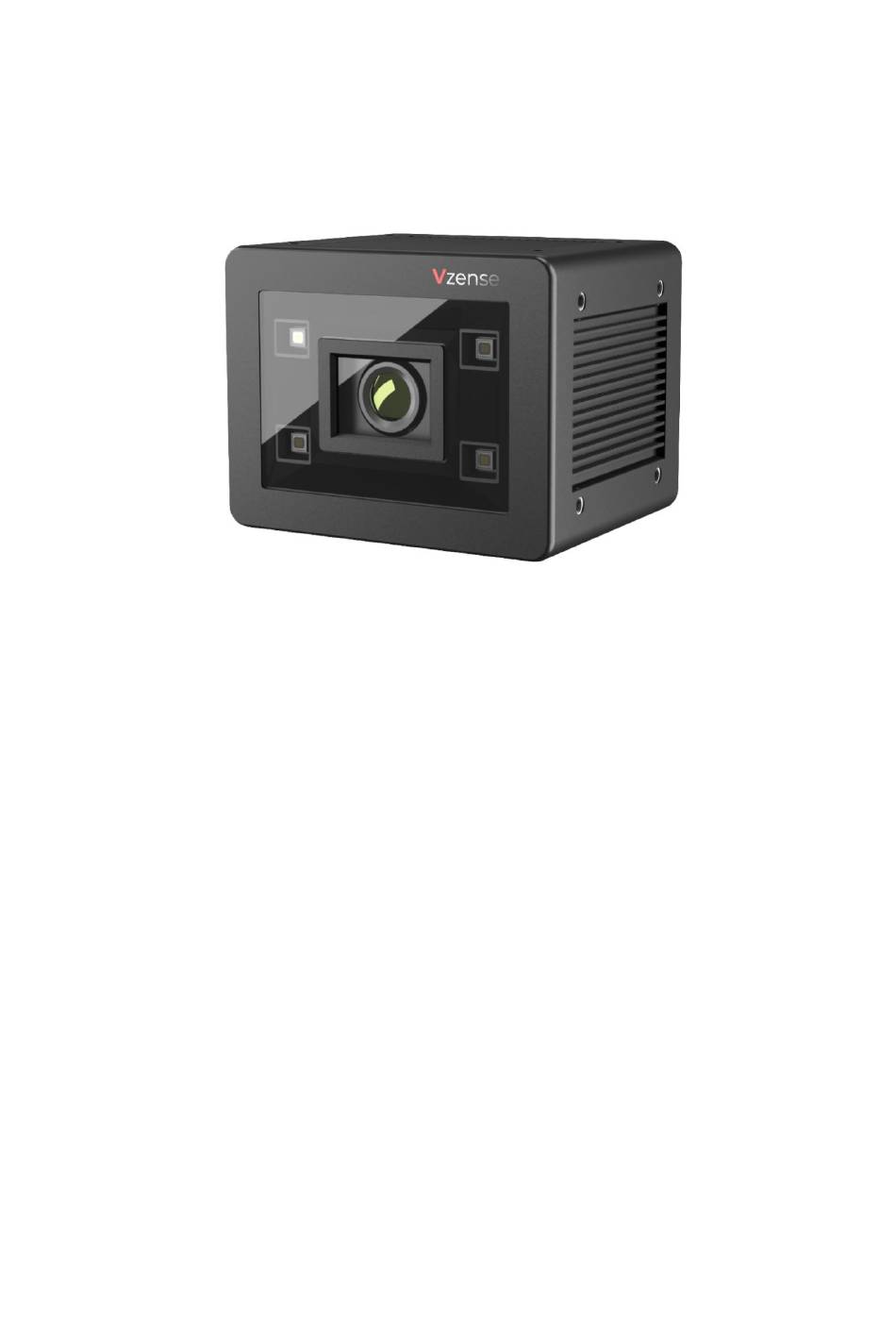

- Page 1 Vzense DCAM800 ToF Camera User Manual...
-
Page 2: Table Of Contents
5.1.1 Direct Time of Flight ..............18 5.1.2 Range-gated Imaging ToF ............19 5.1.3 Continuous Waveform ToF ............19 5.1.4 Vzense ToF Principle ..............20 Noise Factors ..................21 5.2.1 Ambient Light ................21 5.2.2 Multipath Propagation ..............21 5.2.3 Reflectivity of the Target ............... - Page 3 7.11.3 Exposure parameter modify ............37 7.12 Filters Switch..................38 7.13 WDR ....................38 DCAM800 Accessories and Package ............... 41 Customization Service ..................41 Appendix ......................... 41 ROHS Declaration .................... 41 Eye Safety Declaration ..................41 Reliability Declaration ..................41...
-
Page 4: General Information
1 General Information The purpose of this document is to familiarize the customer with the correct operation of the Vzense ToF Camera. This document provides important information about the camera’s features, hardware specification, safe use of the camera, and installation procedures. -
Page 5: Precautions
2 Precautions Safe Usage Instructions DANGER Electric Shock Risk Non-standard and improper power supplies may result in fire and electric shock. You must confirm the camera power supply used that meets the Safety Extra Low Voltage(SELV) and Limited Power Supply (LPS) requirements. CAUTION Invisible Radiation This camera uses laser to work, improper use may damage the eye. -
Page 6: Temperature
To avoid damaging the camera and to achieve best performance, please observe the maximum and minimum housing temperatures in Section 3.1 3 Specifications and Requirement General Specifications Specification Vzense DCAM800 Technology ToF (Time-of-flight) Depth Camera Depth Sensor Resolution and Frame 640 x 480(VGA)@30FPS... -
Page 7: Electrical Specifications
Software C/C++ SDK Operation System Windows 7/8/10, Android, Linux Cooling Passive, no fan Certification FCC/CE/FDA Eye safety Class 1 Electrical Specifications 3.2.1 Recommended Operating Conditions Parameter Symbol Conditions Min Typ. Units Supply voltage on VDD Digital I/O Work (EXT_Trigger/ mode Ω... -
Page 8: Absolute Maximum Ratings
3.2.3 Absolute Maximum Ratings This is a stress rating only and functional operation of the devices at those or any other conditions above those indicated in the operation listings of this specification is not promised. Exposure to maximum rating conditions for extended periods may affect device reliability Parameter Symbol... -
Page 9: Mechanical Specifications
Mechanical Specifications This drawing contains information about the dimensions and user mounting location of the ToF Camera. Fig. 1: ToF Camera Dimensions Unit: mm... -
Page 10: Working Condition Requirements
64-bit Windows 7/10 (recommended) Linux (x86, x64) Android 5.0 or above Vzense ToF Driver The Vzense ToF Driver software is available for Windows, Linux and Android operating systems and includes the following: SDK code Sample code ... -
Page 11: Coordinate Of The Camera System
The CCS data can switch to the WCS data using the camera internal parameters. Fig. 3: Origin of the Coordinate System Meshlab and CloudCompare tools are recommended to analyze the point cloud data saved by Vzense software or SDK method. -
Page 12: Interface With Host
Interface with Host DCAM800 ToF Camera is equipped with two M16 connectors at the back of its housing as shown in below figure. For more information about pin assignments and connector types, see the following sections. Fig. 4: Camera Connectors... - Page 13 External GND Pin Description Direction Designation Description INPUT 12-24V power supply input INPUT Ext_Trigger External trigger input（3.3V-24V） System ground INPUT Ext_INPUT Reserved for external input（3.3V-24V） CAN_H Positive signal of CAN BUS OUTPUT Ext_OUTPUT Reserved for external output CAN_L Negative signal of CAN BUS Exposure_timing OUTPUT Indicates the exposure timing System ground...
- Page 14 EXT_Trigger Start Exposure Start Exposure Camera Exposure The requirement to T1 should be from 10us to 1ms, a hardware debouncer circuit shall be considered on the EXT_Trigger line. Reserved External INPUT Pin An external INPUT pin, EXT_INPUT is reserved for advanced user, it can be functional with software customization applications.
-
Page 15: M16-8 Lan Ethernet Connector
In addition, POE (Power over Ethernet) module is included in the camera. Users can use POE as main power supply. The cable VZENSE-LAN-8P-A in the package shall be used if you want to get the data via M16-8 Ethernet connector. The M16-8 LAN Ethernet connector is a waterproof... -
Page 16: Led Indication
8pin IO pin definition Pin Designation Description Media Dependent TD0+ Interface[0], positive signal of differential pair Media Dependent TD0- Interface[0], negative signal of differential pair Media Dependent TD1+ Interface[1], positive signal of differential pair Media Dependent TD2+ Interface[2], positive signal of differential pair Media Dependent TD2-... -
Page 17: Principle Of Time Of Flight
Broadcast: Connected: Upgrading: 5 Principle of Time of Flight Scope of remote sensing technology · Presence or proximity detection, where the absence or presence of an object in a general area is the only information that is required (e.g., for security applications). This is the simplest form of remote sensing;... -
Page 18: Direct Time Of Flight
5.1.1 Direct Time of Flight In the direct time-of-flight measurement method, a discrete pulse is emitted and one or several timers are used to measure the time difference between the emitted pulse and the return echo, based on threshold detection. This time difference can be directly converted to a distance, based on the following equation:... -
Page 19: Range-Gated Imaging Tof
The difficulty in implementing the direct time-of-flight measurement method resides in the time intervals to be measured. In order to resolve a distance to centimeter-level accuracy, the required accuracy for the timers is 67 ps. Implemented in digital logic, this would require a 15 GHz clock speed, which is obviously not practical. Therefore, various time-to-digital conversion methods are typically used. -
Page 20: Vzense Tof Principle
5.1.4 Vzense ToF Principle Vzense DCAM800 product principle is based on range-gated imaging ToF solution, and the sensor inside is based on Panasonic CCD sensor MN34906. -
Page 21: Noise Factors
A strong ambient light may affect the accuracy and precision of the depth data, the Vzense DCAM 800 is suggested to in user below 50K LUX ambient light. 5.2.2 Multipath Propagation Based on the principle of ToF, Multipath effect may happen when the light reflected more one once. -
Page 22: Scattering Effect
1. Mount the camera in an appropriate fixture, e.g. a camera bracket; 2. Plug the M16-8 socket end of the Ethernet cable (VZENSE-LAN-8P-A) into the M16-8 LAN socket jack at the back of the camera, and plug the other RJ45 end into the Ethernet port of your host processor;... - Page 23 Power over Ethernet (POE) is a technology that lets network cables carry electrical power. For example, a digital security camera normally requires two connections to be made when it is installed: A network connection, in order to be able to communicate with video recording and display equipment.
- Page 24 Midspans are available as multi-port rack-mounted units or low-cost single-port injectors. For Vzense DCAM800 camera, the POE Switch or POE injector needs to support IEEE 802.3at-2009 standard also known as PoE+, which can provide up to 25.5W, otherwise the camera may not work well at long range mode.
-
Page 25: Standalone Mode Installation
CAN_BUS or EXT_OUTPUT pin. NRE fee shall be charged if you need Vzense team to do software or application customization. In this mode, an optional cable (VZENSE-MFP-10P-A) shall be used in this mode. -
Page 26: Software Installation
Software Installation 6.2.1 UTool Vzense UTool is ToF camera frame tool that can help user evaluate product. You can download it from our website: China：https://gitee.com/Vzense/UTool Oversea：https://github.com/Vzense/UTool Copy or download the application zip file and unzip it. Start the VzenseUTool.exe file. -
Page 27: Product State Machine
Upgrade: product upgrade the firmware mode Software Command Set DCAM800 support different work mode like depth_30, IR_30, depth&IR_30. Three default range: range0(0.35m~1.5m), range2(0.8m~4.4m), range5(1.2m~6.2m). User can use UTool to try the different command or can use the APIs to control the camera. -
Page 28: Direct Connection
The default IP address of the camera is 192.168.1.101, subnet mask 255.255.255.0 The user can change the default IP with the tool provided by Vzense team. The host IP has to be in the same network segment as the camera. -
Page 29: Features
Please do NOT use uncalibrated modes, the measurement data will not be guaranteed. If you need other range mode requirement, you can ask Vzense team to do range customization, reasonable NRE fee will be charged. One range mode of the Vzense DCAM800 camera can fulfill furthest distance be at most 5 times to nearest distance. -
Page 30: Data Filtering
Merge More Modes Into One DISTANCE RANGE UNIT MM This feature requires customization service for Vzense team, you can refer to Chapter 8 in this document for WDR mode experience. Data Filtering In the software SDK and UTool, we implemented data filtering to improve the depth data performance. -
Page 31: Ir Image
Flying pixel removing; IR Image Besides the depth image, Vzense DCAM800 camera can also output a VGA resolution IR image. And the IR image is strictly timing synchronized with the depth image. Pixel to pixel mapping is also strictly aligned. -
Page 32: Main Screen
Camera Operation on Vzense UTool Function Description 2D/3D image show depth image colorize Camera hardware information show like SN, version Image store Depth 30 depth image in 30fps IR 30 IR image in 30fps Mode Switch Depth&IR 30 both depth and ir in 30fps... -
Page 33: Control Area
7.6.2 Control area Control area is working for camera control: switch mode, change detect range, 2D-3D display, filters enable or disable, pulse count or gamma gain get/set. 7.6.3 Information area Information area show some camera information like SN, firmware version. Connect devices ... -
Page 34: View
2D view The display area can show different type image. 7.8.1 Depth Image Change mode to depth mode: Chose depth image show enable: Adjust color map(optional): COLORMAP_RAIN 16bit 8bit Color_Map_Mi Color_Map_Ma... -
Page 35: Ir Image
Depth Image with color map: 7.8.2 IR Image Change mode to IR mode: Chose depth image show enable: 3D view Make sure depth image alive:... -
Page 36: Save Image
Chose point cloud show enable: 7.10 Save Image : click button will save the current showing image. The save image will store in “SaveImage” folder. -
Page 37: Camera Control
IR_30: IR image only in 30 fps. Depth&IR_30: depth and IR image all in 30 fps. 7.11.2 Range change DCAM800 have 8 detect ranges in it, but by default, there are 3 different range modes calibrated, please see below table for more information: Range number... -
Page 38: Filters Switch
Vzense FAE first. Gamma gain: the IR image gamma gain value that can be adjust brightness of IR image. The maximum is 1023. 7.12 Filters Switch All of these filters are the ToF image filter. The default value is the recommended choice. - Page 39 Adjust WDR merge threshold(optional): Depth image in range 0: Depth image in range 2:...
- Page 40 Merged depth image in WDR mode...
-
Page 41: Dcam800 Accessories And Package
M16-8 pin,5m,cate5e User Guide User Guide You can ask Vzense to do customization to the cable or adaptor for any reason, for example extending the cable length. Please do NOT use the accessories from other parts except Vzense Company, otherwise warranty will void.
