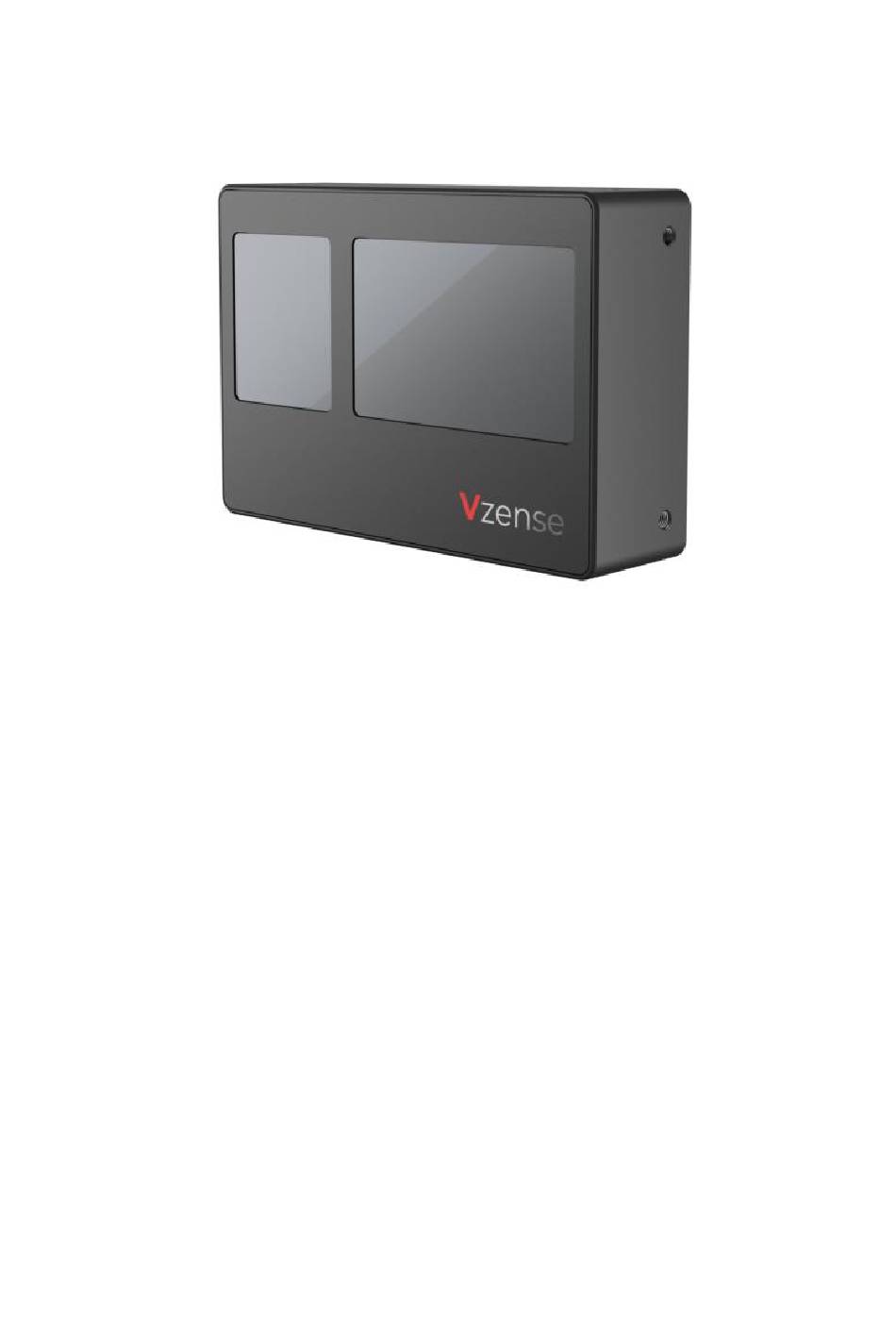

Vzense DCAM500 ToF Camera
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCAM500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vzense DCAM500

  • Page 1 Vzense DCAM500 ToF Camera User Manual...
  • Page 2: Table Of Contents

    5.1.1 Direct Time of Flight ..............15 5.1.2 Range-gated Imaging ToF ............16 5.1.3 Continuous Waveform ToF ............17 5.1.4 Vzense ToF Principle ..............18 Noise Factors ..................19 5.2.1 Ambient Light ................19 5.2.2 Multipath Propagation ..............19 5.2.3 Reflectivity of the Target ...............
  • Page 3 8.5.1 Mode switch ................. 32 8.5.2 Range change ................32 WDR ...................... 33 DCAM500 Accessories and Package ............... 35 10 Customization Service ..................36 Appendix ......................... 36 ROHS Declaration .................... 36 Eye Safety Declaration ..................36 Reliability Declaration ..................36...
  • Page 4: General Information

    1 General Information The purpose of this document is to familiarize the customer with the correct operation of the Vzense ToF Camera. This document provides important information about the camera’s features, hardware specification, safe use of the camera, and installation procedures.
  • Page 5: Precautions

    2 Precautions Safe Usage Instructions DANGER Electric Shock Risk Non-standard and improper power supplies may result in fire and electric shock. You must confirm the camera power supply used that meets the Safety Extra Low Voltage(SELV) and Limited Power Supply (LPS) requirements. CAUTION Invisible Radiation This camera uses laser to work, improper use may damage the eye.
  • Page 6: Temperature

    To avoid damaging the camera and to achieve best performance, please observe the maximum and minimum housing temperatures in Section 3.1 3 Specifications and Requirement General Specifications Specification Vzense DCAM500 Technology ToF (Time-of-flight) Depth Camera Depth Sensor Resolution and Frame 640 x 480(VGA)@30FPS...
  • Page 7: Electrical Specifications

    Operation System Windows 7/8/10, Android, Linux Cooling Passive, no fan Certification FCC/CE/FDA Eye safety Class 1 Electrical Specifications 3.2.1 Recommended Operating Conditions Parameter Symbol Conditions Min Typ. Units 6pin-connector power USB2.0 4.75 Digital I/O Vout Work (Exposure_timing) mode Digital I/O (Ext_Trigger) RS232 Operating Temperature...
  • Page 8 Parameter Symbol Conditions Typ. Units 6pin-connector power USB2.0 -0.3 Digital I/O -0.3 (Ext_Trigger) RS232 -13.2 13.2 Operating Temperature ° C...
  • Page 9: Mechanical Specifications

    Mechanical Specifications This drawing contains information about the dimensions and user mounting location of the ToF Camera. Fig. 1: ToF Camera Dimensions Unit: mm...
  • Page 10: Working Condition Requirements

     64-bit Windows 7/10 (recommended)  Linux (x86, x64)  Android 5.0 or above Vzense ToF Driver The Vzense ToF Driver software is available for Windows, Linux and Android operating systems and includes the following:  SDK code   Sample code ...
  • Page 11: Interface With Host

    Vzense software or SDK method. 4 Interface with Host DCAM500 ToF Camera is equipped with Type-B, LED,6pin connector at the back of its housing as shown in below figure. For more information about pin assignments and connector types, see the following...
  • Page 12: 6Pin Power And Signal Connector

    Fig. 4: Camera Connectors 6pin power and signal Connector The 6pin connector includes the one physical input signals and one physical output signal, RS232 signal and power supply lines. The pin assignments and pin numbering for the receptacle are as shown in below table.
  • Page 13: Type B Usb2.0 Connector

    System ground INPUT 5-9V power supply input Hardware Trigger Function Hardware trigger mode is available only when the camera works at slave mode, in slave mode the camera will wait for the hardware trigger signal on Ext_Trigger. The EXT_Trigger signal is to driver the MOSFET, External input trigger signal voltage should range 3.3V-20V.
  • Page 14: Led Indication

    LED indication An LED locates in the back side of the camera, LED animation indicates the camera status. The LED animation table is shown as below: Power off: limbo: USB Mode: 200ms 2800m Upgrading:...
  • Page 15: Principle Of Time Of Flight

    5 Principle of Time of Flight Scope of remote sensing technology · Presence or proximity detection, where the absence or presence of an object in a general area is the only information that is required (e.g., for security applications). This is the simplest form of remote sensing; ·...
  • Page 16: Range-Gated Imaging Tof

    converted to a distance, based on the following equation: The difficulty in implementing the direct time-of-flight measurement method resides in the time intervals to be measured. In order to resolve a distance to centimeter-level accuracy, the required accuracy for the timers is 67 ps. Implemented in digital logic, this would require a 15 GHz clock speed, which is obviously not practical.
  • Page 17: Continuous Waveform Tof

    By measuring the energy received in successive integration intervals, it is possible to extrapolate the distance between the sensor and the measured object, based on the ratio of energy received in the different intervals. The difficulty with range-gated imaging is that CCD and CMOS imagers have a limited dynamic range;...
  • Page 18: Vzense Tof Principle

    5.1.4 Vzense ToF Principle Vzense DCAM500 product principle is based on range-gated imaging ToF solution, and the sensor inside is based on Panasonic CCD sensor MN34906.
  • Page 19: Noise Factors

    A strong ambient light may affect the accuracy and precision of the depth data, the Vzense DCAM500 is suggested to in user below 50K LUX ambient light. 5.2.2 Multipath Propagation Based on the principle of ToF, Multipath effect may happen when the light reflected more one once.
  • Page 20: Scattering Effect

    5.2.4 Scattering Effect Scattering light effect is a noise factor to ToF products, it is caused by multiple reflection inside the lens of camera or the cover of camera. To eliminate the scattering light effect, you should: 1. Keep the cover glass of the camera clean; 2.
  • Page 21: Installation

    ) into the type B jack at the back of the camera, and plug the other type A end into the USB port of your host processor; 3. Insert the cable (VZENSE-MFP-6P-B) of the power supply adaptor into the 5-9V at the back of the camera;...
  • Page 22: Standalone Mode Installation

    You can contact the Vzense team (info@vzense.com) for the external powered USB HUB. 6.1.3 Standalone Mode Installation This mode is for advanced users who require customization to the software and application, the applications can run on the processor inside the camera, and output the result data by either RS232 or EXT_OUTPUT pin.
  • Page 23: Software Installation

    Software Installation 6.2.1 How to get Download or clone SDK project from our GitHub /Gitee: China:https://gitee.com/Vzense Oversea:https://github.com/Vzense Please chose the suitable version based on the product and system. Windows SDK, Linux SDK have different project repository. Download or clone uTool evaluation tool from our GitHub /Gitee: China:https://gitee.com/Vzense/UTool...
  • Page 24: Product State Machine

    User can use Frameviewer to try the different command or can use the APIs to control the camera. The details please reference the SDK documents. USB Connection DCAM500 use UVC profile to transfer image and control command. 7 Features Multiple Camera Synchronization...
  • Page 25: Range Customization

    Please do NOT use uncalibrated modes, the measurement data will not be guaranteed. If you need other range mode requirement, you can ask Vzense team to do range customization, reasonable NRE fee will be charged. One range mode of the Vzense DCAM500 camera can fulfill furthest distance be at most 5 times to nearest distance.
  • Page 26: Data Filtering

    Merge More Modes Into One DISTANCE RANGE UNIT MM This feature requires customization service for Vzense team, you can refer to Chapter 8 in this document for WDR mode experience. Data Filtering In the software SDK and Frameviewer, we implemented data filtering to improve the depth data performance.
  • Page 28: Camera Operation On Frameviewer

    8 Camera Operation on Frameviewer Function Description 2D image show depth image colorize Camera hardware information show like SN, version Image store Depth 30 depth image in 30fps IR 30 IR image in 30fps Mode Switch Depth&IR 30 both depth and ir in 30fps see the detail in below Range Change Range 0-7...
  • Page 29: Image Area

    8.1.1 Image area Image area is the area of showing depth image, IR image. 8.1.2 Command and information area Frameviewer use CMD shell for camera control and information output. Like the image below: switch mode, change detect range, save 3D image and so on.
  • Page 30: Connect Devices

    Connect devices Frameviewer will auto-connect the device, and output the base information on the window. 2D view The display area can show different type image. 8.3.1 Depth Image Depth image is covert to a rainbow image for real distance showing. COLORMAP_RAIN 8bit Color_Map_Mi...
  • Page 31: Ir Image

    8.3.2 IR Image 3D image store When the depth image is showing, input ‘s/S’ to store the point cloud file. User can use CloudCompare to viewer the 3D image.
  • Page 32: Camera Control

    IR_30: IR image only in 30 fps. Depth&IR_30: depth and IR image all in 30 fps. 8.5.2 Range change DCAM500 have 8 detect ranges in it, but by default, there are 3 different range modes calibrated, please see below table for more information: Range number...
  • Page 33: Wdr

    Use range 0 and 2 WDR can match this requirement.  Configure the WDR mode: If you have some particular requirement and want to use WDR mode, you can contract with Vzense FAE first.  Change mode to WDR mode: Depth image in range 0:...
  • Page 34 Depth image in range 2: Merged depth image in WDR mode...
  • Page 35: Dcam500 Accessories And Package

    Dual Head Type B Lockable Cable User Guide User guide You can ask Vzense to do customization to the cable for any reason, for example extending the cable length. Please do NOT use the accessories from other parts except Vzense Company, otherwise warranty will void.
  • Page 36: Customization Service

    10 Customization Service Vzense team has rich experience in ToF product design and delivery, we welcome customer to send customization requirement besides the standard module. Reasonable NRE fee shall be charged depends on the requirement. Appendix ROHS Declaration Eye Safety Declaration...
