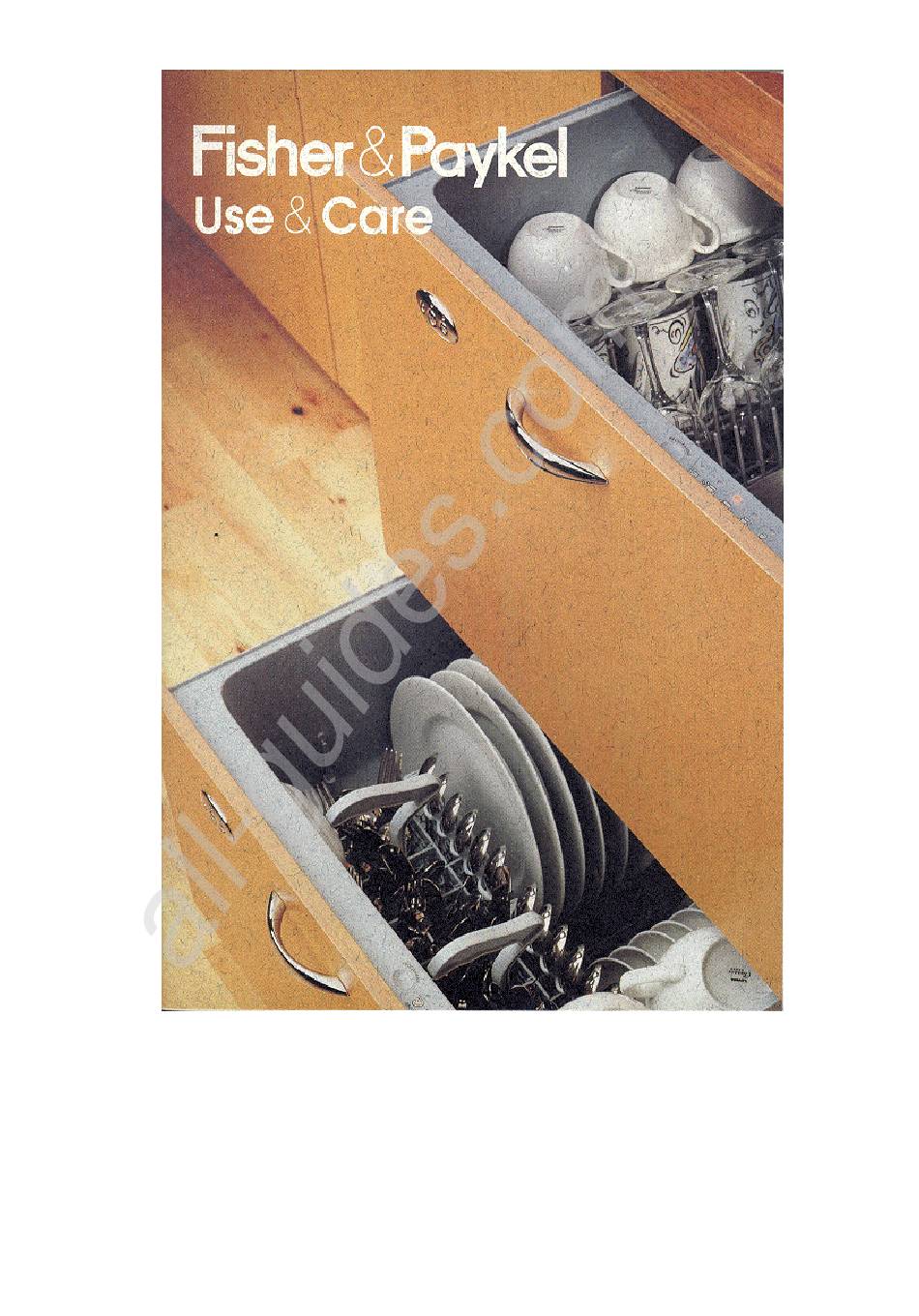

  • Page 1 All manuals and user guides at all-guides.com...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com CONTENTS Introduction Accessories Important Safety Instructions Control Functions Primary Control Buttons Lock Delay Start Secondary Control Panel Operating Instructions Usage DishDrawer Accessories Purpose of Each Insert DishDrawer Loading Loading Pattern for 10 Place Settings Detergent &...

  • Page 3: Introduction

    All manuals and user guides at all-guides.com INTRODUCTION Unique Features of Your DishDrawer The Clutter-Free Counter Top Becomes A Reality Design Your Own Rack System...

  • Page 4: Accessories

    All manuals and user guides at all-guides.com The Guilt-Free Small Load Gentler Introduction of Detergent Big On the Inside Fisher & Paykel strongly recommends that you read the information contained in this Use & Care Manual before using the DishDrawer. ACCESSORIES ·...

  • Page 5: Important Safety Instructions

    All manuals and user guides at all-guides.com IMPORTANT SAFETY INSTRUCTIONS Warning - When using your DishDrawer, follow basic precautions, including the following: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life.
  • Page 6 All manuals and user guides at all-guides.com IMPORTANT SAFETY INSTRUCTIONS • • HYDROGEN GAS IS EXPLOSIVE. • Installation • • • WARNING •...
  • Page 7 All manuals and user guides at all-guides.com IMPORTANT SAFETY INSTRUCTIONS • • • • • • Maintenance • • • • Operational • Under no circumstances should you open the drawer whilst the DishDrawer is in operation. Start / Pause...
  • Page 8 All manuals and user guides at all-guides.com IMPORTANT SAFETY INSTRUCTIONS • • • • • • SAVE THESE INSTRUCTIONS...

  • Page 9: Control Functions

    All manuals and user guides at all-guides.com CONTROL FUNCTIONS Figure 1 - Primary Control Panel Primary Control Buttons Power Power Power Start / Pause Power Start / Pause...

  • Page 10: Lock

    All manuals and user guides at all-guides.com Start / Pause · · Start / Pause Start / Pause · Start / Pause · NOTE: Under no circumstances do we recommend that you open the DishDrawer while in operation unless you have pressed the Start / Pause button. Start / Pause Power Start / Pause...

  • Page 11: Delay Start

    All manuals and user guides at all-guides.com Delay Start To Activate Delay Start Start / Pause Start / Pause Start / Pause Power Start / Pause...

  • Page 12: Secondary Control Panel

    All manuals and user guides at all-guides.com Secondary Control Panel Wash Programs Heavy Plus Delicate Eco Save Figure 3 - Secondary Control Panel Program Rinse Rinse Heavy Wash Normal Wash Fast Wash Delicate Wash Program Modifier Plus Programs (Red) Eco Save (Green)

  • Page 13: Operating Instructions

    All manuals and user guides at all-guides.com OPERATING INSTRUCTIONS Program Eco Save Start / Pause Start / Pause Start / Pause Start / Pause In the event of a power failure, the DishDrawer will stop until the supply power is resumed.

  • Page 14: Usage

    All manuals and user guides at all-guides.com USAGE DishDrawer Accessories Figure 4 - Recommended Purpose of Each Insert Positions for Inserts & Racks Basket Drain Filter Access Panel Figure 5 - Basket & Drain Filter Access Panel Cutlery Basket Figure 6 - Cutlery Basket...
  • Page 15 All manuals and user guides at all-guides.com Plate Insert Mega Rack Figure 7 - Accessories in the DishDrawer...

  • Page 16: Dishdrawer Loading

    All manuals and user guides at all-guides.com DISHDRAWER LOADING Baskets · · · · · · · · Figure 8 Figure 9 Examples of how we recommend you load your DishDrawer ü ü Figure 10 Figure 11 Examples of how NOT to load your DishDrawer û...
  • Page 17 All manuals and user guides at all-guides.com Cup Rack Posts Figure 12 - Cutlery Baskets Recommended Placement · for Wine Glasses · · Spray Arms · Figure 13 - Cutlery Basket ·...

  • Page 18: Loading Pattern For 10 Place Settings

    All manuals and user guides at all-guides.com Recommended Loading Pattern for 10 Place Settings Top Basket Figure 14 Bottom Basket Figure 15 Cutlery Basket Figure 16 Detergent Quantities...

  • Page 19: Detergent & Rinse Agent Dispenser

    All manuals and user guides at all-guides.com DETERGENT AND RINSE AGENT DISPENSER Detergent Compartments Figure 17 - Detergent & Rinse Agent Dispenser 1. Latch 2. Rinse Agent Indicator Light 3. Rinse Agent Plug To Load the Detergent Dispenser · · Rinse ·...

  • Page 20: Rinse Agent Dispenser

    All manuals and user guides at all-guides.com Rinse Agent Dispenser highly recommend regularly liquid rinse agent best drying Figure 19 - Filling the Rinse Agent Dispenser To Load the Rinse Agent Dispenser · · · · · Rinse Agent Indicator Light ·...

  • Page 21: Option Adjustment Mode

    All manuals and user guides at all-guides.com OPTION ADJUSTMENT MODE To Enter the Option Adjustment Mode Power Program Eco Save Power Rinse Agent Setting Program Power...

  • Page 22: Auto Power

    All manuals and user guides at all-guides.com Auto Power Start / Pause Lock Lock Power Start / Pause Power Start / Pause Note: Water Pressure £ Start / Pause Start / Pause Power Warning:...

  • Page 23: Wash Programs

    All manuals and user guides at all-guides.com Plus Program (Red) Eco Save Program (Green)

  • Page 24: Installation Of Upper Kickstrip

    All manuals and user guides at all-guides.com • • • • • Fast Eco Save • INSTALLATION OF UPPER KICKSTRIP • • Figure 20 - Reinstallation of the Upper Kickstrip...

  • Page 25: Care Guide

    All manuals and user guides at all-guides.com CARE GUIDE Glassware Silverware and Cutlery Rinse Aluminum Other Metals Woodware Plastic Decorated Items Glued Items...

  • Page 26: User Maintenance Instruction

    All manuals and user guides at all-guides.com USER MAINTENANCE INSTRUCTION Cleaning the DishDrawer do not recommend · · · Cleaning the Drain Filter, Spray Arm, Filter Plate and Motor Assembly Figure 21 - Internal Parts of the DishDrawer To Clean the Drain Filter To Clean the Spray Arm ·...

  • Page 27: Vacation Time

    All manuals and user guides at all-guides.com To Clean the Filter Plate · · · · Figure 22 - Correct Locking Position of Filter Plate with Motor · Assembly · To Clean the Motor Assembly Figure 23 - Motor Assembly ·...

  • Page 28: Problem Solver

    All manuals and user guides at all-guides.com PROBLEM SOLVER PROBLEM POSSIBLE CAUSE WHAT TO DO Lock Lock Start / Pause Start / Pause...
  • Page 29 All manuals and user guides at all-guides.com PROBLEM SOLVER PROBLEM POSSIBLE CAUSE WHAT TO DO Refer to Section on User Maintenance Instruction must Refer to Section on DishDrawer Accessories...
  • Page 30 All manuals and user guides at all-guides.com PROBLEM SOLVER PROBLEM POSSIBLE CAUSE WHAT TO DO Fast Eco Save...
  • Page 31 All manuals and user guides at all-guides.com PROBLEM SOLVER PROBLEM POSSIBLE CAUSE WHAT TO DO Refer to Section on User Maintenance Instruction Refer to Section on User Maintenance Instruction...

  • Page 32: Fault Code Displays

    All manuals and user guides at all-guides.com FAULT CODE DISPLAYS Start / Pause Power Power Start / Pause i l e o t t . t l r a t P / t o t t r e t r e t i t t H "...
  • Page 33 All manuals and user guides at all-guides.com FAULT CODE DISPLAYS i l e l i F t e l r e t y l t e l l a l l o i t a l l o i t ) s ( t e l t e l...
  • Page 34 All manuals and user guides at all-guides.com FAULT CODE DISPLAYS i l e r e t f f o v i t l l a & z i r i v r . t n i e r t t a .
  • Page 35 All manuals and user guides at all-guides.com FAULT CODE DISPLAYS & & & &...

  • Page 36: Dishdrawer Warranty

    All manuals and user guides at all-guides.com DishDrawer Warranty what is covered by the Warranty FULL TWO YEAR SMART CARE WARRANTY any part of the DishDrawer ..........TOLL FREE 1 888 9 FNP USA (1 888 936 7872) what is not covered by the Warranty •...
  • Page 37 All manuals and user guides at all-guides.com DishDrawer Warranty (continued) MANUFACTURERS WARRANTY Smart Care ™ certificate what is not covered by the Warranty (continued) WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
