Summary of Contents for Trace2O METALYSER HM1000

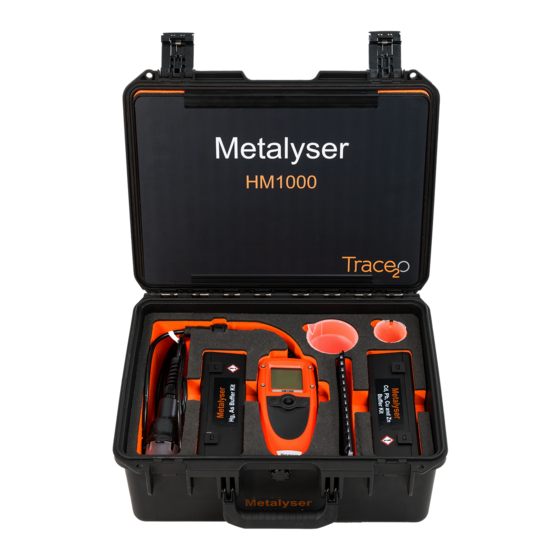

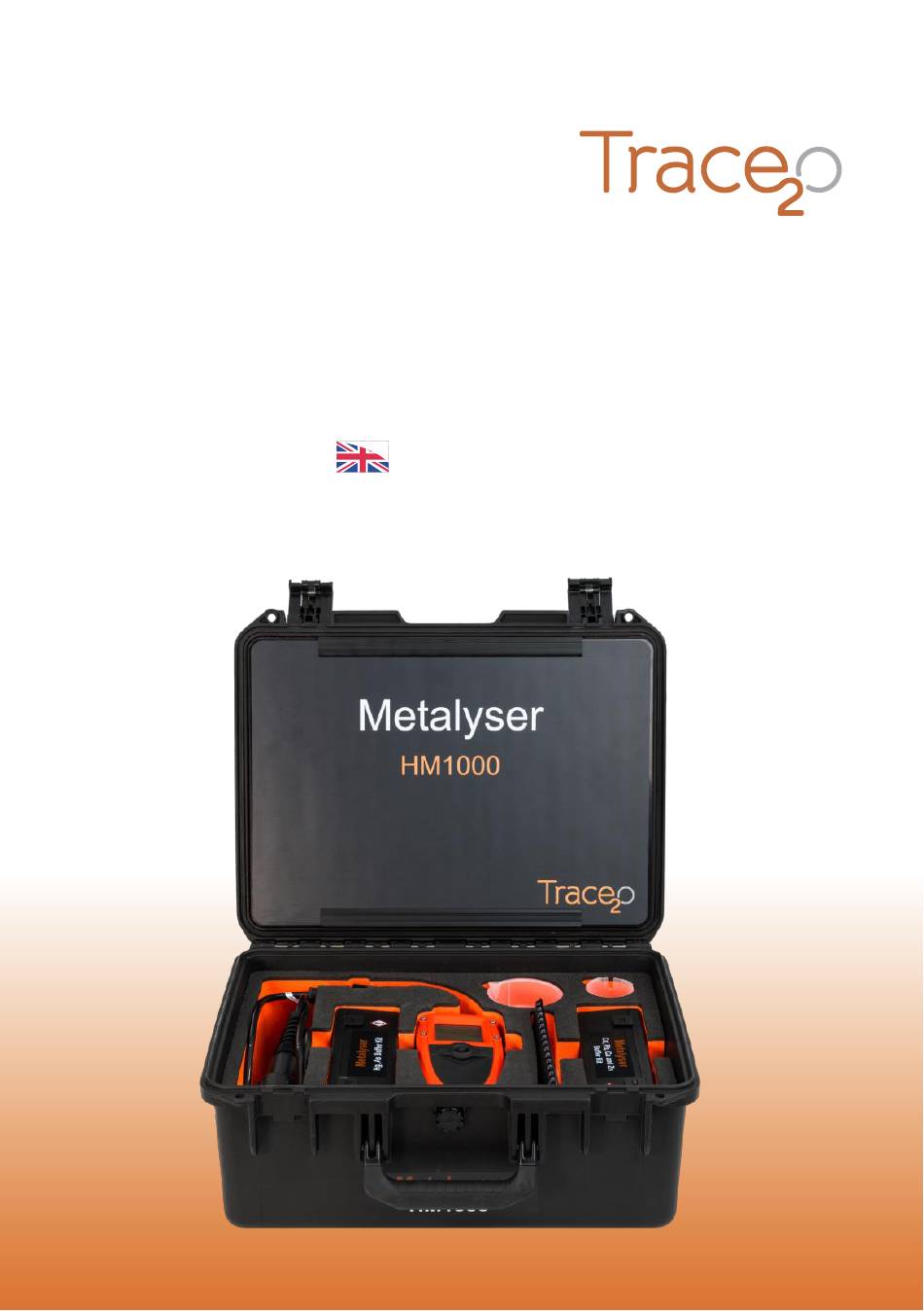

- Page 1 ETALYSER PORTABLE HM1000 Portable Field Heavy Metals Analyser...
-
Page 2: Table Of Contents
® Metalyser Portable HM1000 Instruction Manual v 5.0 CONTENTS 1. Introduction 2. Kit Content 3. Getting to Know Your Metalyser 4. Getting Started 5. Operating Procedure 6. Adding a Standard Addition 7. Troubleshooting 8. Interference Effects 9. Specifications 2 www.trace2o.com... -
Page 3: Introduction
The Metalyser HM1000 is ready out-of-the-box and can be used after charging the ® built-in battery. After a period of non-use, the Metalyser is ready to operate very quickly after putting the sonde head into the water sample. www.trace2o.com 3... -
Page 4: Kit Content
2. KIT CONTENT Electrode Standards Rinse Solution Stirrer Oil and Pipette Reference Electrode Fill Solution Cable Clamp USB Power Supply Transformers and Conditioning Adapters Solutions Sample Analysis Polishing Beaker (SAB) Beakers Sonde Buffer Kits ® Metalyser Instrument Instruction Manual 4 www.trace2o.com... -
Page 5: Getting To Know Your Metalyser
® Metalyser Portable HM1000 Instruction Manual v 5.0 ® 3. GETTING TO KNOW YOUR METALYSER www.trace2o.com 5... - Page 6 Left, Right and OK. To navigate up, down, left and right simply push the joystick in the required direction. To select an option or ‘OK’ a choice press the joystick in the centre. Cancel Button Pressing the cancel button will return you to the previous menu or screen. 6 www.trace2o.com...
- Page 7 Battery fast charge indicator Battery trickle charge indicator Battery fault/overheat indicator Battery full Battery ¾ full Battery ½ full Battery ¼ full Battery empty USB connection to PC established Stirrer on indicator www.trace2o.com 7...
- Page 8 The second option is to fit the extension cable between the Sonde and the instrument. This allows the instrument to be used to collect samples as well as analyse them. The sonde (electrodes x 4) SAB (Sample Analysis Beaker) 8 www.trace2o.com...
- Page 9 The sonde cable may be fixed to the lid of the Metalyser box, using the box closure tabs and the supplied cable clamp. Alternatively, the user may attach the cable to a suitable fixture at the sample site, e.g. branch, rope, fence, barrier. www.trace2o.com 9...
- Page 10 Electrodes can be identified by the number of connecting pins and are not interchangeable. Electrode WE1 (6 pins) is to be fitted in position WE1. Electrode WE2 (3 pins) is to be fitted in position WE2. Do not mix up the electrodes. 10 www.trace2o.com...
- Page 11 3. Use the pipette to drop enough solution into the Reference Electrode to fill it up. Once topped up, replace the band to prevent the electrode fill solution escaping. Note: Only use the supplied Reference Electrode Fill Solution. www.trace2o.com 11...
- Page 12 Hold the electrode perpendicular to the platen and use a smooth figure of eight motion as indicated. Polish until the surface has a mirror finish and no scratches or imperfections are seen. 12 www.trace2o.com...
- Page 13 Plating Solutions – The plating solutions should be stored in a dark, cool place and have a shelf life of one year. Refer to solutions for expiry dates. Should the efficacy of the plating solution deteriorate before this during use, they should be discarded and replaced. www.trace2o.com 13...
- Page 14 Used to set the instrument date and time → Language Used to select the display language → Charge Battery charging options → Auto switch Auto off select → Program Program internal hardware (Not used in normal P/STAT operation) 14 www.trace2o.com...
-
Page 15: Getting Started
Press <cancel> to return to main menu Note: The fast charge option is only available when the instrument is switched on. The instrument will also charge at a trickle rate if the instrument is connected for charging but not switched on www.trace2o.com 15... - Page 16 To set the clock follow these steps. From the main menu, select System From the system menu, select Set date/time and press <OK> Use the navigation key to alter the date and time Press <OK> when finished to save settings 16 www.trace2o.com...
- Page 17 This is recommended to extend battery life. To change this setting follow the steps below: • From the main menu select System • From the system menu select Auto switch off • Highlight required setting and press <OK> • Press <cancel> to return to main menu www.trace2o.com 17...
-
Page 18: Operating Procedure
Likewise for WE1 during analyses using WE2. When switching between different analyses, the unused electrode needs to be removed otherwise results may be affected. Procedures for each parameter are detailed in the relevant application notes. 18 www.trace2o.com... - Page 19 Test Methods menu, then choosing condition electrode, which is at the top of the list for the selected electrode. The conditioning step should be carried out in sample water, and undertakes a run which sensitises the Working Electrode. www.trace2o.com 19...
- Page 20 (within the metal menus) prepare the Working From the Test Methods Menu, choose As Electrode for analysis. (III), and then Condition Electrode No plate is deposited during this step Refer to Application notes for operating procedures for each parameter. 20 www.trace2o.com...
- Page 21 This is in order to minimise carry-over and to clean off all traces of the previous analysis. This can be achieved by using the deionised water or by washing the sonde head (without the SAB) in the sample water. This is particularly important following an arsenic analysis. www.trace2o.com 21...
- Page 22 Continue Standard Addition run on Metalyser Save / discard / download results Remove SAB. Rinse electrodes & sonde head Where ‘WEx’, use WE1 or WE2 for your required analysis Where ‘Mx’, use M1, 2, 3, 4 or 5 for your required analysis 22 www.trace2o.com...
-
Page 23: Adding A Standard Addition
To release the pipette tip after use, push the white button at the side of the pipette Before carrying out testing, become familiar using the pipette and the two different stops on the plunger to ensure the correct volume of standard is added. www.trace2o.com 23... - Page 24 Always dilute with water that will not contribute to the heavy metals being tested. Deionised water is ideal. Blank subtraction Blank subtraction is recommended to be used for all of the analyses and is the default setting. It is particularly important for the analysis of Hg and As. 24 www.trace2o.com...
-
Page 25: Troubleshooting
Addition error The increase in metal response was not sufficient enough to determine the addition Calibration error The addition was not added or the metals have not been detected www.trace2o.com 25... - Page 26 ® key press Connected via Disconnect Metalyser from Metaware, turn ® Metaware of the Metalyser and then turn it back on after a few seconds. This should give control ® back to the Metalyser 26 www.trace2o.com...
-
Page 27: Interference Effects
® The Metalyser is designed to function in water sources that might be suitable for drinking. The buffers chosen mean that in many instances interferences are unlikely to occur. www.trace2o.com 27... -
Page 28: Specifications
⁺ Lower limits achievable using the Handset at 60 seconds deposition. Increased accuracy can be achieved by setting the deposition time to 120 seconds Variability at 20ppb ± 5% with Metaware software, ± 7.5% with handheld Accuracy dependent on element measured, sample matrix and type 28 www.trace2o.com... - Page 29 Trace2o Ltd. The Technology Centre Wagtech Court Station Road Thatcham Berkshire RG19 4HZ United Kingdom Tel. +44 (0) 1635 866772 Fax +44 (0) 1635 873509 sales@trace2o.com www.trace2o.com...
