Summary of Contents for Trace2O METALYSER DELUXE HM2000

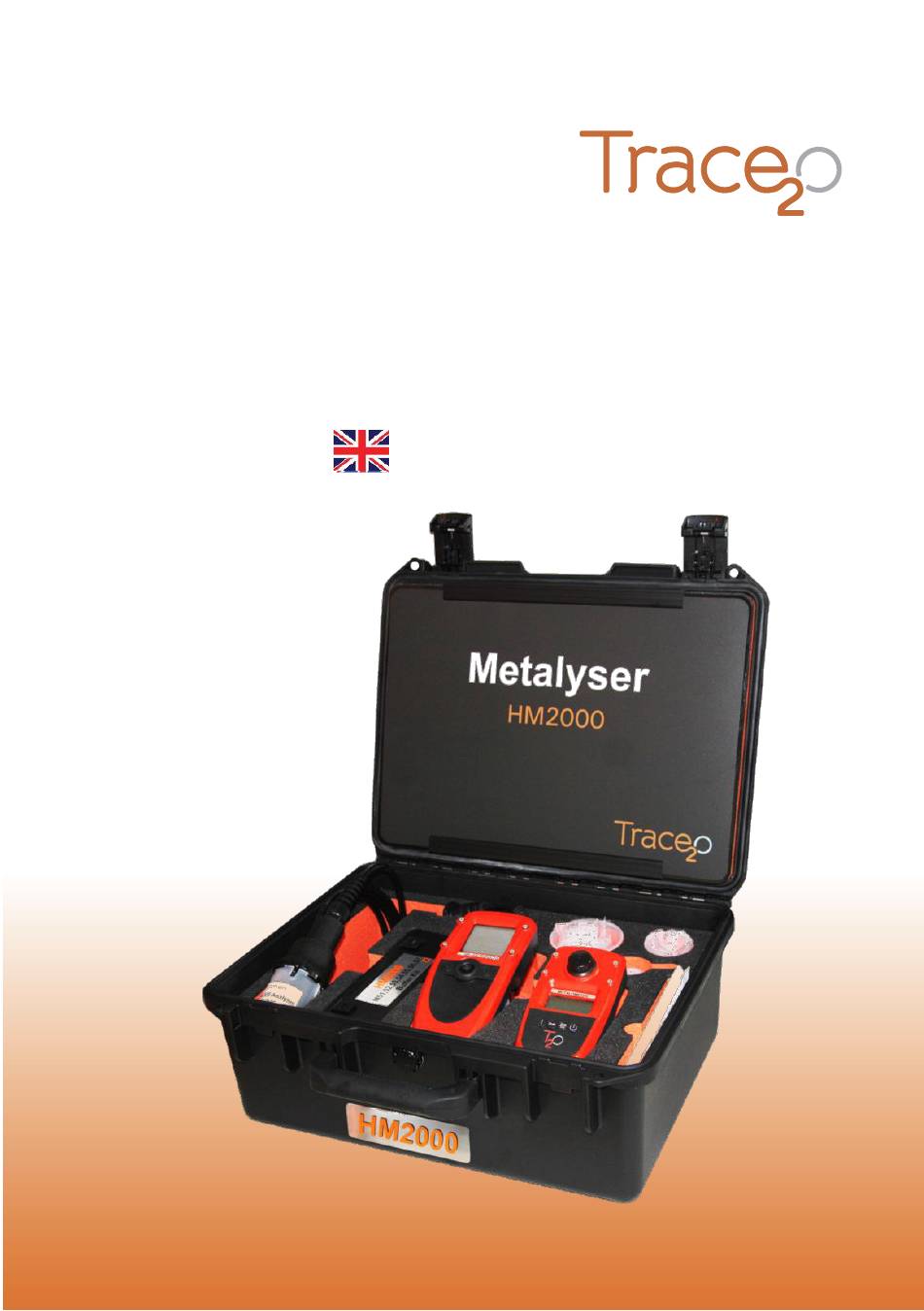

  • Page 1 METALYSER DELUXE HM2000 Upgrade Kit - Metalometer www.trace2o.com 1...
  • Page 2: Table Of Contents

    Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 CONTENTS METALOMETER GETTING TO KNOW YOUR METALOMETER GETTING STARTED PERFORMING A TEST RESULTS TROUBLESHOOTING INTERFERENCE EFFECTS SPECIFICATIONS PARAMETERS 2 www.trace2o.com...
  • Page 3: Metalometer

    Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 1. METALOMETER 1.1 GETTING TO KNOW YOUR METALOMETER Cell Chamber Backlit display Function key On/Off button Zero/ test button Mode button www.trace2o.com 3...
  • Page 4 Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 LCD display The LCD display displays the test method, countdown timer and result. There is also a backlight activated by pressing the button. ON/OFF Button The ON/OFF is used to turn the instrument on and off.
  • Page 5 Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 Components and care of components Glass vials : To ensure the best accuracy the vials used should be clean and free of marks, scratches, fingerprints etc.. They should be washed thoroughly in tap water and then rinsed with de-ionised/distilled water to remove any traces of tap water.
  • Page 6: Getting Started

    Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 1.2 GETTING STARTED The Metalometer requires 4 x AAA Alkaline batteries which come pre-installed. If these require changing see the section on battery replacement. Setting the date and time. Press and hold then turn on by pressing …...
  • Page 7: Performing A Test

    Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 1.3 PERFORMING A TEST The Metalometer uses the photometric analysis technique. The principle is to add a reagent to a sample of water which will react with the metal of interest and produce a colour change which is related to the concentration of the metal in the sample.
  • Page 8: Results

    Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 1.4 RESULTS The instrument displays the results on the screen and will store them automatically with a data and time stamp in the one of the 16 memory locations. Once the memory is full the next reading will overwrite the first, the next the second and so on.
  • Page 9: Troubleshooting

    Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 1.5 TROUBLESHOOTING Whilst your Metalometer is designed to be very reliable, occasional problems may occur throughout its working life. The following tables are intended to help you diagnose and resolve these problems simply and quickly. Should you not be able to resolve the problem please contact your supplier and they will be able to assist you.
  • Page 10: Interference Effects

    Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 1.6 INTERFERENCE EFFECTS The Metalometer has been designed to test very low levels of metals in water and as such is very sensitive. Due to the interaction of other metals and organics in the water source, interferences can occur as with any system of this type.
  • Page 11 Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 NOTES www.trace2o.com 11...
  • Page 12 Metalyser Deluxe HM2000 Metalometer Instruction Manual 1.0 Technology Centre Wagtech Court Station Road Thatcham Berkshire RG19 4HZ United Kingdom T : +44(0) 1635 866772 F : +44(0) 1635 873509 E : sales@trace2o.com W: www.trace2o.com 12 www.trace2o.com...
