Shelving
Assembly Instructions
•
Take great care handling and lifting parcels
•
Open parcels with care to avoid damage
•
Check the label to see the contents of each parcel
•
If you have ordered several items, keep it simple: only unpack one item at a time
•
Use the the Parts Diagram sheet to identify and distinguish between parts
Any questions: call us on 01227 833333, or email sales@jali.co.uk
•

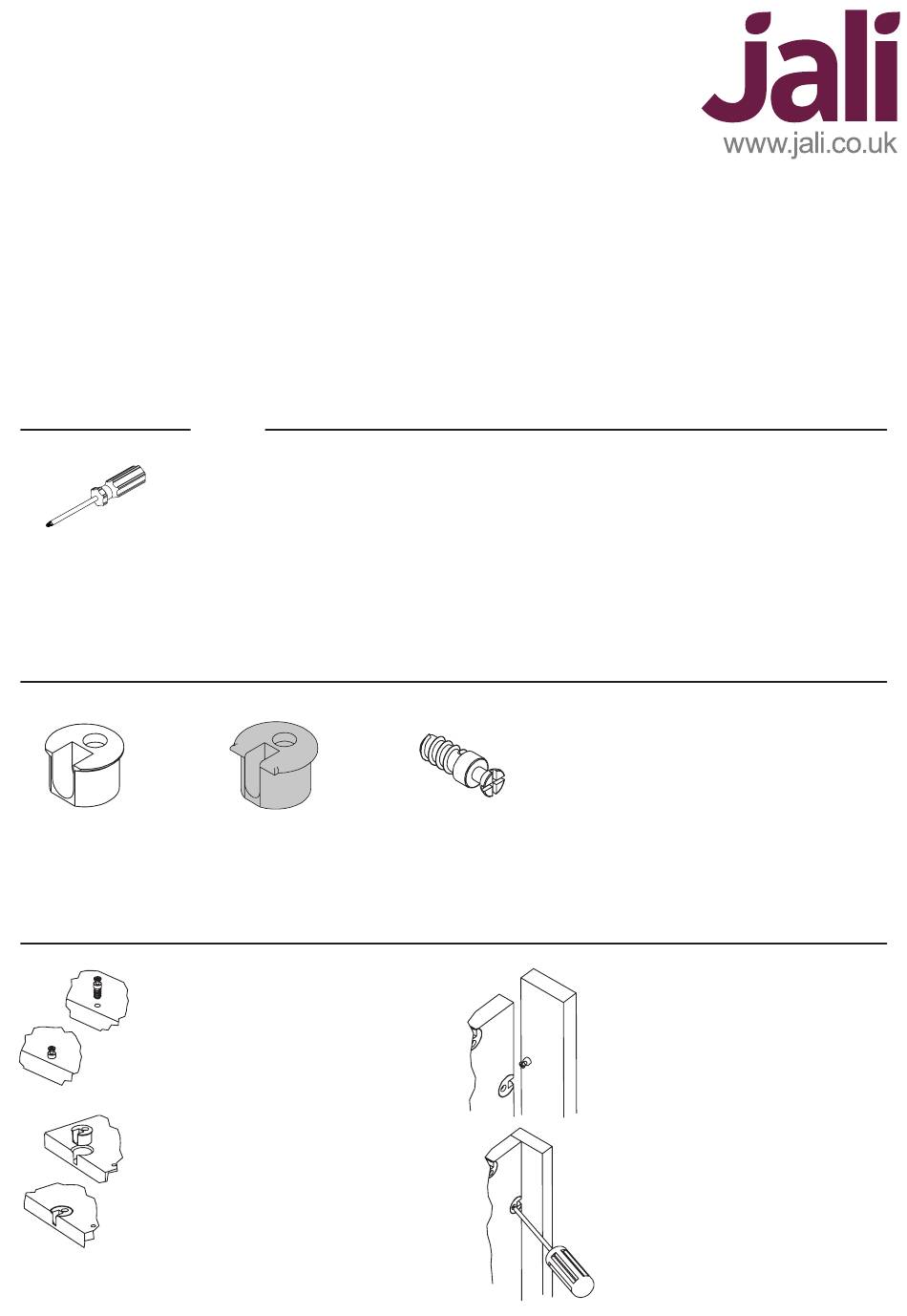

YOU WILL NEED
5mm Pozi
Screwdriver
FIXINGS INCLUDED
White Cam
HOW DO CAM & BOLTS WORK?
1. Screw the metal bolt, up to the
shoulder, into the 5mm hole in
one part.
2. Push the cam, facing
outwards, into the corresponding
hole on the other part.
Assembly Instructions: Shelving
EXTRA
•
You must fix your product safely in place. Depending on your
situation, you may choose to use a drill, suitable screws and wall
plugs. Screw through the Back Rail to fix against a wall
•
If your design is side fitted (i.e. a room divider), it will not include a
Back Rail. Instead, fix the Side to a wall and Top to the ceiling
Nickel Cam
Cam Bolt
3. Push the two parts together,
so that the metal bolts disappear
into the middle of the cams.
4. Insert a 5mm Pozi screwdriver
– tilt back at a slight angle – and
rotate CW to lock the bolt in
place.
Page 1 of 4
Advertisement
Related Manuals for jali Shelving
Summary of Contents for jali Shelving
- Page 1 If you have ordered several items, keep it simple: only unpack one item at a time • Use the the Parts Diagram sheet to identify and distinguish between parts Any questions: call us on 01227 833333, or email sales@jali.co.uk • YOU WILL NEED EXTRA •...
- Page 2 Note that units without a plinth do not include a Kick Board, and side fitting units do not include a Back Rail. Shelf Mid Divider LH Side Kick Board RH Side Front View Back Rail Base Reverse View Assembly Instructions: Shelving Page 2 of 4...
- Page 3 3. If your design features a Back Rail, connect it to the Top by aligning the Cams and Bolts, and locking them into place. 4. If your design features a Kick Board, connect it to the Base with the Cam Bolts. Base Kick Board Assembly Instructions: Shelving Page 3 of 4...
- Page 4 6. Next, slot the Shelves into place and lock the Cams. The Shelves should rest on top of the Cam Bolts, with the Shelf Cams facing downwards toward the Base. Carefully, lift up the Shelving. 7. Once you’ve checked the unit is in the correct position, you can fix it to the wall however you choose.
