Dresser
Assembly Instructions
•
Take great care handling and lifting parcels
•
Open parcels with care to avoid damage
•
Check the label to see the contents of each parcel
•
If you have ordered several items, keep it simple: only unpack one item at a time
•
Use the the Parts Diagram sheet to identify and distinguish between parts
•
Any questions: call us on 01227 833333, or email sales@jali.co.uk
YOU WILL NEED
5mm Pozi
Power Drill +
Screwdriver
2mm Drill Bit
& Pozi Drive

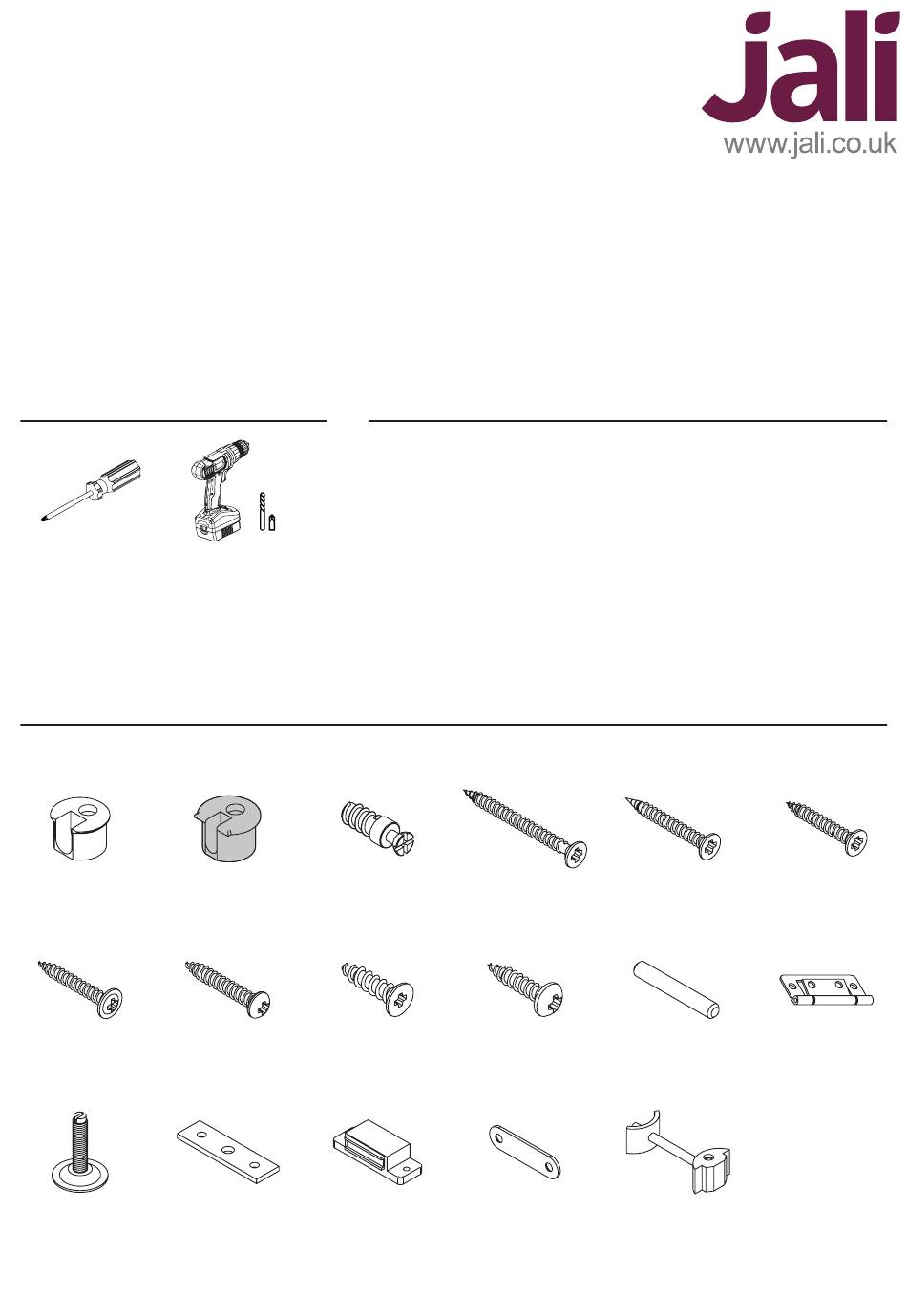

FIXINGS INCLUDED
Plus Door Handles with Bolts as required
White Cam
Nickel Cam
25mm WSH
20mm RND
Screw
Adjustable
Foot Plate
Foot
Assembly Instructions: Dresser
EXTRA
•
•
•
Cam Bolt
16mm CSK
Screw
Screw
Magnetic
Catch
You must fix your product safely in place. Depending
on your situation, you may choose to use a drill,
suitable screws and wall plugs
You may wish to use Wood Glue to fix skirting in place
To ensure a perfect fit with your room skirting board,
you may use a saw to scribe the relevant parts during
assembly
45mm CSK
Screw
16mm RND
Screw
Magnetic
Catch Plate
30mm CSK
25mm CSK
Screw
Dowel
Connector
in some cases
Screw
Hinge
Page 1 of 9
Advertisement
Related Manuals for jali Dresser
Summary of Contents for jali Dresser
- Page 1 If you have ordered several items, keep it simple: only unpack one item at a time • Use the the Parts Diagram sheet to identify and distinguish between parts • Any questions: call us on 01227 833333, or email sales@jali.co.uk YOU WILL NEED EXTRA •...
- Page 2 Depending on your design, there may be Shelving inside the cupboard, as well as Base Shelf Supports below. Shelf LH Side RH Upright Upper Upper Back Countertop Mid Side Upper RH Upright Lower LH Side Lower Front Skirt LH Skirt Door LH Upright Lower Assembly Instructions: Dresser Page 2 of 9...
-
Page 3: Lower Assembly
Now we can fit the Base Shelf to the LH Side. The Cam Bolts in the Base Shelf should face the bottom of the Side, so they’ll be hidden when the unit is standing upright. Base Shelf LH Side + Upright Assembly Instructions: Dresser Page 3 of 9... - Page 4 Dividers (and Shelves). Keep going until you’ve done all the sections. 6. Fit the RH Side to the other end of the Base Shelf. Don’t forget to space it off the floor! RH Side + Upright Assembly Instructions: Dresser Page 4 of 9...
- Page 5 However, you should pilot drill these first to avoid splitting the wood. The Adjustable Foot should be set to about 25mm. 20mm RND Screw Foot Plate Adjustable Foot Set to 25mm 25mm Assembly Instructions: Dresser Page 5 of 9...
- Page 6 25mm CSK Screws. This will be easier with a helping hand! Ensure the butt of the hinge clears the edge of the door, so the doors are positioned correctly. Fix with 25mm CSK Screws Assembly Instructions: Dresser Page 6 of 9...
- Page 7 & RH Skirts, ensure that the mitre matches neatly with the Front Skirt. They can be either glued in place, or screwed from the inside using 30mm CSK Screws. Now the lower section is complete, you can move it into its final position. Assembly Instructions: Dresser Page 7 of 9...
-
Page 8: Upper Assembly
Fix the Back in place with 25mm WSH Screws. For multi section units, where there is no groove, fix down one side first, accurately realigning the Back edge to the Side as you go. Assembly Instructions: Dresser Page 8 of 9... - Page 9 Top can be located onto the Box Tops with Dowels, and fixed in place with glue as needed. Full Top Fix with Connector Top Lip Top Lip Set AND YOU’RE DONE! #jali #dresser #makeityours Assembly Instructions: Dresser Page 9 of 9...
