Bookcase – Single
Assembly Instructions
•
Take great care handling and lifting parcels
•
Open parcels with care to avoid damage
•
Check the label to see the contents of each parcel
•
If you have ordered several items, keep it simple: only unpack one item at a time
•
Use the the Parts Diagram sheet to identify and distinguish between parts
Any questions: call us on 01227 833333, or email sales@jali.co.uk
•

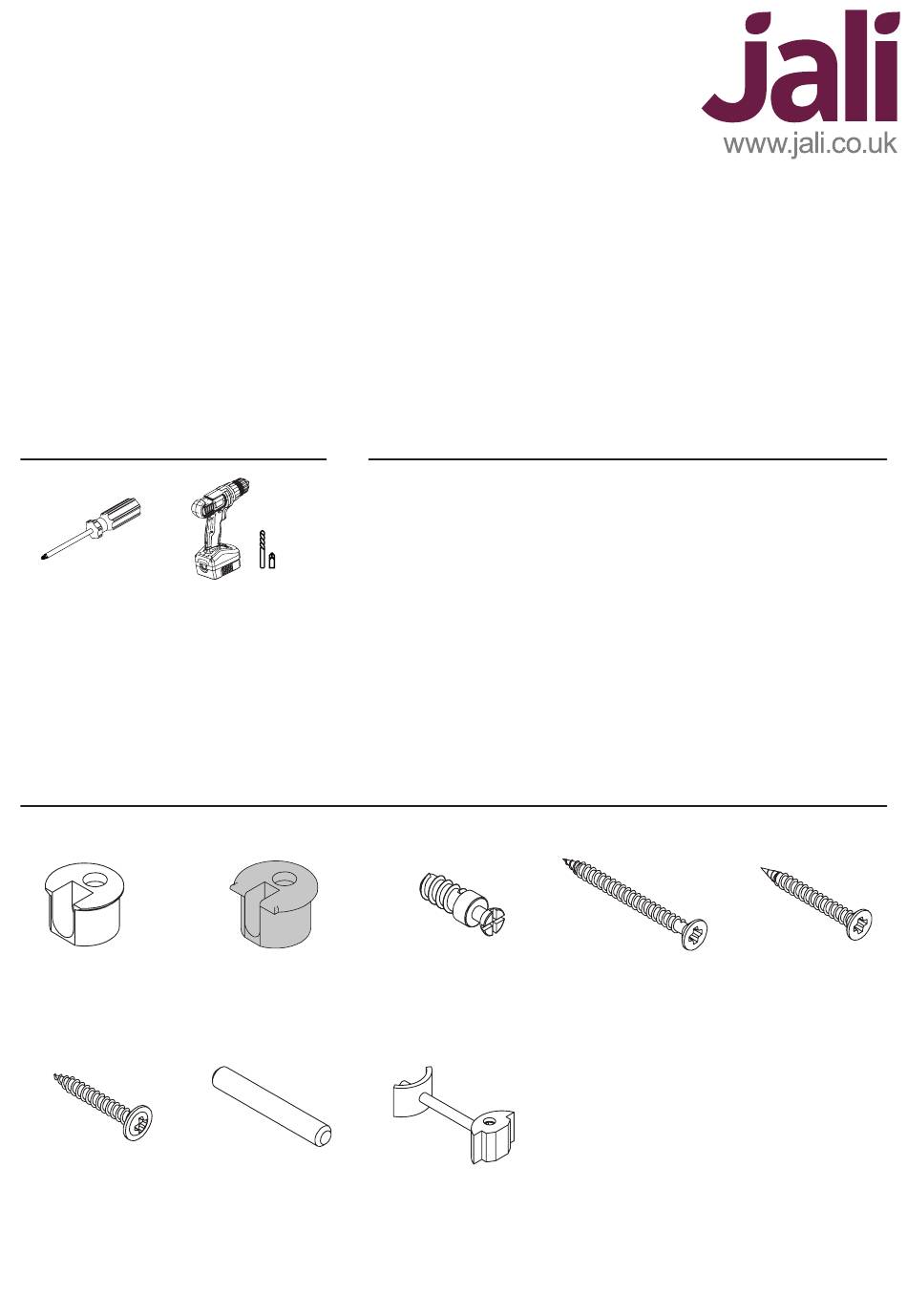

YOU WILL NEED
5mm Pozi
Power Drill +
Screwdriver
2mm Drill Bit
& Pozi Drive
FIXINGS INCLUDED
White Cam
25mm WSH
Screw
Assembly Instructions: Single Section Bookcase
EXTRA
•
•
•
Nickel Cam
Dowel
You must fix your product safely in place. Depending
on your situation, you may choose to use a drill,
suitable screws and wall plugs
You may wish to use Wood Glue to fix skirting in place
To ensure a perfect fit with your room skirting board,
you may use a saw to scribe the relevant parts during
assembly
Cam Bolt
Connector
in some cases
45mm CSK
Screw
30mm CSK
Screw
Page 1 of 9
Advertisement
Related Manuals for jali Bookcase - Single
Summary of Contents for jali Bookcase - Single
- Page 1 If you have ordered several items, keep it simple: only unpack one item at a time • Use the the Parts Diagram sheet to identify and distinguish between parts Any questions: call us on 01227 833333, or email sales@jali.co.uk • YOU WILL NEED EXTRA •...
- Page 2 HOW DO CAM & BOLTS WORK? 1. Screw the metal bolt, up to the 3. Push the two parts together, shoulder, into the 5mm hole in so that the metal bolts disappear one part. into the middle of the cams. 2.
- Page 3 PLACE FIXINGS LH Side 2. We’ll start with the left hand (LH) and right hand (RH) Sides. Place the Nickel Cams in all the available holes, facing outwards. Using the screwdriver, or a power tool on a low setting, screw the Cam Bolts into the available 5mm holes on the LH &...
- Page 4 Uprights 4. The LH & RH Uprights each have a row of 5mm holes. Screw a Cam Bolt into each of these. There is also one central 6mm hole in each, but leave those for now. Shelf Shelf Normal with Cams 5.
-
Page 5: Box Assembly
BOX ASSEMBLY 7. Align the Valance White Cams with the Box Box Base Base Cam Bolts, then lock each cam securely in place. See Page 2 for help with cams. 8. Now we’ll assemble the main box. The best order to follow depends on how many Dividers and Shelves are within the box, so read this section Valance before you start. - Page 6 9. If you have no Dividers, place the Shelves between the LH and RH Sides. Wherever (if) the Side features a central Cam Bolt, place one of the Shelves with cams. Lock them in place. With all the Shelves in place, locate the Box Top and Box Base with the Side Cam Bolts, and lock these securely in place.
- Page 7 Fix with 25mm Back WSH Screws Box Top 10. Place the Back onto the assembled Box, with the engraved label towards the top, and facing up/outwards, as shown. Slide the Back over until its top edge aligns perfectly with the top edge of the Box Top.
- Page 8 11. Fit Dowels into the Front Skirt holes, and push home the Front Skirt into the holes on the Uprights and Valance. This can be glued into place, or left as is. Depending on your design, you may have LH and/or RH Skirts. If you wish, you can scribe these Skirts to match your room skirting. A scribing guide is in the works;...
- Page 9 Box Top Fix with Dowels Fix with Dowels Valance RH Skirt Upright Front Skirt LH Skirt AND YOU’RE DONE! #jali #bookcase #makeityours Assembly Instructions: Single Section Bookcase Page 9 of 9...
