Cupboard – Single
Assembly Instructions
•
Take great care handling and lifting parcels
•
Open parcels with care to avoid damage
•
Check the label to see the contents of each parcel
•
If you have ordered several items, keep it simple: only unpack one item at a time
•
Use the the Parts Diagram sheet to identify and distinguish between parts
•
Any questions: call us on 01227 833333, or email sales@jali.co.uk

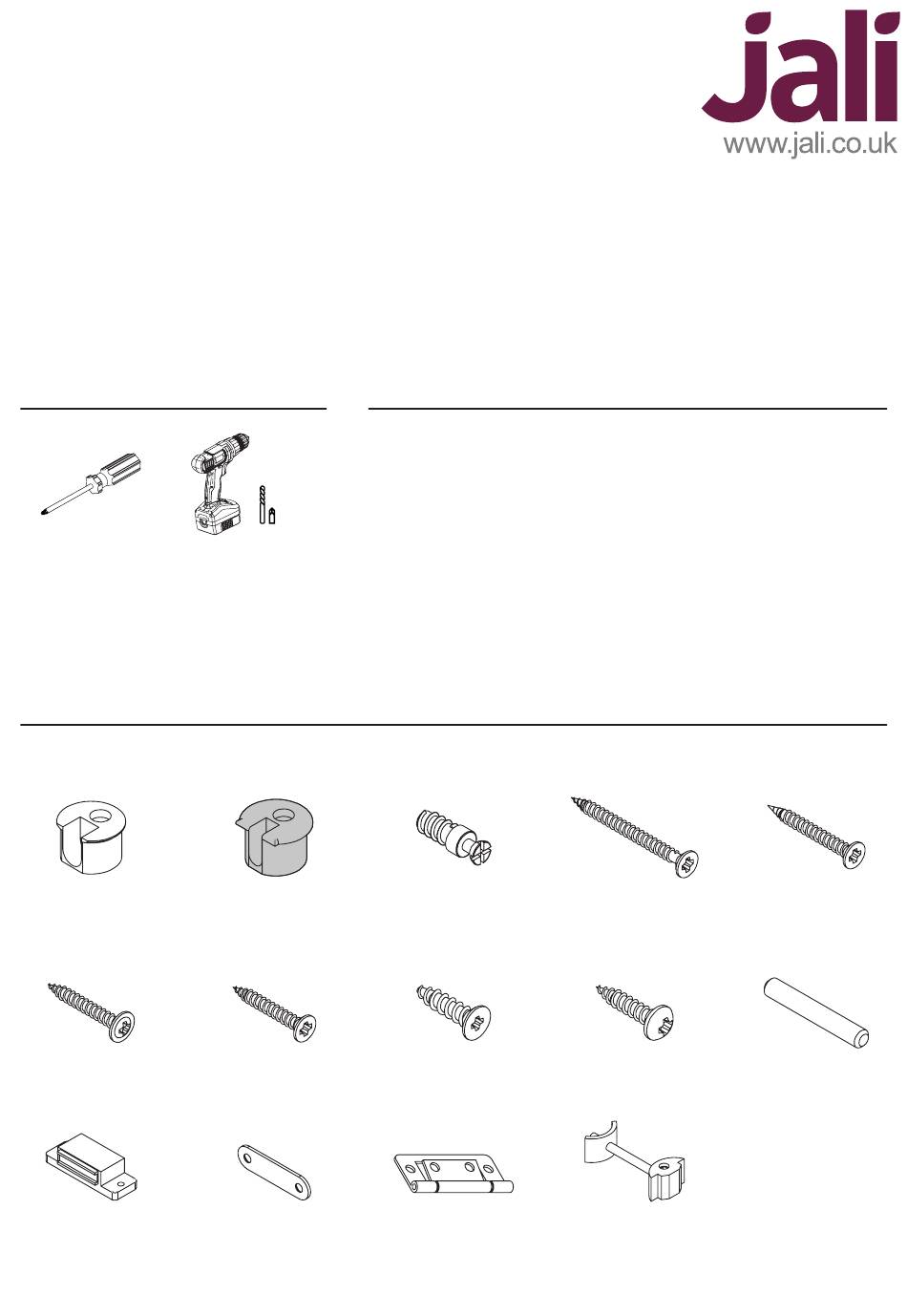

YOU WILL NEED
5mm Pozi
Power Drill +
Screwdriver
2mm Drill Bit
& Pozi Drive
FIXINGS INCLUDED
Plus Door Handles with Bolts as required
White Cam
25mm WSH
Screw
Magnetic
Catch
Assembly Instructions: Single Section Cupboard
EXTRA
•
•
•
Nickel Cam
25mm CSK
Screw
Magnetic
Catch Plate
You must fix your product safely in place. Depending
on your situation, you may choose to use a drill,
suitable screws and wall plugs
You may wish to use Wood Glue to fix skirting in place
To ensure a perfect fit with your room skirting board,
you may use a saw to scribe the relevant parts during
assembly
Cam Bolt
16mm CSK
Screw
Hinge
45mm CSK
Screw
16mm PAN
Screw
Connector
in some cases
30mm CSK
Screw
Dowel
Page 1 of 10
Advertisement
Related Manuals for jali Single Section Cupboard
Summary of Contents for jali Single Section Cupboard
- Page 1 If you have ordered several items, keep it simple: only unpack one item at a time • Use the the Parts Diagram sheet to identify and distinguish between parts • Any questions: call us on 01227 833333, or email sales@jali.co.uk YOU WILL NEED EXTRA •...
- Page 2 Box RH Side May be solid, shaped, or in multiple pieces RH Upright Box Top Divider Box Back Shelf Box LH Side RH Skirt Box Base LH Skirt Front Skirt Valance LH Upright Assembly Instructions: Single Section Cupboard Page 2 of 10...
- Page 3 Screw in all Cam Bolts required on one side of the Divider, then turn the Divider over, and screw in Cam Bolts, in the same holes, on the opposite side. Assembly Instructions: Single Section Cupboard Page 3 of 10...
- Page 4 Valance strip could be taller than this example. Screw Cam Bolts into the 5mm holes along the Box Base front edge. Box Base Box Top Valance Front Edge Cam Bolt Assembly Instructions: Single Section Cupboard Page 4 of 10...
-
Page 5: Box Assembly
Divider/s Box Top Front edge to the floor, engraved label facing away Box Base Front edge to the floor, Pilot hole, then fix engraved label facing towards with 45mm CSK Screws Assembly Instructions: Single Section Cupboard Page 5 of 10... - Page 6 If not, something’s wrong! LH Side Front edge to the floor, engraved label facing inwards RH Side Shelf with cam Front edge to the floor, engraved label facing inwards Assembly Instructions: Single Section Cupboard Page 6 of 10...
- Page 7 Fit the uprights to the Sides by aligning the cams and locking them into place. Ensure the hinge holes face inwards. Side Upright Assembly Instructions: Single Section Cupboard Page 7 of 10...
- Page 8 LH & RH Skirts, ensure that the mitre matches neatly with the Front Skirt. They can be either glued in place, or screwed from the inside using 30mm CSK Screws. Assembly Instructions: Single Section Cupboard Page 8 of 10...
- Page 9 25mm CSK Screws. This will be easier with a helping hand! Ensure the butt of the hinge clears the edge of the door, so the doors are positioned correctly. Fix with 25mm CSK Screws Assembly Instructions: Single Section Cupboard Page 9 of 10...
- Page 10 16. Fix Magnetic Catches to the Box Top with 16mm PAN Screws. The Catch should be towards the front, with the magnet facing outwards. Then, fix Magnetic Catch Plates to the back of any Doors with 16mm CSK Screws. AND YOU’RE DONE! #jali #cupboard #makeityours Assembly Instructions: Single Section Cupboard Page 10 of 10...
