SiAECOSYS VOTOL EM Program Manual page 19

SiAECOSYS

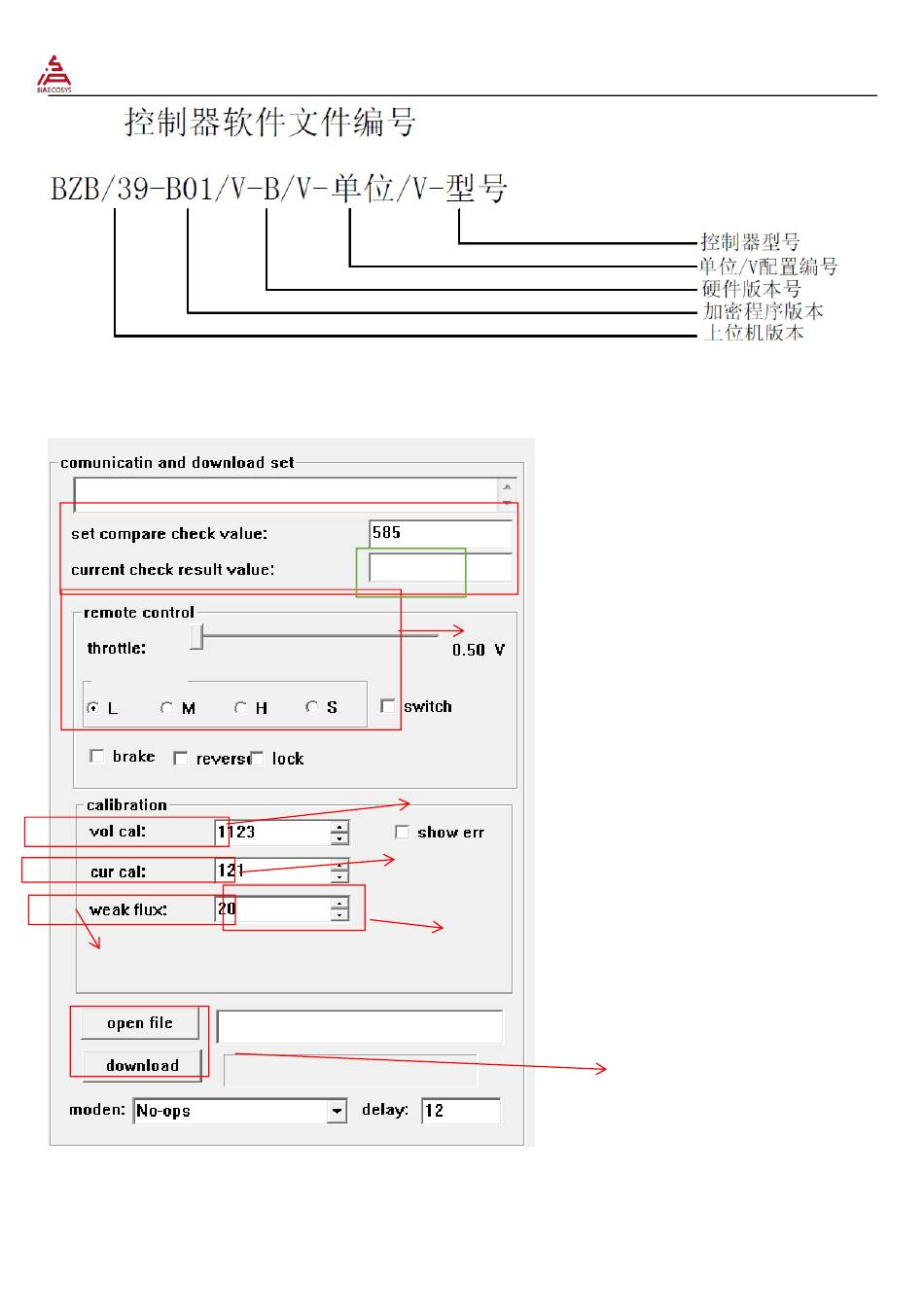

4. Expanded page
Adjust d-axis voltage and q-axis current
4.1 update ECU program.
4.1.1 connect the serial port line and the upper computer and controller successfully.
4.1.2 open the "bin" file, select the bin file and download it. The prompt "CCC The last digit of "d" shows
1. The actual value corresponds to the first inspection result of
controller parameter software.
2. The comparison value corresponds to the parameter software
result of the same batch of controllers. If the two values are the
same, the parameters are the same.
7953
1. Simulate the turning handle and function of the whole vehicle.
2. Click remote control first during operation
Adjust whether the display voltage is consistent with the actual voltage
Adjust whether the display current is consistent with the actual current
Click after configuration parameter import and software download
19
Download bin software
V2
