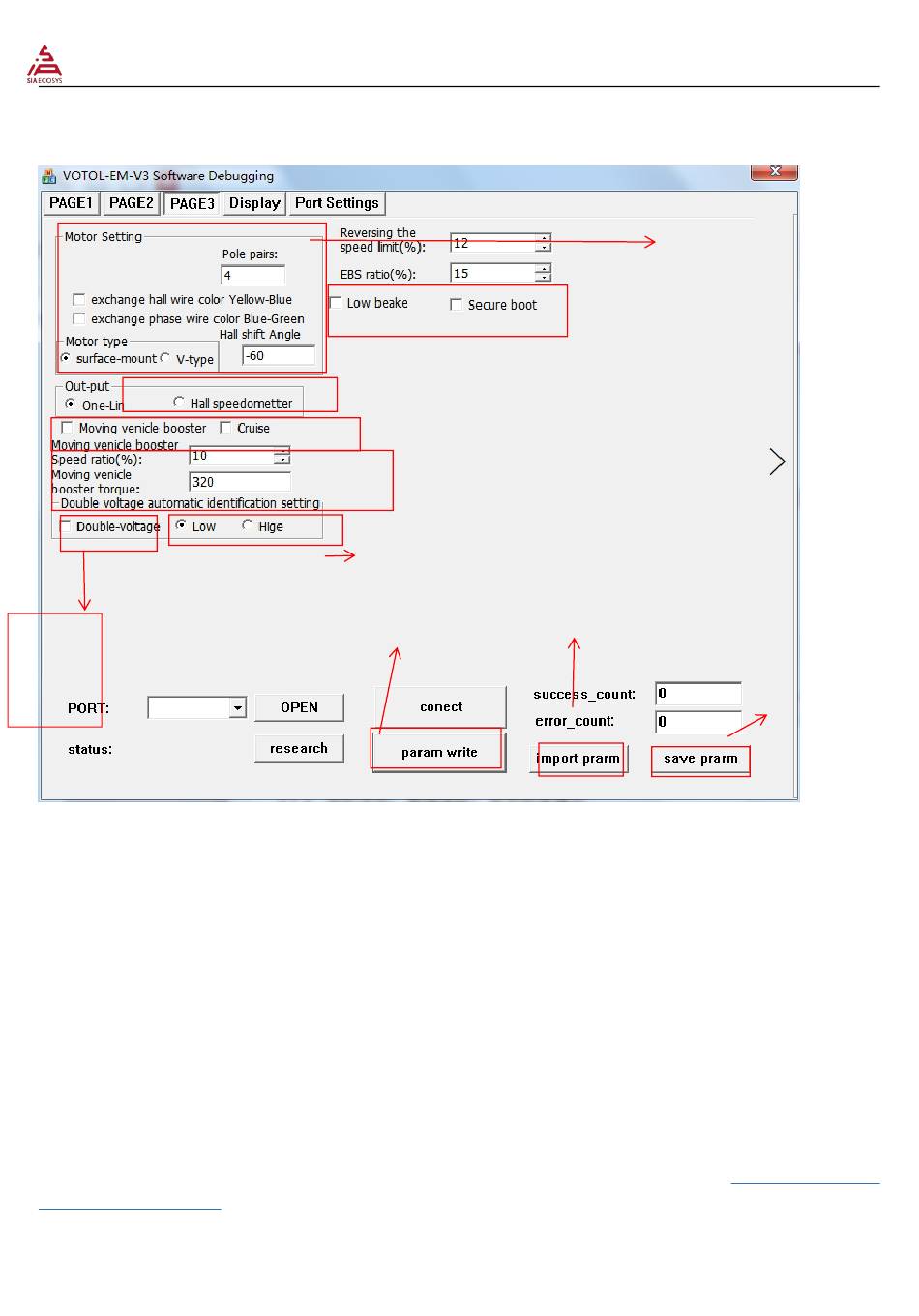

3. The setting page 3
Either-or
Double
voltage
selection
3.1、 Motor Setting：
3.1.1、Motor pole pairs：Fill in according to the motor manufacturer parameters.
3.1.2、Hall phase shift angle：Fill in according to the motor manufacturer parameters.
3.1.3、Motor type：Fill in according to the motor manufacturer parameters.
Note: Wheel Hub motor is surface mount
3.1.4、Hall, phase line exchange: exchange the motor forward and reverse.
3.2、 The controller to speedometer date output has 2 types: Single-line speedometer and hall speedometer,
it needs to be decided by the vehicle's speedometer.
3.3、Moving assist and cruising function：Used in two-wheelers
Note: Speed "3KM / H, torque 9 ~ 19N.M
3.4 Cruise function: function selection, the default does not open.
3.5 Dual voltage setting: default single voltage。
Note: The dual voltage function speed parameter value is followed by the motor speed setting. Adjust the
parameters on the setup page 2.
3.6 、 Reversing speed limit: The calculation formula is adjusted with reference to the
adjustment calculation
Note: The speed of the two-wheeler is 5KM/H, and the tricycle is 15KM/H.
YES/NO
＜3km/h
9-12nm
Default low
Click write after parameter change Import the existing configuration file
formula file.
Checklist
17
V2
1. Pole pair shall be filled in
according to motor parameters
2. Opposite adjustment
3. Phase shift angle adjustment
angle, hub usually - 60
4. The motor type hub table is
pasted, and the center is checked
according to the parameters
Parameter
preservation
EM_V3 parameter
