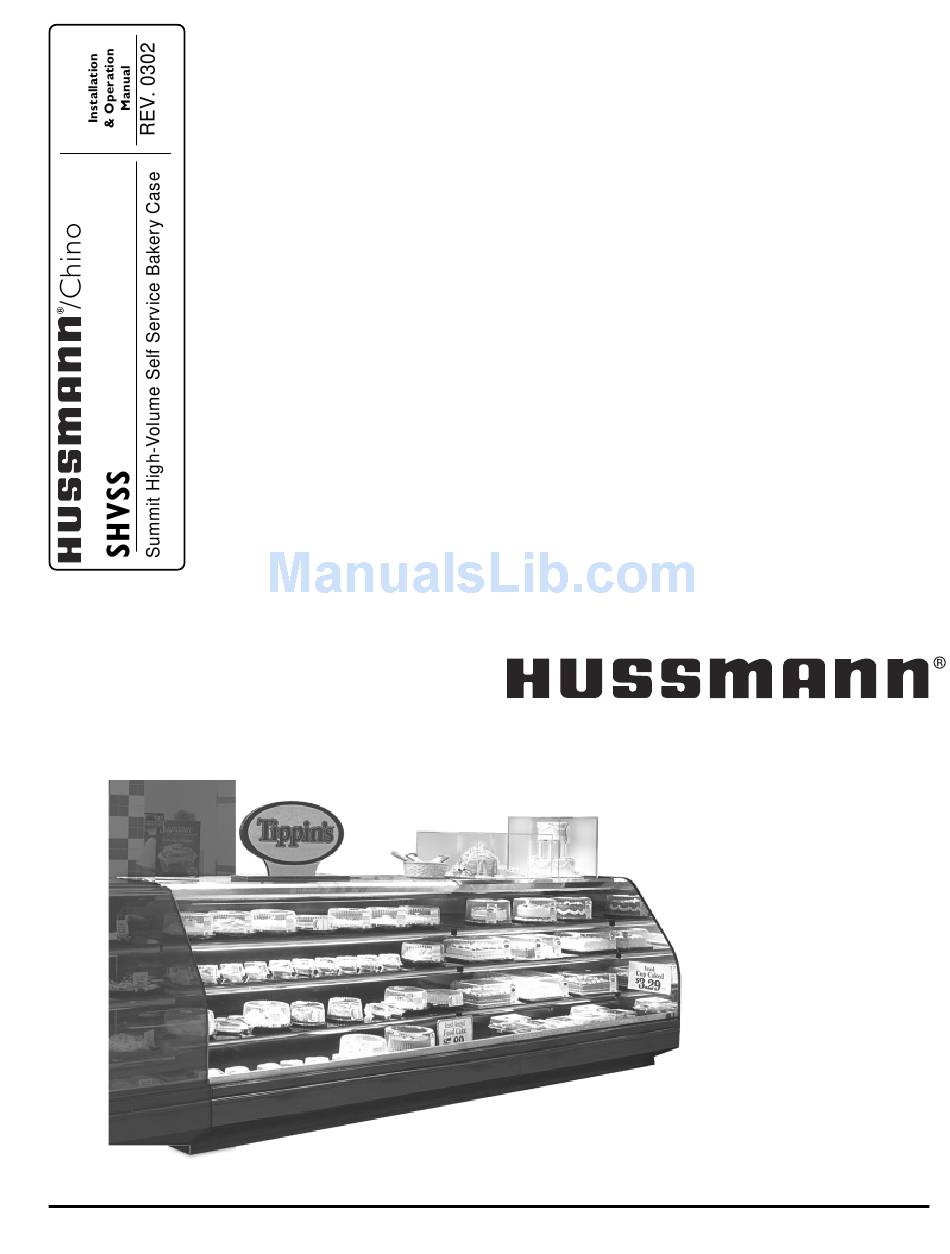

- Page 1 SHVSS Summit High-Volume Self Service Bakery Case P/N IGSSB-SHVSS-0302 INSTALLATION & OPERATION GUIDE...
-
Page 2: Table Of Contents
HUSSMANN CHINO PRODUCT CONTROL The serial number and shipping date of all equipment has been recorded in Hussmann’s files for warranty and replacement part purposes. All correspondence pertain- ing to warranty or parts ordering must include the serial... -
Page 3: Important Information
These Self Service-type merchandisers have been specifi- cally designed for bakery departments. The full length, curved glass front provides complete product visibility. The SHVSS-N, non-refrigerated model, is designed to display fresh bakery products that have fast turnover and require no refrigeration. The SHVSS-R, and SHVSS-S/... -
Page 4: Installation
IGSSB-SHVSS-0302 INSTALLATION LOCATION Like other open merchandisers, these are sensitive to air disturbances. Air currents passing around merchandisers will seriously impair their operation. Do NOT allow air conditioning, electric fans, open doors or windows, etc. to create air currents around the merchandisers. -
Page 5: Plumbing
Coupling 90° Air Gap Poorly or improperly installed drip pipes can seriously interfere with the merchandisers’ operation and result in costly maintenance and product losses. Please follow the recommendations listed below when installing drip pipes to ensure proper installation. 1. Never use drip piping smaller than the nominal diam-... -
Page 6: Refrigeration
Line Sizing - Refrigerant lines should be sized as shown on the refrigeration legend that is furnished for the store (not furnished by Hussmann). If a legend has not been furnished, refer to the Hussmann Application Engineering Manual for guidance. -
Page 7: Specifications
Opt. NOTES:These refrigerated merchandisers have been designed for use in stores where temperatures and humidity are maintained at or below 75°F and 55%RH. Stores are responsible for setting their cases appropriately in conditions which vary from the above. The number of defrosts and/or the duration may vary for cases displaying products for which they were not designed. -
Page 8: User Information
Products should not be placed in merchandisers until all refrigeration controls have been adjusted and merchandis- ers are at proper operating temperature. Care should be taken to place the bakery trays all the way to the front of the shelf. -
Page 9: Case Cleaning
ELECTRICAL Self-Contained Model Installation - Medium tem- perature merchandisers need only to be connected to a 120V / 60 Hz electrical supply. Low temperature mer- chandisers need to be connected to both a 120V / 60 Hz and 220V / 60 Hz electrical supply. -
Page 10: Electrical Schematics
IGSSB-SHVSS-0302 ELECTRICAL SCHEMATICS... - Page 11 Rev. 0000...
-
Page 12: Appendices
1.1 The installer is responsible for following the installa- tion instructions and recommendations provided by APPENDICES Hussmann for the installation of each individual type refrigerator. 1.2 Refrigeration piping should be sized according to Hussmann’s equipment recommendations and installed in accordance with normal refrigeration practices. -
Page 13: Appendix D. - Recommendations To User
1.2 Load levels as defined by Hussmann must be observed. 1.3 The best preservation is achieved by following these rules: Buy quality products. - Page 14 Make sure that all refrigeration equipment is in- stalled and adjusted in strict accordance with Hussmann’s recommendations. See that all storage and refrigeration equipment is kept in proper working order by routine mainte-...
-
Page 15: Limited Warranty
