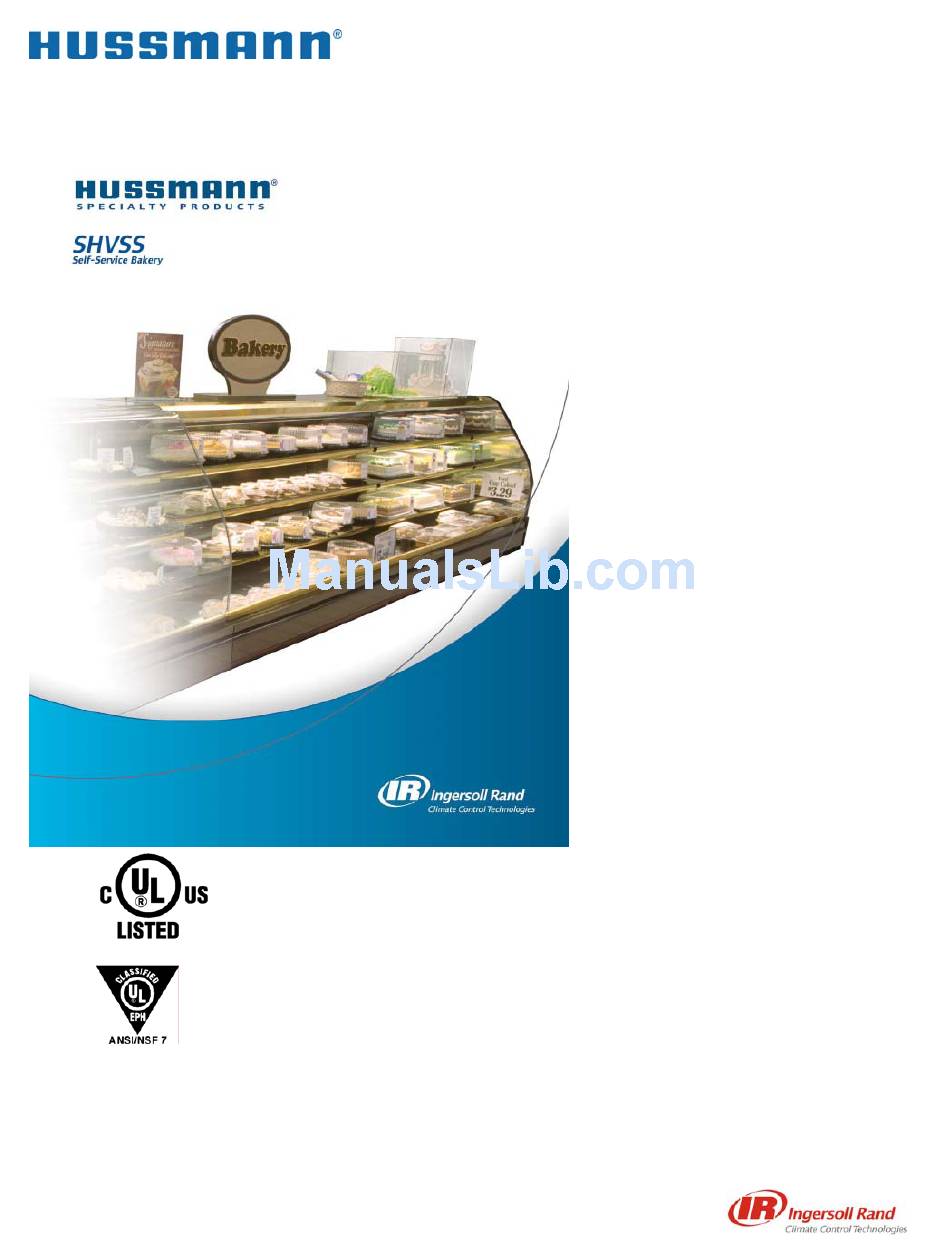

Hussmann SHVSS-C Technical Data Sheet

4
UL Sanitation
These merchandisers are manufactured to meet ANSI/National Sanitation
Foundation Standard #7 requirements.
We reserve the right to change or revise specifications and
product design in connection with any feature of our
products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Specialty Products
SHVSS
CUL Listed
Discharge Air (F)
Evaporator (F)
Note: Not recommended to control temp by regulating
coil temp allow t-stat to cycle and control temp.
Btu/hr/ft*
Parallel
Conventional
*For all refrigeration equipment other than Hussmann,
use conventional Btu values.
Frequency Hrs
OFFTIME
Temp Term °F
Failsafe Minutes
ELECTRIC or GAS
Merchandiser Drip Pipe (in.)
Merchandiser Liquid Line (in.)
Merchandiser Suction Line (in.)
Estimated Charge (lb)***
*Dependent on case length and refrigerant type.
*** This is an average for all refrigerants types. Actual
refrigerant charge may vary by approximately half a
pound.
4ft
5ft
6ft
1 of 4
SHVSS
Technical Data Sheet
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75F and 55% R.H.
30
20
860
989
DEFROST DATA
Not Recommended
PHYSICAL DATA
4ft 1.2
5ft 1.5
6ft 1.8
GLYCOL REQUIREMENTS
GPM PSI
1.2 4.0
1.5 5.8
1.8 9.0
Rev A
8
54
36
1 1/2
3/8*
5/8*
