Hussmann SHM Series Installation & Operation Manual

Medium temperature self contained specialty horizontal merchandiser
Hide thumbs Also See for SHM Series:
Table of Contents

Advertisement

Quick Links

Æ
SHM
Medium Temperature Self Contained
Specialty Horizontal Merchandiser
Installation &
Operation
Shown with 3-sided Bumper
Manual
P/N 0515258_N
June 2018
Spanish 0531303
French 0531304

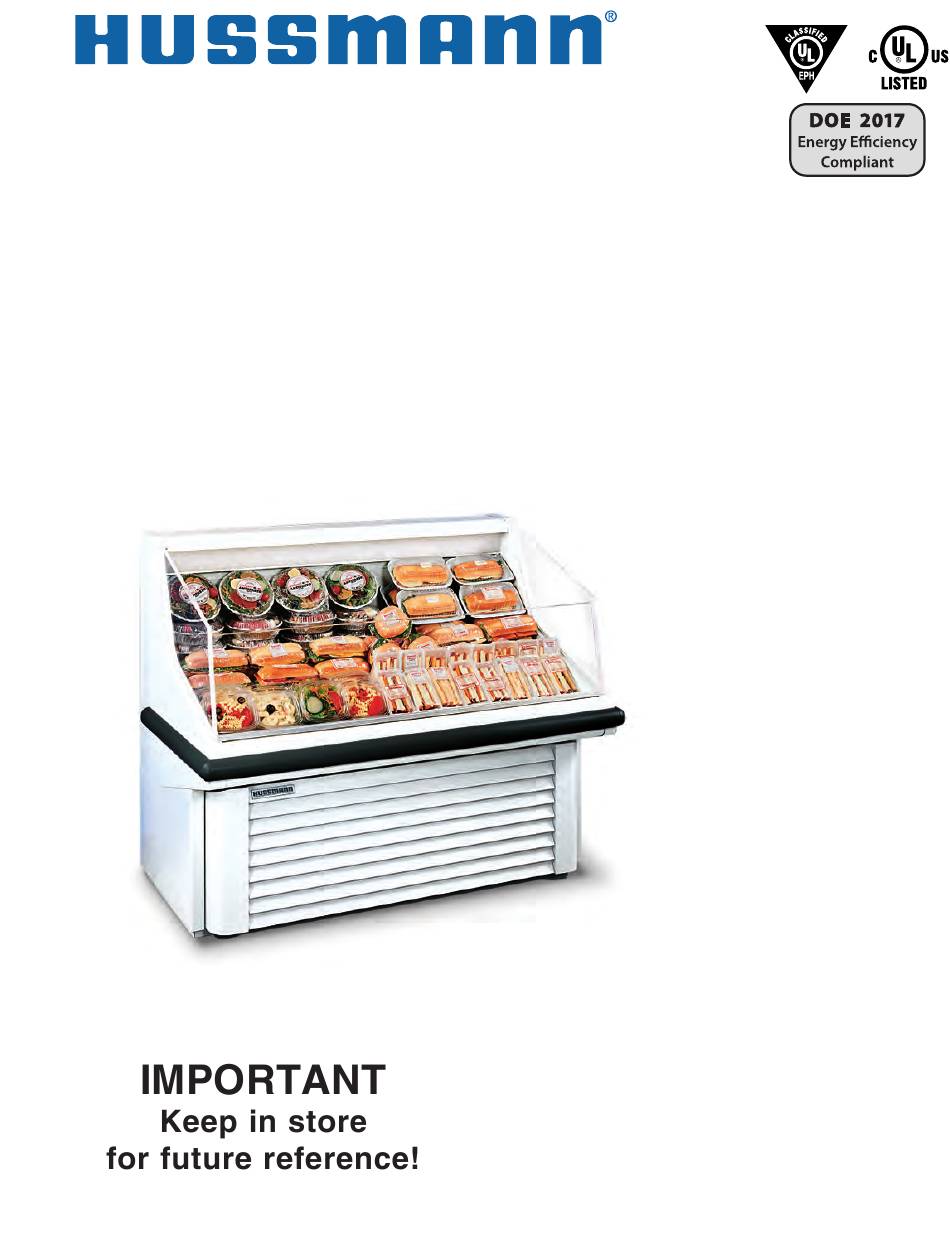

MANUAL- I/O SELF-CONTAINED SHM
