Hussmann RI2-E Technical Data Sheet

Hussmann RI2-E Technical Data Sheet

Hussmann ri2-e merchandisers: data sheet
Hide thumbs Also See for RI2-E:
1
2
3
4
5
6

Advertisement

Table of Contents

See also: Operation & Installation Manual
E
D
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS
,
8 Ft, 10 Ft, 12 Ft
14 Ft & 16 Ft

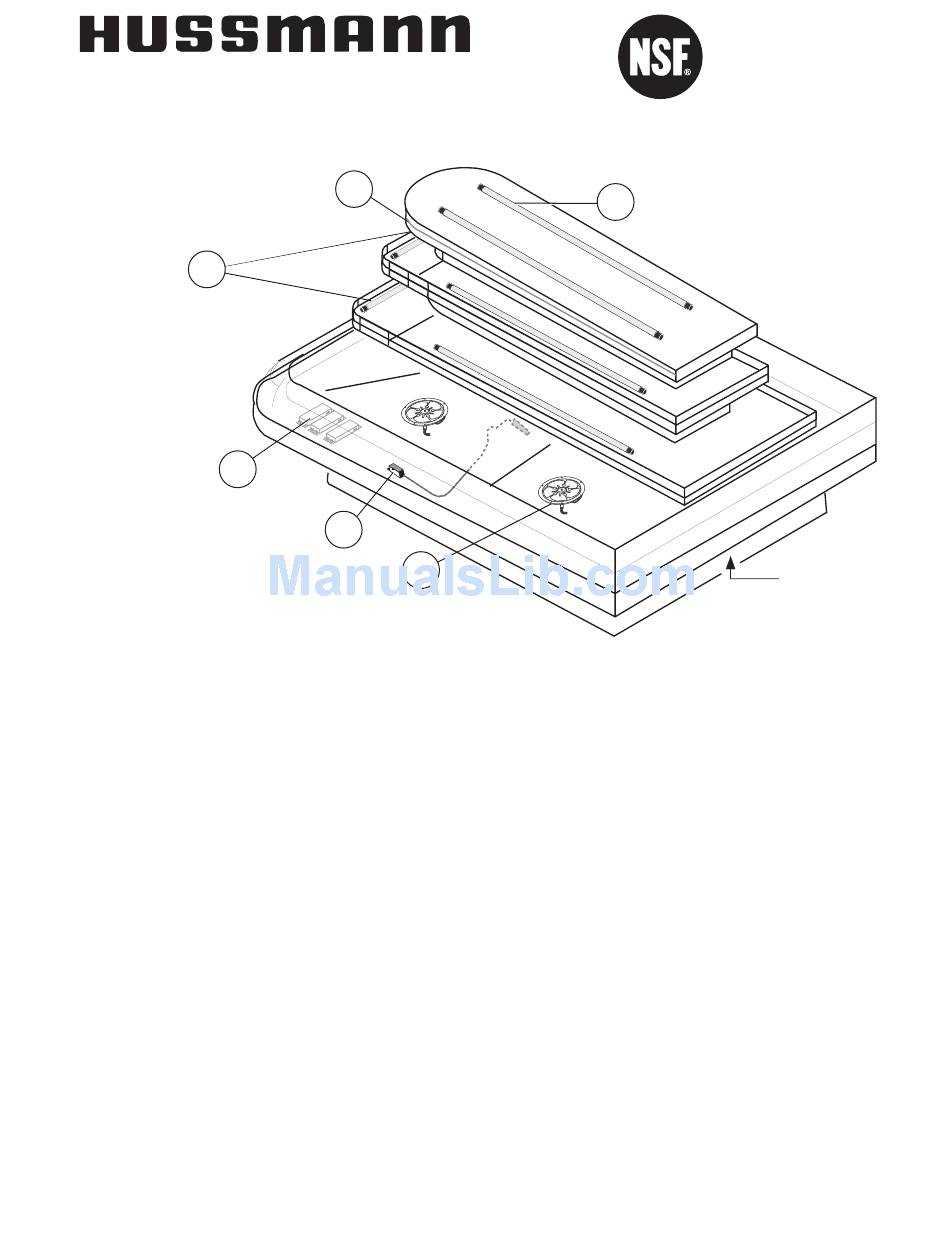

A. 12W Standard Fan Assembly
0047000
Fan Motor, Evaporator
(MO.4410103)
0142780
Fan Blade (FB.0142780)
embossing toward motor
12W Energy Efficient Fan Assembly
0477655
Fan Motor, Evaporator
(MO.4410546)
0142780
Fan Blade (FB.0142780)
B. Optional Adjustable Refrigeration Thermostat (2)
0448347
(CT.4481631)
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®
C
B
A
Wiring Item #
(1)
(1)
E
Item Part #
Description
H
EATERS
C.
Anti-Sweat Heater
0487118
(HE.4850668)
L
B
AMPS AND
ALLASTS
D. Ballast, Electronic
0355398
(BA.4480118)
0355716
(BA.0355716)
E.
Fluorescent Lamp
Replace with like fixtures
RI2E
Technical Data Sheet
P/N 0492438_A
NSF
®
Certified
April 2007
Serial Plate
Wiring Item #
P/N 0492438_A
(3)
(4)
(5)
