Fisher & Paykel RS2484SL1 Installation Manual

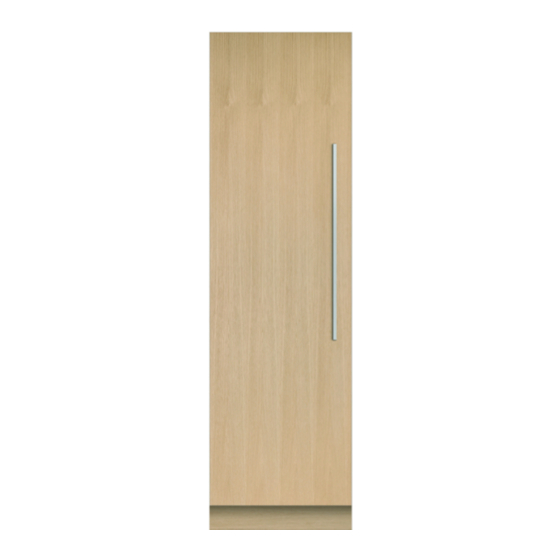

24'' integrated refrigerator column - panel ready (interior white)
Hide thumbs Also See for RS2484SL1:
Table of Contents

Advertisement

Quick Links

Download this manual
The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us,
may be incomplete or may change without notice
24'' integrated refrigerator column - panel ready (interior white)
Selected Model
Model number
Dimensions
Overall Width (in.)
Depth (in.)
Overall Height (in.)
Exterior Appearence
Built-in
Seemeless Cabinetery Installation
Counter-Depth
Frontage Color
Concealed Hinges
Features
Configuration
Performance
Temperature Management System
Door swing
Interior Lighting
Sabbath Mode
Door opening angle
SmartTouch™ Control Panel
Icemaker
Automatic closing bins
Storage bin
Temperature zone
Capacity
Total Capacity
Interior Appearance
Door Wrappers
Interior
ActiveSmart™
Compressor Type
Defrost Type
Door Alarm
Multiflow Air System
Air Fan Management
Electrical Requirements
Volts; Hertz; Amps
Required units and accessories
Joiner kit (grey)
Accessories (Included)
Single Bottle Holders
Accessories (optionnal)
Contemporary Round Stainless Steel
Handle
Contemporary Series Square Stainless
Steel Handle
PRO Round Stainless Steel Handle
PRO Series Square Stainless Steel Handle AHV2-RD84
Accessories (required)
EZKleen™ Stainless steel door panel
Warranty
Full 2 years
5 years warranty
RS2484SL1
RS2484SL1
23 3/4''
24''
84''
Yes
Integrated into kitchen cabinetry
Yes
Custom Panels
Yes
Single-door integrated column refrigerator
3 cooling mode
ActiveSmart™
Right
LED, top and sides
Yes
90° to 115°
Interior, central
Factory-Installed
Yes
Transparent with white and aluminum
frame
2 independent refrigeration zones
12.4 cu.ft
White
White
Variable
Automatic
Yes
Yes
Variable speed
115V; 60Hz; 10 Amp
AJ-RS84LR
4
AHS-RD84
AHD3-RD84
AHD5RDSF (Thin SS)
AHD5RDSFB (Thin SS black)
AHC-RD84
AHP3RDSF ( SS, Brushed endcap)
RD2484R4D
Entire Appliance; In-Home; Parts & Labour
Sealed system (parts only)
