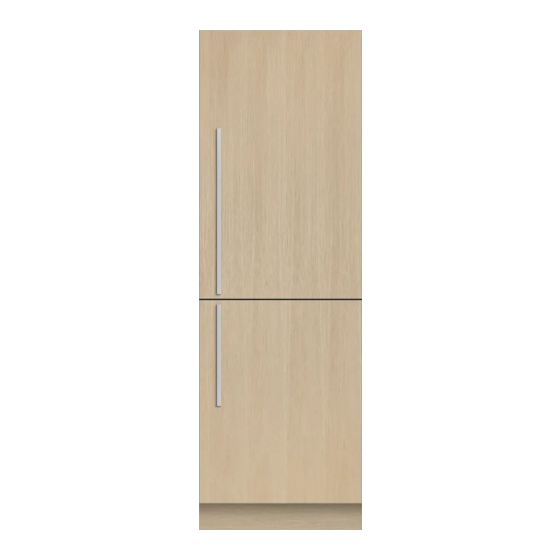

- Page 1 INTEGRATED REFRIGERATION INTEGRATED RS2474BRU Models INSTALLATION GUIDE US CA...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electric Shock Hazard Weight Hazard Failure to follow this advice may result in Failure to follow this advice may result in electrical shock or death. damage or personal injury. • Read and follow the safety and warnings before •... -
Page 4: Prior To Installation
PRIOR TO INSTALLATION INSTALLATION MILESTONES The appliance has front and rear rollers to easily move forward and backward. Do not move Milestone indicator the appliance sideways to avoid damaging the rollers or the floor covering/surface. Ensure your appliance is not exposed to any heat generating appliance eg cooktop, oven These milestones represent areas throughout or dishwasher. - Page 5 PARTS REQUIRED INSTALLATION KIT (INTERNAL BOX) Install kit D - Kit flow divider Install kit H - UI Trim kit Trim UI RS24 non Hinge Trim UI RS24 non hinge Trim UI RS24 Hinge LH Trim UI RS24 Hinge RH Door seal flow divider Screw SD #7X13 PAN Cap divider flow door...
-
Page 6: Parts Required
PARTS REQUIRED WATER FILTER KIT MISCELLANEOUS ITEMS (MI) PACK Braided hose, 7/16” x 24 Water filter Safety booklet Service and Warranty (comes fitted to product) JOINER KIT TRIM KIT To be ordered seperately for multiple installation. Joiner kit A Joiner kit B Joiner kit C Miscellaneous bracket joiner plinth... -
Page 7: Optional Accessories
OPTIONAL ACCESSORIES HANDLES DOOR PANELS Round handle set Round handle (2) M5x25 Hex screw (4) MODEL DESCRIPTION RD6019BR Right hinge door MODEL DESCRIPTION panel kit AHSRDB19 Round Handle Kit RD6019BL Left hinge door panel kit Square Fine handle set Square fine handle (2) M5x25 Hex screw (4) TOE KICK MODEL DESCRIPTION... -
Page 8: Tools Required
TOOLS REQUIRED Required tools Supplied tools Not supplied and must be provided by the installer. Powered driver Flathead screwdriver Measuring tape Cross-head Spanner L key combi M4 Ball allen key screwdriver PH2 T25 Cutter Hacksaw Hand truck Socket 8mm Nut driver... -
Page 9: Product And Cavity Dimensions
PRODUCT AND CAVITY DIMENSIONS RS2474BRU1 with Stainless Steel Panels RD2474BR, Handle Kit AHD5RDS74B and DATUM: FRONT OF CHASSIS Stainless Steel Toe Kick Panel AKRS2304 Left hand hinge is a mirrored version of the image shown. Left hand hinge can be achieved using supplied parts. - Page 10 PRODUCT AND CAVITY DIMENSIONS DATUM: FRONT OF CHASSIS NOTE: Left hand hinge is a mirrored version of the image shown. Left hand hinge can be achieved using supplied parts. PLAN VIEW DATUM: FRONT OF CHASSIS Product Dimensions 5/32" a Overall height of product 1880 B Overall width of product 23 5/16...
-
Page 11: Cavity Preparation
CAVITY PREPARATION ALTERNATIVE AREA ABOVE CAVITY FOR ELEC / WATER CONNECTION 4" NOTE: Left hand hinge is a mirrored version of the image shown. For ease of installation, ensure cavity has consistent dimensions top to bottom and left to right. FINISHED RETURN CAVITY SIDES &... - Page 12 SERVICES Specifications Electrical Supply 115 VAC, 60 Hz Service 10 amp circuit Plumbing Supply Braided hose, 7/16” x 24 UNS Pressure min 40 psi (150 kPa) max 120 psi (827 kPa) @ 68°F (20°C) NOTE: Recommended that services are routed to the adjacent cabinet. Hose and Cord Lengths Electrical a Power cord length (from the left edge of the product)*...
-
Page 13: Custom Panel Dimensions
CUSTOM PANEL DIMENSIONS NOTE: Left hand hinge is a mirrored version of the image shown. Left hand hinge can be achieved using supplied parts. Custom Panel Dimensions a Height of top door panel 39 13/32 1001 B Height of bottom door panel 28 7/16 723 – 858 – 33 3/4... -
Page 14: Custom Panel Preparation
CUSTOM PANEL PREPARATION 11 5/8 REAR VIEW 10 1/16 9 1/2 2 1/8 4 3/4 3 7/16 1 13/32 4 15/16 1 31/32 15 7/8 25/32 3 17/32 1 31/32 29 1/8 TOP PANEL 39 13/32 Custom Panel Preparation Dimensions are shown in inches (in). 9 9/32 2 3/8 Dimensions apply for the preparation and installation of custom panels... - Page 15 DOOR CLEARANCES CLEARANCES CONFIGURATIONS RS2474BRU1 with Stainless Steel Panels RD2474BR, Handle Kit AHD5RDS74B and Stainless Steel Toe Kick Panel AKRS2304 Left hand hinge is a mirrored version of the image shown. Left hand hinge can be achieved using supplied parts. RS2474BRU1 with Stainless Steel Panels RD2474BL, Handle Kit AHD5RDS74B and Stainless Steel Toe Kick Panel AKRS2304 WALL...
- Page 16 PRIOR TO INSTALLATION CHECK CAVITY CHECK PANELS Measure alcove dimensions. Ensure all minimum specs have been met. Ensure all door and toe kick panels are square and set up to the correct If alcove depth is greater than 24” specifications. Refer to ‘custom panel (610mm), a spacer will need to be preparation’...
- Page 17 UNPACK PRODUCT Keep all packing materials until the unit has been inspected. Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &...
-
Page 18: Install Anti-Tip Bracket
INSTALL ANTI-TIP BRACKET For solid wall installs: Using the bracket as a guide, pre- Check for wall stud. drill four holes into the wall or spacer. Secure bracket using crosshead screws. Install kit A For masonry wall installs: Using the bracket as a guide, pre-drill four holes into the wall. - Page 19 HINGE SWAP (OPTIONAL) Open the door and remove the door shelves. Unclip hinge covers from middle hinges. Loosen the hinge Check plates are positioned correctly. screws using the supplied Torx T25 driver. Slide the door out and place onto a protected surface. Install kit D Swap hinges as illustrated.
- Page 20 HINGE SWAP (OPTIONAL) JOIN PRODUCTS (MULTIPLE PRODUCT INSTALLS ONLY) Secure the bracket at the front base Partially refit the 4x hinge screws. using four screws. Joiner kit A Swap alcove bracket with the hinge Secure the bracket at the front top bracket.
- Page 21 JOIN PRODUCTS (MULTIPLE PRODUCT INSTALLS ONLY) DEPTH GAUGES & SPACER Clip both hinge spacers onto the product. Ensure spacer is fitted to the top of the product and spacer is fitted to the Repeat process for additional products. bottom of the product, for right-hand hinge installations and vice versa for left-hand hinge installations.
- Page 22 SERVICE CONNECTIONS OUTSIDE ALCOVE Connect to tap and turn on. If water is Route the hose from rear of product running, check for leaks. through to front corner. Connect to outlet and turn power on. Remove the cap from the valve before connecting the hose and tighten.
- Page 23 SERVICE CONNECTIONS INSIDE ALCOVE Route the hose from rear of product Connect to outlet and turn power on. through to front corner. Push product into alcove. Push in until Remove the cap from the valve before the gauges touch the alcove end. Ensure connecting the hose and tighten.
- Page 24 ADJUST HEIGHT IN CAVITY SECURE PRODUCT Turn the righthand screw to adjust the Open the door and secure following Rear adjustment rear of the product followed by the the sequence shown. The longer screws lefthand screw to adjust the front. Turn should be used where shown in blue, and clockwise to raise and anti-clockwise the smaller screws where shown in red.
- Page 25 DOOR PANEL PREP CUSTOM PANEL Recheck door panel size and specifications ensuring all bracket locations have been marked. Refer to page 14 for details. Align the side brackets to panel. Alternately, the supplied door panel template can be used to mark bracket locations.
- Page 26 DOOR PANEL PREP STAINLESS STEEL PANEL Determine the panel orientation based on the hinge and handle position. Remove all blue tape from the panel. Remove the four handle plugs from the Align the side brackets to the pre-drilled door panel. Align and secure handle holes on the panel.
- Page 27 ALIGN DOOR PANEL SECURE DOOR PANEL Ensure side brackets are disengaged Ensure top mounting screws have and the top mounting screws have been loosened and sit at their been loosened. Rotate the mounting lowest position. studs clockwise to lower the panel and anticlockwise to raise it.
- Page 28 SECURE DOOR PANEL FIT TRIMS AND GRILLE Open the door and loosen the lower bracket screw. Adjust the bracket until it Fit the top cover using two screws. rests against the door panel. Re-tighten Ensure flat side faces out from the the screw and fit an additional screw to panel.
- Page 29 FIT TRIMS AND GRILLE CENTRE TRIM INSTALL (MULTIPLE PRODUCT INSTALLS ONLY) Locate trim between products. Lower Hinge swap installs only: trim before pushing in to ensure bottom connector bracket clears the Swap the bottom hinge and non-hinge grille. Slide trim up until it slots into the trims on the grille.
- Page 30 TOE KICK PANEL PREP SECURE TOE KICK Recheck toe kick panel size and Loosen the screws on both toe kick specifications. Refer to page 13 depth adjustment brackets. for details. Measure distance from floor to bottom of grille to determine the position of the Slide both depth adjustment brackets toe kick mounting plate.
- Page 31 SECURE TOE KICK WI-FI SET UP Your appliance may be connected to your home wireless network and operated remotely using the app. Ensure your home Wi-Fi network is turned on. Measure the distance between the You will be given step by step guidance on both your appliance and mobile device. bottom of the door and the base of It may take up to 10 minutes to connect your appliance.
- Page 32 FLUSH WATER THROUGH THE WATER DISPENSER FLUSH WATER THROUGH THE ICE MAKER Ensure power and water connections Ensure power and water connections have been turned on. have been turned on. Fridge 3.0 °C Press the water dispenser pad and Fridge Fridge 37.0°F dispense a total of 2 Gallons of water.
-
Page 33: Replacing Water Filter
REPLACING WATER FILTER INSTALLER CHECKLIST Hinge limiting pins have been fitted if required Installer mode has been Push grille flap to access filter. Pull tool exited outwards to remove. All trims have been secured at all attachment points All panel gaps and any potential clashing points have been checked All covers are in place... - Page 34 SAFE PRODUCT REMOVAL Empty contents. Remove the flow divider and panel bracket before removing all door panel side screws and the M8 washer and nut. Lift panel up and out to remove. Reverse the installation process to remove from alcove. Ensure doors are taped shut and safe handling practices are observed.
- Page 35 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2022. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
