Hussmann IMPACT ED1 Installation And Operation Manual
Euro deli service merchandisers
Hide thumbs
Also See for IMPACT ED1:
- Technical data sheet (6 pages) ,
- Installation instructions manual (9 pages) ,
- Installation instructions manual (15 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hussmann IMPACT ED1
Summary of Contents for Hussmann IMPACT ED1

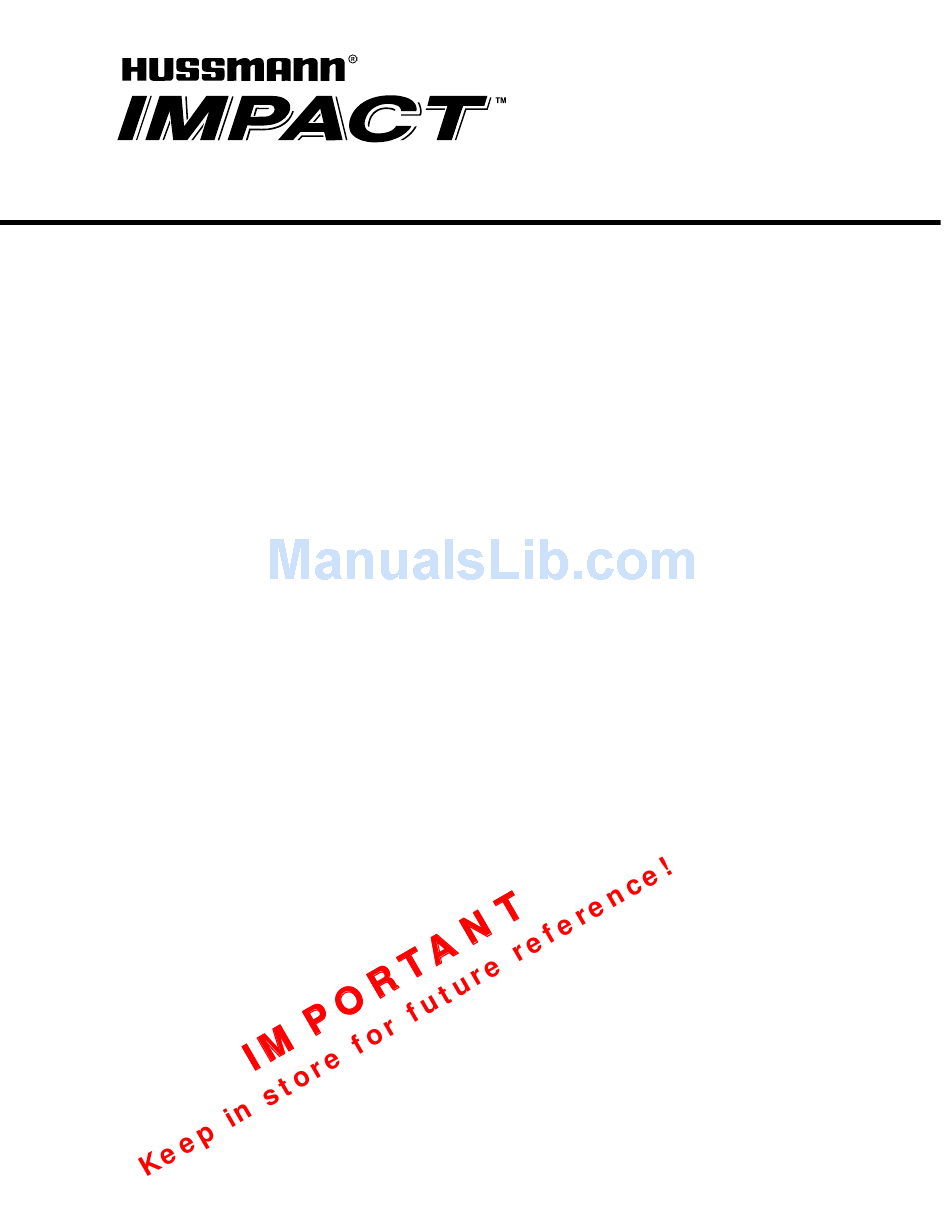

- Page 1 Merchandisers Euro Deli Service Merchandisers Delicatessen Merchandisers (Includes Wedge Installation) Installation & Operation Manual Shipped With Case Data Sheets P/N 406928. Impact Series April 2001...
-
Page 2: Table Of Contents
P/N 406928 INSTALLATION Location ......1-1 Front Glass Caution ....1-1 Shipping Damage . -
Page 3: Location
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) I I N N S S T T A A L L L L A A T T I I O O N N Read before raising front glass. -
Page 4: Shipping Damage
NSTALLATION WARNING Do NOT remove shipping braces until the merchandisers are positioned for installation. SHIPPING DAMAGE All equipment should be thoroughly examined for shipping damage before and during unloading. This equipment has been carefully inspected at our factory. Any claim for loss or damage must be made to the carrier. -
Page 5: Leveling
8 ft (2438 mm) cases, or 8 legs on 12 ft (3658 mm) cases. Note: To avoid removing concrete flooring, begin lineup leveling from the highest point of the store floor. HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) Level on Upper Front Panel Adjustable... -
Page 6: Joining Instructions
NSTALLATION JOINING INSTRUCTIONS Sectional construction means that two or more merchandisers may be joined in line yielding one long continuous display requiring only one pair of ends. All joints must be air-tight to prevent formation of ice or condensation. Refer to the detailed information provided in the separate Joining Instruction shipped with each case. -
Page 7: Refrigerant
The interconnecting piping may be run outside the case. HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) Display Pan Piping Location Line Sizing... -
Page 8: Insulation
EFRIGERATION INSULATION The suction and liquid lines should be clamped or taped together and insulated for a minimum of 30 ft (9144 mm) from the merchandiser. Additional insulation for the balance of the liquid and suction lines is recommended wherever condensation drippage is objectionable or lines are exposed to ambient conditions. -
Page 9: Control Settings
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) REFRIGERATION THERMOSTAT The bulb for the optional refrigeration thermostat is located in the discharge air of the evaporator. -
Page 10: Merchandiser Electrical Data
EFRIGERATION MERCHANDISER ELECTRICAL DATA Merchandiser data sheets are shipped with this manual. The data sheets provide case electrical data, electrical schematics, parts lists and performance data. Refer to the merchandiser data sheets and case serial plate for electrical informa- tion. ELECTRICAL CONNECTIONS All wiring must be in compliance with NEC and local codes. -
Page 11: Waste Outlet And Water Seal
3. Pitch the drip piping in the direction of flow. There should be a minimum pitch of foot (3 mm per 300 mm). HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) 4. Avoid long runs of drip piping. Long runs make it impossible to provide the pitch neces- sary for good drainage. -
Page 12: Installing Splashguard And Lower Front Panel
IPING AND INSTALLING SPLASHGUARD AND LOWER FRONT PANEL Make certain that the end assemblies, end splashguards and end panels have been installed according to the End Kit instruction. The splashguard and lower front panel are After shipped inside each case. have been leveled and joined, and all drip pip- ing, electrical and refrigeration work has been completed, install the splashguard and lower... - Page 13 LH-End Panel LH-End Splashguard Lower Front Panel Tab 3 for 8 ft 4 for 12 ft Front Splashguard Retainer / Bracket 3 for 8 ft — 4 for 12 ft Skid Leveler Assembly Lower Front Panel Front Splashguard Detail Base Screws Rail RH End...
-
Page 14: Installing Bottom Rear Panel
IPING AND INSTALLING BOTTOM REAR PANEL For fixed installation: 1. Align slots in bottom rear panel with center of legs. 2. Drive a hex head sheetmetal screw through each slot into each leg. P/N 406928 PLASHGUARDS... -
Page 15: Start Up
The TEV has been factory set to provide the recommended performance settings as specified on the merchandiser data sheets. HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) STOCKING Product should NOT be placed in merchandisers until case is at proper operating temperature. -
Page 16: Load Limit Profiles
TART UP PERATION LOAD LIMIT PROFILES Load Limit Load Limit EDS1 P/N 406928... -
Page 17: Care And Cleaning
Allow glass fronts, ends, and service doors to warm before applying hot water. HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) M A A I I N N T T E E N N A A N N C C E E •... - Page 18 AINTENANCE INTERIOR CLEANING STEPS WARNING Do NOT allow product to sit in a non-refrigerated area. STEP 1 – Remove product to cooler. 41°F (5°C) STEP 2 – Turn off refrigeration. STEP 3 – Shut power off. Note that refrigeration controls and power controls are not in the merchandiser.
- Page 19 STEP 7 – Lift out return air grille (from front). STEP 8 – Rotate fan plenum up and back; hook chain at rear of liner. HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) Unplug fan harness. Lift fan plenum up and back to remove.
-
Page 20: Removing Scratches From Bumper
AINTENANCE STEP 9 – Clean inside the merchandiser. Once interior parts have been removed, collect loose debris for removal. Do not clog waste outlet. STEP 10 – Clean and sanitize according to local requirements. STEP 11 – Reassemble in reverse order. Turn on power, then refrigeration. -
Page 21: Replacing Fan Motors And Blades
10. Verify that motor is working and blade is turning in the correct direction. HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) S S E E R R V V I I C C E E Always disconnect the electrical power... -
Page 22: Electrical Service Receptacles
ERVICE For access to ambient fans: 1. Turn off power. 2. Remove lower front panel. 3. Disconnect fan from wiring harness. 4. Remove screws holding motor and grille. 5. Replace fan motor and grille. 6. Reconnect fan to wiring harness. Turn power 7. -
Page 23: Replacing Fluorescent Lamps
Plastic Shield Fluorescent Lamp End Cap HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) REPLACING LAMP HOLDERS AND END CAPS The Hussmann Impact lamp holder is designed to snap into the sheet metal of the case. The lamp holder has a locking ‘nub’... -
Page 24: Replacing Electronic Ballast
ERVICE REPLACING ELECTRONIC BALLAST Lamp Ballast The lamp ballast are located in the raceway, behind the back lower panel at the left-hand end of the merchandiser (facing rear of case). NOTE: The switch for the lamp is located in this panel. To gain access: 1. -
Page 25: Replacing Cylinders
300N and 400N cylinders. 300N Cylinder – P/N 0412539 400N Cylinder – P/N 0406925 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) 1. Raise the front glass to open completely. 2. Use special hand tool, shown in photo, to compress and remove cylinder. -
Page 26: Replacing Single Pane Front Glass
ERVICE REPLACING SINGLE PANE FRONT GLASS (Requires more than one person.) WARNING Once set screws are loose, the glass and glass clamp have NO support or retainers. Support the front glass at all times until the top glass clamp and set screws are secured, or glass is removed. -
Page 27: Replacing Glass Hand Grip
P/N 0401884 Used on: 8 ft and 12 ft (2438 mm and 3658 mm) parent cases and as a joining bracket. HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.) Type: Two cylinders and three fastening points. P/N 0407352 Used on: 30° outside wedge. -
Page 28: Repairing Aluminum Coils
ERVICE REPAIRING ALUMINUM COIL The aluminum coils used in Hussmann merchan- disers may be easily repaired in the field. Materials are available from local refrigeration wholesalers. Hussmann recommends the following solders and technique: Solders Aladdin Welding Products Inc. P.O. Box 7188 1300 Burton St. - Page 29 The full product warranty is available from our website, www.hussmann.com To obtain additional information or other support, contact your Hussmann representative. Please include the model and serial number of the product. Hussmann Corporation, Corporate Headquarters: Bridgeton, Missouri, U.S.A. 63044-2483 01 July 2005...
