Hussmann impact elite e2v merchandisers: data sheet
Hide thumbs Also See for IMPACT Elite E2V:
1
2
3
4
5
6
7

Advertisement

Table of Contents

B
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
Item Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS

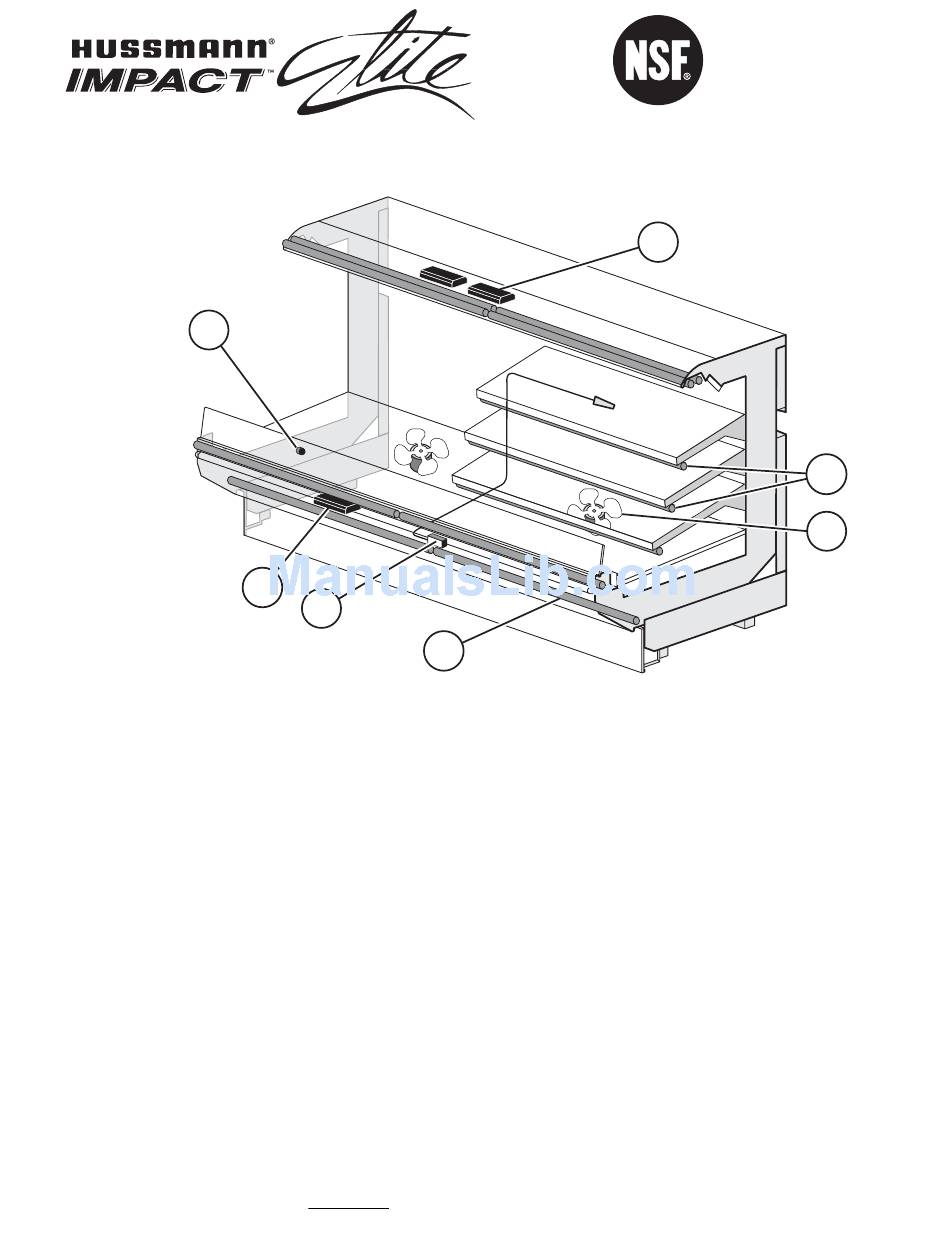

A. 7W Fan Assembly
Fan Motor, Evaporator
0058698
Standard (120V, 60Hz)
0439052
Energy Efficient Fan (120V, 60Hz)
0436516
Export (230V, 50 Hz)
0142780
Fan Blade, embossing toward motor
B. 0411744
Standard Non-adjustable
Defrost Thermostat
C. 0353949
Optional Adjustable
Refrigeration Thermostat
Note: Changed items have been underlined.
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
D
C
Wiring Item #
E
Item Part #
L
B
AMPS AND
D. 0466234
(1)
D. 0466235
D. 0466236
E.
(2)
(3)
Data Sheet Set
P/N 0475958
NSF
D
Description
ALLASTS
Ballast, Electronic
2 lamps
Ballast, Electronic
3 lamps
Ballast, Electronic
4 lamps
Fluorescent Lamp
Replace with like fixtures
E2V
®
Certified
October 2005
E
A
Wiring Item #
(4)
(4)
(4)
(5)
P/N 0475958
