WideSide View

WideSide View is only available if you have connected a WideSide transducer accessory and when
Transducer Select is set to WideSide (see Sonar Menu Tab: Transducer Select). The WideSide
transducer requires a separate purchase. The WideSide View displays information from the
455 kHz SideView transducer. Three views are available: Left, Right and Both. The default view is
Both. Information from both the left and right beams are displayed simultaneously. The depth of
the water beneath the boat is always displayed. A bottom contour may be present while bank
fishing or fishing river channels. When fishing in the open water, a bottom contour will not be
present, and only sonar returns from either debris or fish will be displayed.

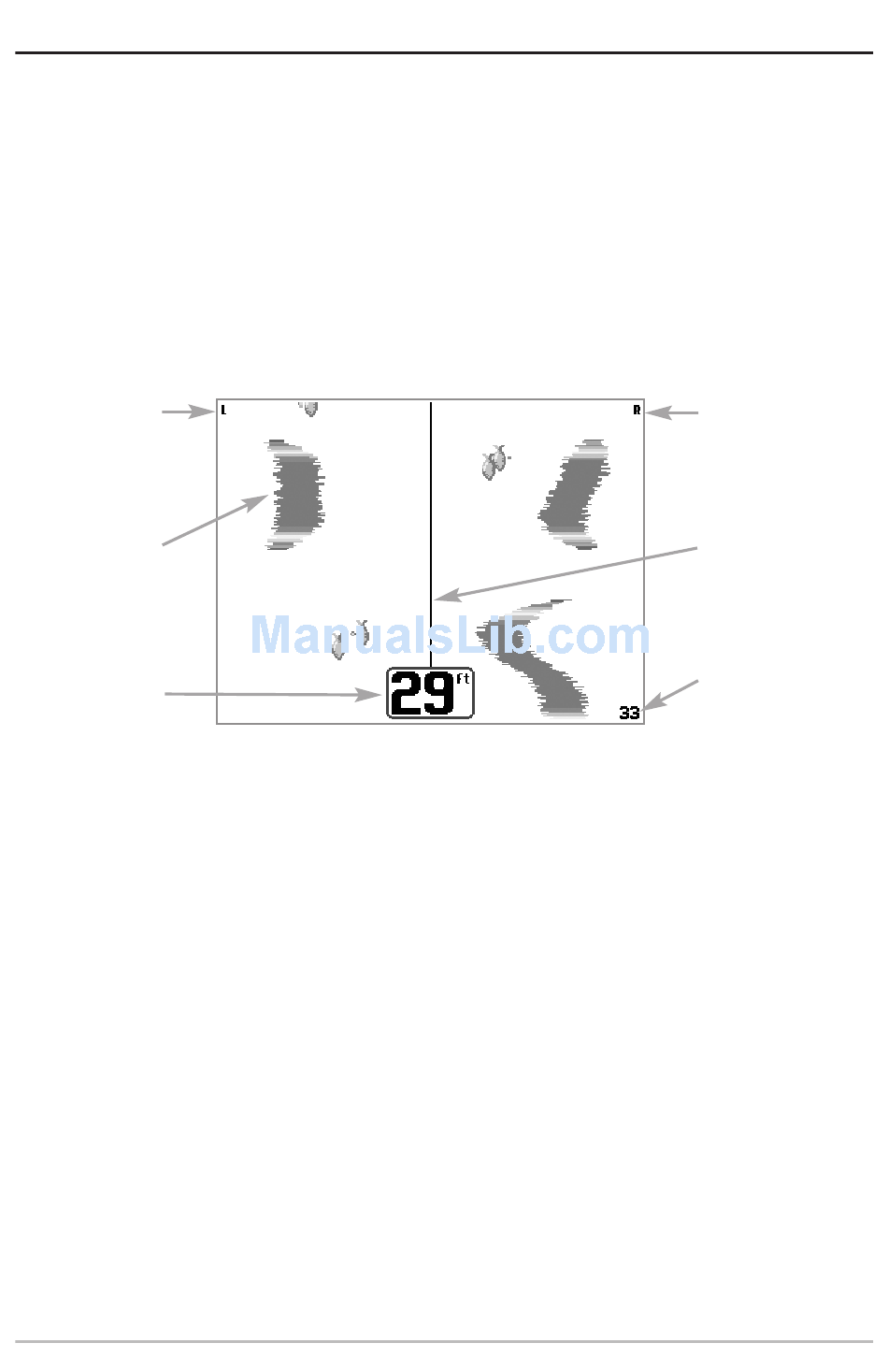

Left Side View
Bank Contour
Depth
WideSide View
Right Side View
Water
Surface Line
Side Beam
Depth Range
