Chart View

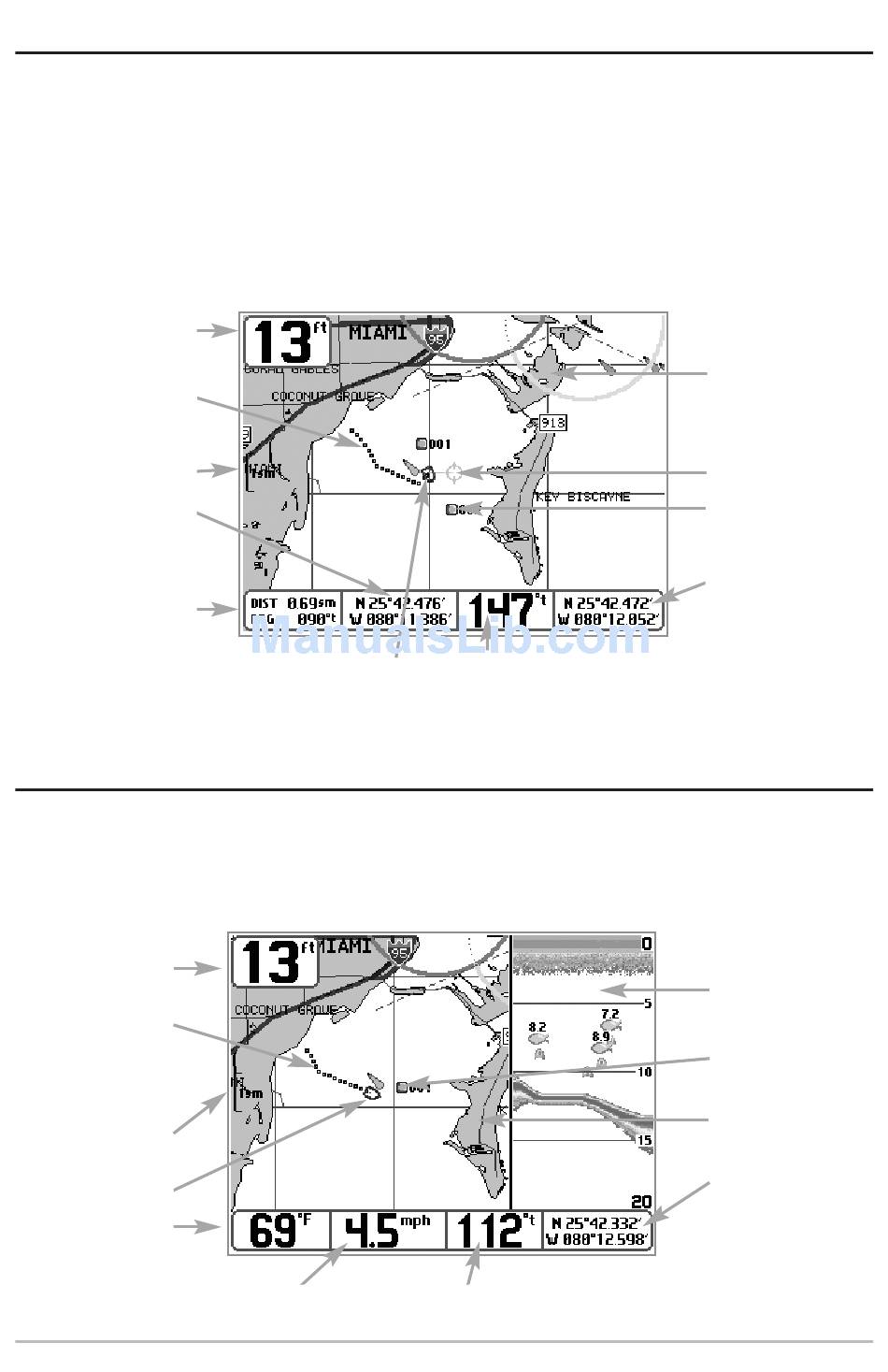

Chart View - This view shows cartography from the built-in UniMap or an optional MMC map for the
area surrounding your current position. The current track (also known as the position history or
breadcrumb trail) showing where the boat has been, along with saved tracks, waypoints, and the
current route (when navigating), are overlaid on the chart. You can use the 4-WAY Cursor Control key
to shift/pan the chart to another area. You can use the ZOOM (+/-) keys to zoom in and out. You can
use the INFO key to get information on the chart objects near the cursor.
Depth
Track
(Breadcrumb
Trail)
Map Scale
Latitude and
Longitude
Position of Cursor
Distance to
the Cursor
and Bearing
to Cursor

Combo View

Combo View - This view is displayed as a split screen, with Chart View on the left and Sonar View on
the right side of the screen. The width of the sonar window can be changed.
Depth
Track
(Breadcrumb
Trail)
Map Scale
Boat Icon
Water Surface
Temperature
Chart View with Active Cursor
Boat Icon
Combo View
Speed of Boat
Bearing of Boat with Respect
to True North
Bearing of Boat with Respect to True North
Cartography
Active Cursor
Waypoint
Latitude and
Longitude
Position of Boat
Sonar Window
Waypoint
Cartography
Latitude and
Longitude
Position of Boat
