What's On the Display

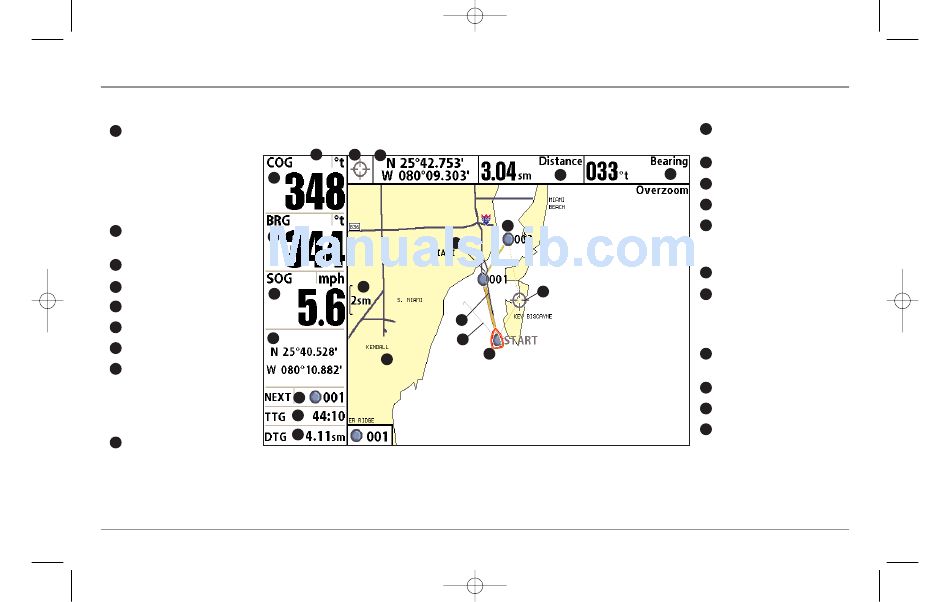

The 900 Series™ Chartplotter can display a variety of useful information.
Cursor Info Box: indicates the
1
Latitude and Longitude of the cursor position,
the distance to travel to the cursor position
and the bearing to the cursor position is
shown with a GPS receiver. A waypoint can
be marked at the cursor position for later
retrieval and use with a GPS receiver.
Latitude and Longitude
2
Position of Cursor
Distance to Cursor
3
Bearing to Cursor
4
Waypoint
5
Active Cursor Icon
6
Boat Icon
7
Course Projection Line: Arrow
8
extending from the bow of the boat that
projects your current course, and shows
where the boat will go if you continue on your
present course.
Route: Two or more linked waypoints
9
that show intended navigation and the
shortest path from one waypoint to the next.
5:03 PM Page 15
13 1
2
14
15
12
16
17
11
18
19
20
3
5
8
6
9
10
7
15
Track: Detailed position history,
10
displayed as a breadcrumb trail of trackpoints.
Cartography
11
4
Map Scale
12
Selectable Readout Boxes
13
Course Over Ground: the current
14
direction the boat is traveling measured in
degrees from North.
Bearing to Waypoint
15
Speed Over Ground: the measurement
16
of the boat's progress across a given
distance, and is the speed measurement
provided by GPS.
Latitude and Longitude
17
Position of Boat
NEXT: Next Waypoint in the Route
18
TTG: Time to Go to Waypoint
19
DTG: Distance to Go to Waypoint
20
