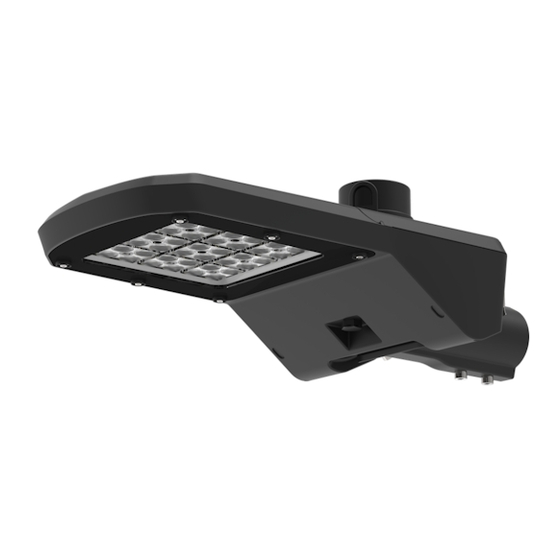

BOSS ILLUMINATION NIMBUS S Product Manual

NIMBUS
STREET LIGHT
PRODUCT SPECIFICATIONS
Input Voltage : 100-240VAC
Operating Temperature : -10 to 40°C
Material : Aluminium
60mm 66
IP
PARTS INCLUDED
x1
LED Cable NEMA 7-pin
Luminaire S: 10m base
M: 15m
L: 15m
OPTIONAL COMPATIBLE PARTS sold separately
Photocell 60mm
to 40mm
adapter
WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will fix
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specifications and other information, modify products and discontinue items without prior notification.
© 2020
COPYRIGHT BIA V
08
IK
NEMA 3-pin
blank module
08.20
Disclaimer: Please read this product
manual carefully before installing the
product.
Warranty is void if installation
guidelines are disregarded, if the
product has been modified, or if
damage is caused by misuse or
improper installation.
Images, drawings and diagrams are for
illustrative purposes only.
BIA products are manufactured
and certified in accordance with all
mandatory Australian Standards.
Technical data and information subject
to changes. Please visit our website
for latest version.
PRODUCT VARIANTS
Nimbus S: 10W
20W
30W
40W
50W
Nimbus M: 60W
75W
90W
Nimbus L: 130W
180W
CCT: 3000K
4000K
5000K
ADDITIONAL INFORMATION
1. NEMA socket is compatible with third party NEMA outdoor
lighting controllers.
2. If cleaning maintenance is required, disconnect from mains
supply and allow luminaire to cool. Use a clean microfibre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
3. Do not use harsh chemicals or solvents. Do not use high pressure
cleaners.
4. Care must be taken during installation and maintenance to
prevent accidental damage to the surface of the luminaire. These
damages may result in corrosion.
page 1 / 3
P R O D U C T M A N U A L
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
Beam Angle: Type II
Type III
Type IV
Dimming: Non-dimmable
1-10V
DALI
Yes
Photocell:
No
Black
Colour:
Dark grey
NEMA Base: 3-pin
5-pin
7-pin
www.bia.lighting | sales@bia.lighting
