BOSS ILLUMINATION MAGNA 3 Product Manual

3
MAGNA
INGROUND LIGHT

PRODUCT SPECIFICATIONS

Power : 3W
Input Voltage : 12V / 24V DC
Operating Temperature : -10 to 40°C
Material : Stainless Steel 316
Cutout Size : Ø65mm
68 10
IP IK

PARTS INCLUDED

x1
Luminaire

SOLD SEPARATELY

Driver Canister
WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change speci cations and other information, modify products and discontinue items without prior noti cation.
© 2020
COPYRIGHT BIA V
08.20
Disclaimer: Please read this product
manual carefully before installing the
product.
Warranty is void if installation
guidelines are disregarded, if the
product has been modi ed, or if
damage is caused by misuse or
improper installation.
Images, drawings and diagrams are for
illustrative purposes only.
BIA products are manufactured
and certi ed in accordance with all
mandatory Australian Standards.
Technical data and information subject
to changes. Please visit our website
for latest version.

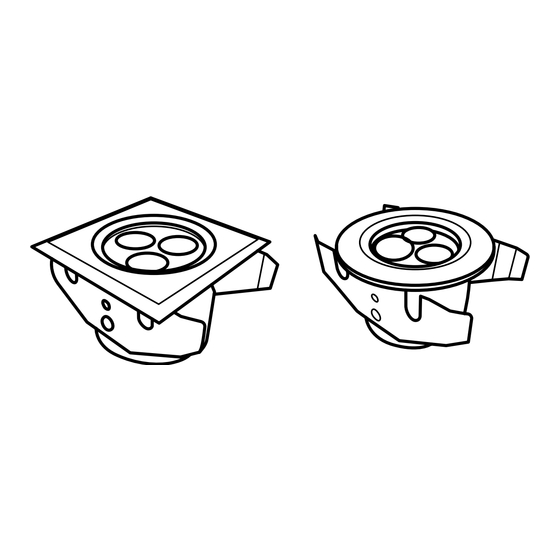

PRODUCT VARIANTS

Round
Fascia :
Square
CCT : 3000K
4000K
6000K
RGB
Beam Angle: 20°
60°

ADDITIONAL INFORMATION

1. This product can be installed directly into decking.
2. Canister is required for installation into concrete slab.
3. The face of the light tting must be installed ushed against
the surface.
4. Installation on uneven surfaces is not recommended.
5. Ensure the prepared cable is of the correct size and length.
6. Adequate drainage must be prepared underneath the light/
canister.
7 . If cleaning maintenance is required, disconnect from mains
supply and allow luminaire to cool. Use a clean micro bre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
8. Do not use harsh chemicals or solvents. Do not use high
pressure cleaners.
9. Care must be taken during installation and maintenance to
prevent accidental damage to the surface of the luminaire.
These damages may result in corrosion.
page 1 / 2
P R O D U C T M A N U A L
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
Dimmable Input Voltage
No 12V / 24V DC
No 12V / 24V DC
No 12V / 24V DC
PWM 24V DC
www.bia.lighting | sales@bia.lighting
