block. Connect the Port MicroCommander Actuator eight (8)
conductor cable to the "Engine 2" terminal block inside the
Distribution Box (see Figure 24). Connect per the color code
marked on the terminal block.
Port
Actuator
Starboard
Actuator
Power
Hand Held
Remote Control
The following cables are Dealer supplied;
• DC Power Cable
• Engine Stop Cables (Two [2] Conductor Start Interlock
Cable)
• Distribution Box to Actuators
Pc.No. 350)
Cable grips are provided with the Distribution Box. These are to
be used with the Dealer supplied cables for making penetrations
into the Distribution Box.
THIS PRODUCT IS INACTIVE!
_
+
TO BATTERY
12/24/32 VDC
FUSE

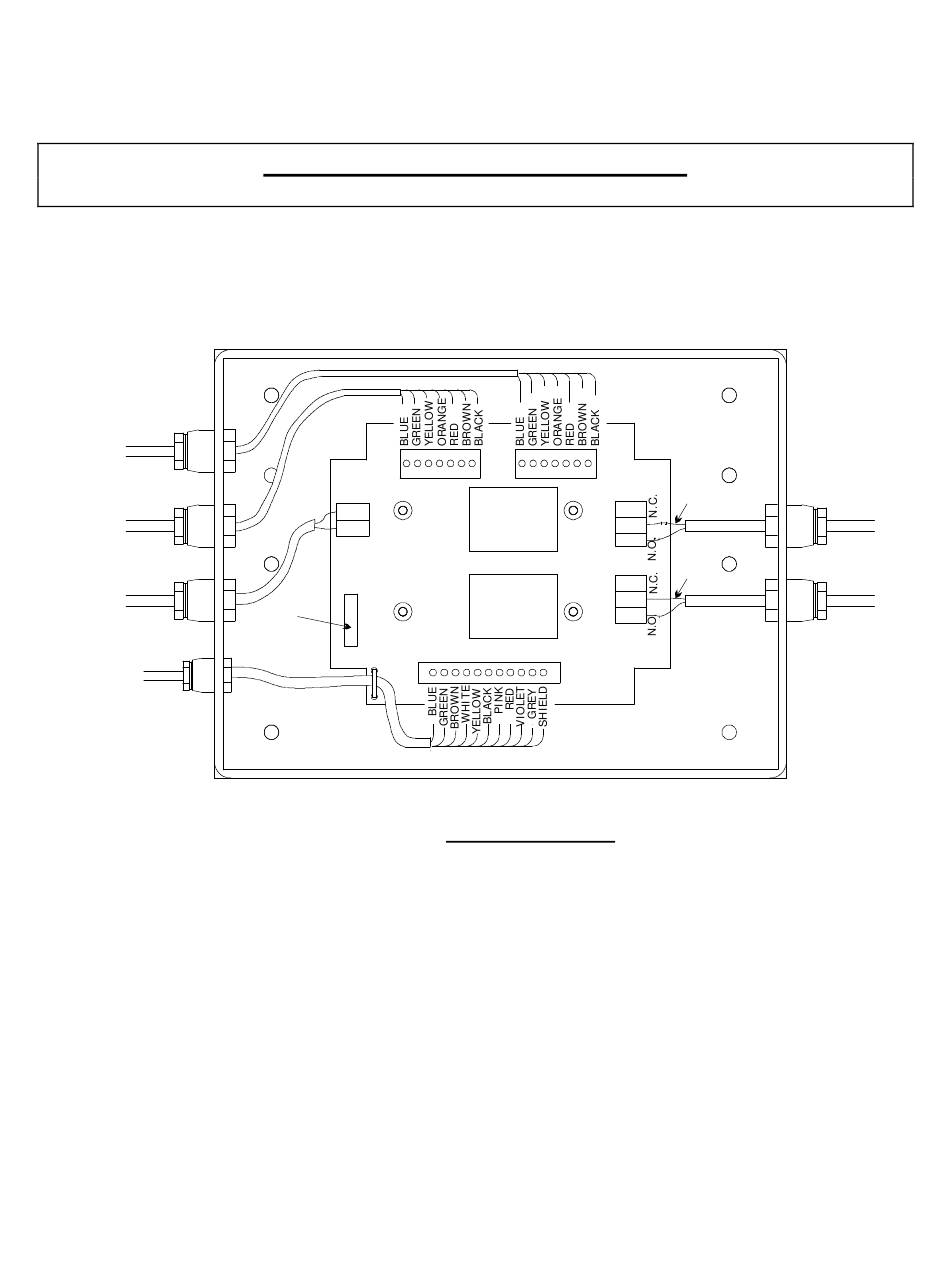

Figure 24 – Distribution Box
(Two [2] Conductor Power Cable)
(Eight [8] Conductor,
Page 54
COM
PORT
STOP
COM
STBD
STOP
0668
