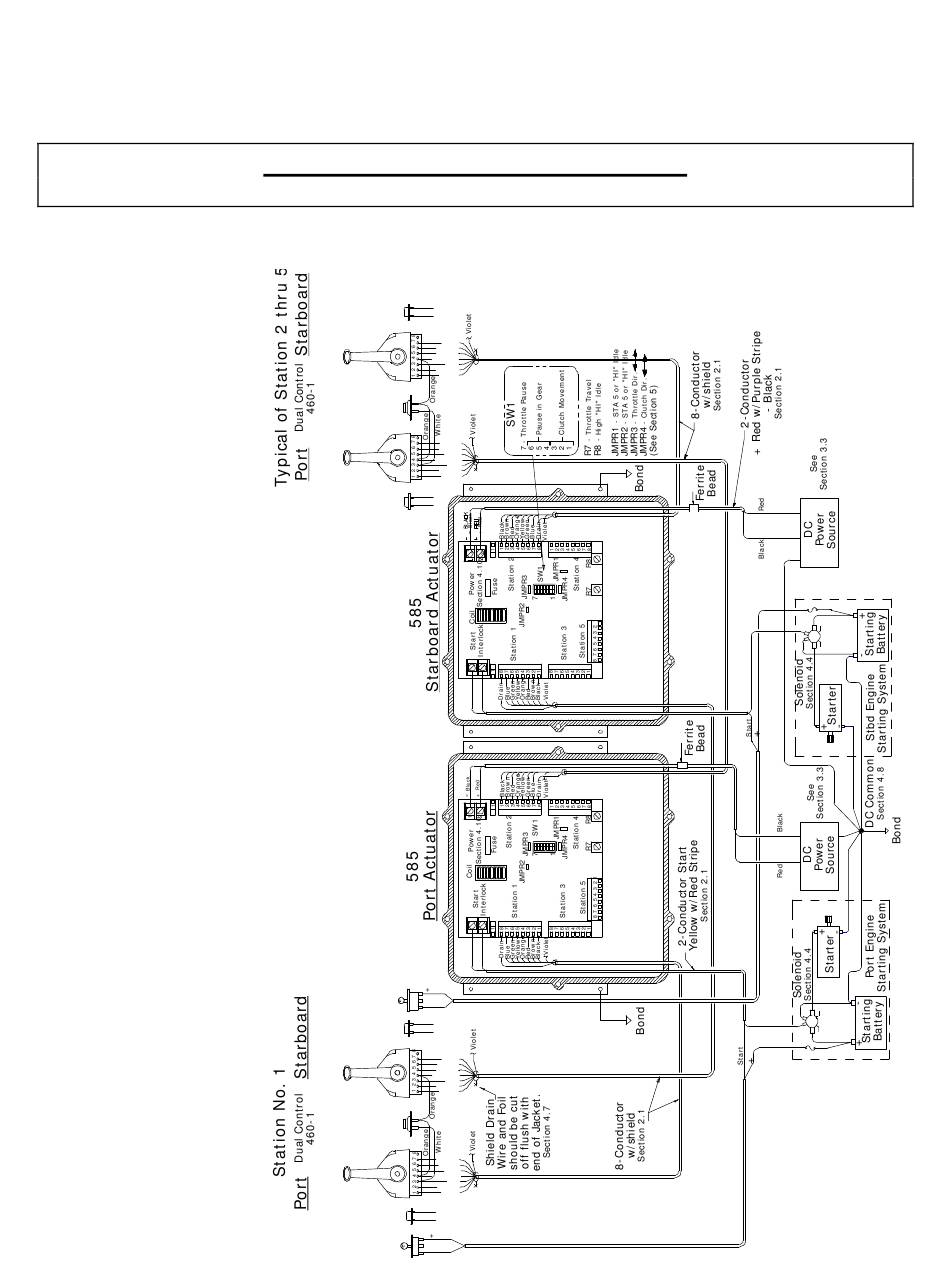

14. TWIN SCREW CIRCUIT

THIS PRODUCT IS INACTIVE!
Engine Stop
(by others)
Section 4.5
Blue
Green
Yellow
Orange
Brown
Black
Station
Transfer Button
Section 4.3
Yellow
Green
Orange
Brown
Black
Engine Stop
(by others)
Section 4.5
Engine Start
(by others)
Start
Section 4.4
Engine Stop
(by others)
Section 4.5
Green
Yellow
Orange
Brown
Black
Station
Transfer Button
Section 4.3
Yellow
Green
Orange
Brown
Black
Engine Stop
(by others)
Section 4.5
Engine Start
(by others)
Start
Section 4.4
Red
Blue
Red
Blue
Red
Blue
Red
Page 37
