Bin Master C-100-R Operator's Manual page 22

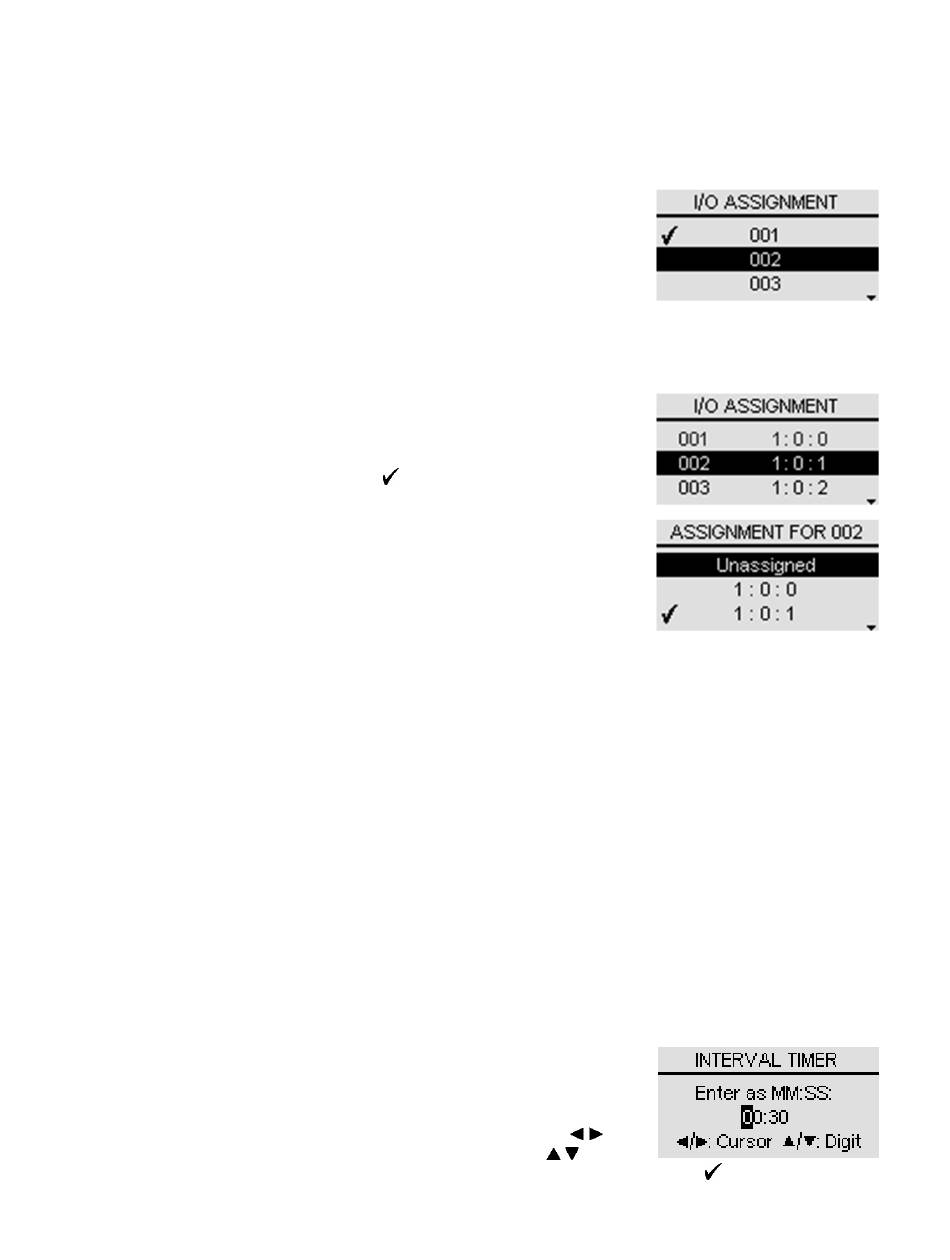

I/O Assignment
This is a menu for assigning sensors to I/O ports. The operator must use Add/Remove or Auto
Add/Remove prior to using this menu. This menu will differ depending on whether the C-50 Setup
was enabled or disabled.
If C-50 setup is disabled, then this menu will be for assigning any
single sensor to the C-100-R's onboard I/O (External Start input and
4-20mA output). The operator simply selects the address of any
single sensor in this list, but it defaults to the first address available
in the list.
If C-50 setup is enabled, then the operator will use this menu for viewing the current assignments
between multiple sensors and multiple I/O ports located on the C-50 network. On the left is the
address of the sensor and to its right is the I/O port that is assigned to it. The I/O port is displayed
in the format c:s:p, where c is the expansion console's address (1 to 5), s is the slot/card position
(0 to 5) and p is the slot/card's port (0 to 3).
information on addressing, slots/cards and ports, please refer to the
Model C-50 Operators Manual.
particular sensor, position the selection bar on the address of that
sensor to be changed and press
for assigning a different I/O port to that sensor. The operator can
choose to unassign a sensor address or reassign to any I/O port
listed in this menu; however, only I/O ports that are currently
available and unassigned will be listed. To swap the assignments
of two sensors already assigned to I/O ports, you must first
unassign one of them, then reassign the second one and finally go
back and reassign the first one.
4-20mA Output
This is a menu for setting what the 4-20mA Output will represent; the operator can choose between
Product and Headroom. The default setting is Product.
When weight calculations are disabled, this output is a percentage of the headroom height or
product height. When weight calculations are enabled, this output is a percentage of the headroom
weight or product weight.
4-20mA Error
This is a menu for setting what the 4-20mA output error level will be, the operator can choose
between 2mA and 22mA. This error level will be programmed to the output whenever the last
measurement produced an error condition. The default setting is 22mA.
Interval Timer
The interval timer allows the operator to enable and configure the console to take multiple automatic
timed measurements. The selections are On/Set and Off. The default setting is Off.
After selection of On/Set, a setup screen appears for entering the
timer value in minutes and seconds. Enter any amount of time from
0 seconds (continuous) to 49 minutes and 59 seconds in the format:
MM:SS. One second would be 00:01 and 60 minutes would be
60:00. The timer is adjusted one digit at a time. Use the
to select a digit by repositioning the cursor and the
adjust the selected digit. Once all four digits have been entered, press the
925-0389 rev A
For additional
To reassign the I/O port of a
. This will display another menu
/
22
/ keys
keys to
key.
