4.2.1 Main Menu
The Main menu has two selections: Measure/View and Setup. Select Measure/View if you want to take
an immediate measurement or view the results of the last automated measurement. Select Setup if you
need to change user display preferences, setup vessel parameters, sensor network settings or configure
the Expansion network. The main menu is at the top of the menu system, so pressing the
have no effect.

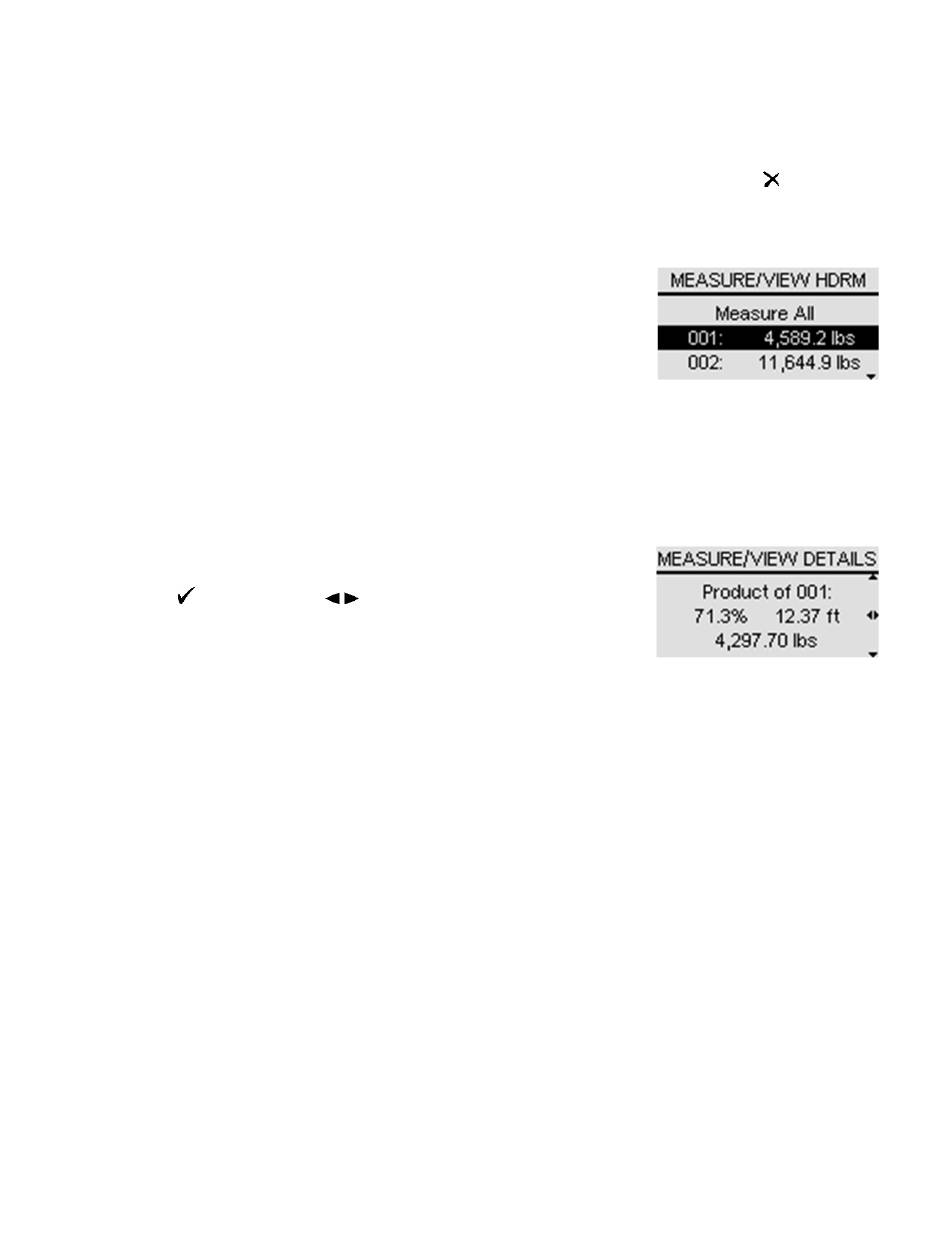

4.2.2 Measure/View
The Measure/View menu provides a full listing of all the last measurement
results and a means to initiate a measurement. It will always have at least
two selections. The first selection will always be Measure All and selecting
it will immediately start a measurement process on all configured sensors.
The second selection and any following selections will contain the last
measurement data next to its associated sensor address. Note that sensors
are identified by their address and are always displayed with three digits ranging from 001 to 120. Selecting
any of the measurement data will bring up the details screen for that sensor. If there is only one sensor
configured on the network, then there will only be two selections in this menu. If you have multiple sensors
configured, then you can scroll through this menu to see them all. The title bar will also indicate whether
the measurement data is of the headroom (Hdrm) or of the product (Prod), as set under Measurement
Format. Note that 'headroom' refers to the upper empty space in the tank and 'product' refers to the lower
filled space.
The details screen displays additional data for a particular sensor and
provides a means to take a measurement with that particular sensor by
pressing the key. Use the
(capacity, headroom and product) for the selected vessel and sensor. In
each mode, the percentage and height are displayed, as is volume or weight
if weight calculations are enabled.
present, the operator can scroll to other sensor measurement results.
The accuracy of these readings is dependent on both the sensor reading and the vessel parameters entered
into Vessel Setup.
4.2.3 Setup
The Setup menu has selections for setting user preferences, configuring the sensor network, the Expansion
network and defining sensors and associated vessels. All settings and configurations made will be retained
during a loss of power.
Sensor Type
This is a menu for selecting the type of sensor installed or in use on the sensor bus/network (SB-
485), the operator can choose NCR-80/GWR-2000 or SmartSonic. The default setting is NCR-
80/GWR-2000.
All devices on the sensor network must be configured to use the same baud rate, data bits, parity
and stop bits. The NCR-80 and GWR-2000 requires 9600 baud, 8 data bits, no parity and 1 stop
bit. The SmartSonic requires 19,200 baud, 8 data bits, no parity and 1 stop bit. The sensor type
must be configured prior to running Auto Add/Remove or any measurement process.
925-0389 rev A
/ keys to cycle through all the data
If the vertical scroll indicators are
18
key here will
