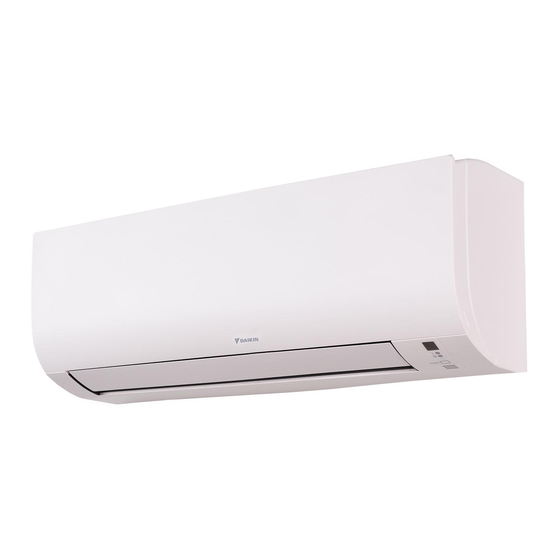

Daikin room air conditioner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTXP60N2V1B and is the answer not in the manual?

Questions and answers

Related Manuals for Daikin FTXP60N2V1B

Summary of Contents for Daikin FTXP60N2V1B

  • Page 1 User reference guide Daikin room air conditioner FTXP50N2V1B FTXP60N2V1B FTXP71N2V1B...

  • Page 2: Table Of Contents

    Symptom: A sound like water flowing is heard ..................... 36 8.1.2 Symptom: A blowing sound is heard......................36 8.1.3 Symptom: A ticking sound is heard........................ 36 8.1.4 Symptom: A whistling sound is heard......................36 User reference guide FTXP-N Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 3 Symptom: The outdoor fan rotates while the air conditioner is not in operation ........37 Solving problems based on error codes ......................... 37 Troubleshooting for wireless LAN connection ....................... 38 9 Disposal 10 Glossary FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 4: About The Documentation

    User reference guide: Detailed step-by-step instructions and background information for basic and advanced usage Format: Digital files on https://www.daikin.eu. Use the search function find your model. Latest revisions of the supplied documentation may be available on the regional Daikin website or via your installer.
  • Page 5 Example: " 1–3 Figure title" means "Figure 3 in chapter 1". Indicates a table title or a reference to it. Example: " 1–3 Table title" means "Table 3 in chapter 1". FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 6: User Safety Instructions

    Do NOT place any objects containing water on the unit. CAUTION ▪ Do NOT place any objects or equipment on top of the unit. ▪ Do NOT sit, climb or stand on the unit. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 7: Instructions For Safe Operation

    The refrigerant inside this unit is mildly flammable. CAUTION Do NOT insert fingers, rods or other objects into the air inlet or outlet. When the fan is rotating at high speed, it will cause injury. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 8 CAUTION Do NOT operate the system when using a room fumigation-type insecticide. Chemicals could collect in the unit, and endanger the health of people who are hypersensitive to chemicals. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 9 WARNING Improper detergents or cleaning procedure may cause damage on plastic components or water leakage. Splashed detergent on electric components, such as motors, may cause failure, smoke or ignition. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 10 Stop operation and shut OFF the power if anything unusual occurs (burning smells etc.). Leaving the unit running under such circumstances may cause breakage, electrical shock or fire. Contact your dealer. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 11: About The System

    INFORMATION The following figures are just examples and may NOT completely match your system layout. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 12: Indoor Unit Display

    ▪ Curtains. Make sure that curtains or other objects do NOT block the signal between the unit and the wireless remote control. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 13: Components: Wireless Remote Control

    Automatic operation mode button l LCD display 3.2.2 Status: Wireless remote control LCD Icon Description Operation mode = Automatic Operation mode = Drying Operation mode = Heating Operation mode = Cooling FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 14: To Operate The Wireless Remote Control

    Result: When the indoor unit receives a signal from the wireless remote control, you will hear a sound: Sound Description Beep-beep Operation starts. Beep Setting changes. Long beep Operation stops. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 15: Before Operation

    1 Choose a place where the signals reach the unit. 2 Attach the holder with screws to the wall or a similar location. 3 Hang the wireless remote control on the holder. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 16: To Turn On The Power Supply

    4.4 To turn on the power supply 1 Turn the circuit breaker on. Result: The flap of the indoor unit will open and close to set the reference position. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 17: Operation

    To adjust the airflow direction (swing or fixed Airflow direction position). To adjust the amount of air blown into the Airflow rate room. To run more quietly. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 18: Operation Mode And Temperature Setpoint

    In that case, the system automatically switches to defrosting operation to remove the frost. During defrosting operation, hot air is NOT blown from the indoor unit. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 19: To Start/Stop Operation Mode And To Set The Temperature

    5 airflow rate levels, from " " to " " Automatic airflow rate operation Indoor unit quiet operation. When the airflow rate is set to " ", the noise from the unit will be reduced. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 20: To Adjust The Airflow Rate

    Flap range in cooling or drying operation b Flap range in heating operation c Flap range in fan only operation FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 21: To Adjust Vertical Airflow Direction

    Powerful and Comfort airflow operation CANNOT be used at the same time. The last selected function takes priority. If the vertical automatic swing is selected, Comfort airflow operation will be cancelled. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 22: To Start/Stop Comfort Airflow Operation

    Note: Powerful operation can be set only when the unit is running. If you press or if you change operation mode, operation will be cancelled; disappears from the LCD. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 23: Econo Operation

    INFORMATION Program the timer again in case of: ▪ A breaker has turned the unit off. ▪ A power failure. ▪ After replacing batteries in the wireless remote control. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 24: To Start/Stop Off Timer Operation

    5.9.3 To combine OFF timer and ON timer 1 To set the timers, refer to "5.9.1  To start/stop OFF timer operation"  [   24] "5.9.2 To start/stop ON timer operation" [  24]. Result: are displayed on the LCD. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 25: Wireless Lan Connection

    1 Open: ▪ Google Play for appliances using Android. ▪ App Store for appliances using iOS. 2 Search for “ONECTA”. 3 Follow the directions on the screen to install. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 26: Energy Saving And Optimum Operation

    Adjust the air flow direction to avoid cool air from gathering on the floor or warm air against the ceiling. (Up during cooling or dry operation to the ceiling and down during heating operation.) ▪ Avoid direct air flow to room inhabitants. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 27 Energy saving and optimum operation ▪ Operate the system within the recommended temperature range (26~28°C for cooling and 20~24°C for heating) to save energy. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 28: Maintenance And Service

    DANGER: RISK OF ELECTROCUTION To clean the air conditioner or air filter, be sure to stop operation and turn all power supplies OFF. Otherwise, an electrical shock and injury may result. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 29: To Clean The Indoor Unit And Wireless Remote Control

    Otherwise, an electrical shock and injury may result. 1 Clean with a soft cloth. If it is difficult to remove stains, use water or a neutral detergent. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 30: To Clean The Front Panel

    1 Push the tab at the centre of each air filter, then pull it down. 2 Pull out the air filters. 3 Remove the titanium apatite deodorising filter and silver particle filter from the tabs. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 31: To Clean The Titanium Apatite Deodorising Filter And The Silver Particle Filter (Ag-Ion Filter)

    (Ag-ion filter) INFORMATION Clean the filter with water every 6 months. 1 Remove the titanium apatite deodorising filter and the silver allergen removal air purifying filter from all 4 claws. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 32: To Replace The Titanium Apatite Deodorising Filter And The Silver Particle Filter (Ag-Ion Filter)

    Dispose of the old filter as non-flammable waste. To order titanium apatite deodorising filter or silver particle filters, contact your dealer. Item Part number Titanium deodorising filter KAF970A46 Silver particle filter KAF057A41 FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 33: To Close The Front Panel

    Maintenance costs shall be borne by the customer. In certain operating conditions the inside of the unit may get dirty after several seasons of use. This results in poor performance. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 34: Troubleshooting

    ▪ The air conditioner may stop operating after sudden large voltage fluctuations to protect the system. It automatically resumes operation after about 3 minutes. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 35 If after checking all above items, it is impossible to fix the problem yourself, contact your installer and state the symptoms, the complete model name of the unit (with manufacturing number if possible) and the installation date (possibly listed on the warranty card). FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 36: Symptoms That Are Not System Malfunctions

    Moisture generated by defrost becomes steam and exits. 8.1.8 Symptom: The units can give off odours The unit can absorb the smell of rooms, furniture, cigarettes, etc., and then emit it again. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 37: Symptom: The Outdoor Fan Rotates While The Air Conditioner Is Not In Operation

    Signal transmission error (between indoor and outdoor unit) Indoor/outdoor unit combination fault Indoor unit Error code Description Indoor unit PCB abnormality Freeze-up protection or high-pressure control Fan motor (DC motor) abnormality FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 38: Troubleshooting For Wireless Lan Connection

    ▪ Turn the unit off and then back on. ▪ Make sure the LEDs are not disabled in the application. ▪ Check if the adapter is installed correctly. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 39 2 seconds. Now switch back to AP mode by pressing the MODE button again for 2  seconds. This procedure will change the wireless channel on which the Wireless LAN adapter is operating. Repeat if necessary. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...

  • Page 40: Disposal

    Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery. FTXP-N User reference guide Daikin room air conditioner 4P513685-11H – 2022.06...
  • Page 41 Optional equipment Equipment made or approved by Daikin that can be combined with the product according to the instructions in the accompanying documentation. Field supply Equipment NOT made by Daikin that can be combined with the product according to the instructions in the accompanying documentation.
