Titan EP Training
For Modifying a Preprogrammed
Titan EP
August 11, 2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the Titan EP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DEMA Titan EP

Summary of Contents for DEMA Titan EP

  • Page 1 Titan EP Training For Modifying a Preprogrammed Titan EP August 11, 2009...

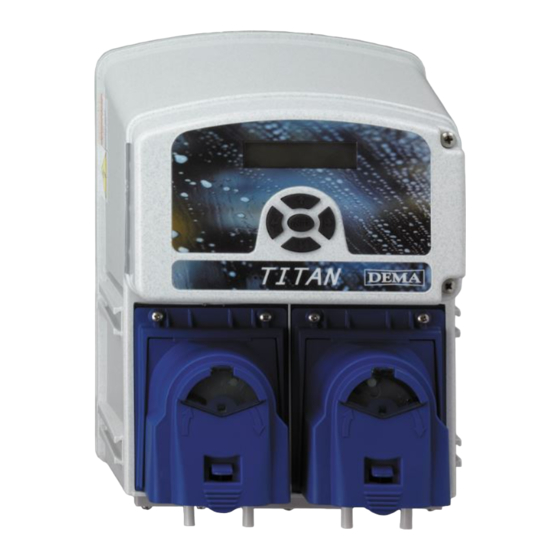

  • Page 2 Titan EP Features • 100-260VAC 50/60Hz main power (constant power) • 24-480VAC trigger signals • Detergent pump output 10 oz./min (300ml / min) • Rinse pump output 0.5 oz./min (16ml / min) • Optional Items – Inductive probe – Magnetic field reader...
  • Page 3 Titan EP Button Functions ENTER button UP arrow accepts values increases entered value or moves cursor LEFT arrow RIGHT arrow moves cursor moves cursor to the left to the right DOWN arrow decreases value or moves cursor down...
  • Page 4 Titan EP – Idle Screen • Idle / Default screen shown when unit is not being programmed • Press enter to advance to priming and programming functions • Unit will return to this screen during programming if long delays are taken during programming •...
  • Page 5 Titan EP – Detergent Prime • 1 screen seen after the idle screen • Press enter to start & stop pump priming • Use the UP & DOWN ARROWS to scroll through other menu selections...
  • Page 6 Titan EP – Rinse Prime • Press enter to start & stop pump priming • Use the UP & DOWN ARROWS to scroll through other menu selections...
  • Page 7 Titan EP – Sanitizer Prime • Press enter to start & stop pump priming • Use the UP & DOWN ARROWS to scroll through other menu selections...
  • Page 8 Titan EP – Information Screen • DET – P = Probeless mode – C = Concentration mode • SP – Not applicable for probeless mode – Detergent set point in concentration mode • Input – Actual probe reading...
  • Page 9 Modify Program Probeless Mode • Modify existing program for probeless mode • For both door and conveyor machine types...
  • Page 10 Probeless Mode – Recharge Time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes & seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 11 Probeless Mode – Dwell Time • For conveyor machine type only • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 12 Probeless Mode – Dead Cycles • For door machine type only • Press ENTER to modify setting • Use UP & DOWN arrows to adjust number of cycles between recharges • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 13 Probeless Mode – Initial Charge • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 14 Probeless Mode – Charge Clock • Defines time between trigger signals for an initial charge • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (hours / minutes) • Press ENTER when desired setting is displayed •...
  • Page 15 Probeless Mode – Rinse Speed • Adjust rinse pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 16 Probeless Mode – Rinse Delay • For door machine only – Adjust delay time to start rinse pump • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse delay • Press ENTER when desired rinse delay is displayed •...
  • Page 17 Probeless Mode – Rinse Limit • For door machine only – sets maximum rinse pump run time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse limit (seconds) • Press ENTER when desired rinse limit is displayed •...
  • Page 18 Probeless Mode – Rinse Alarm • Press ENTER to modify setting • Use UP or DOWN arrows to change between Active and Inactive • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 19 Probeless Mode – Sanitizer Speed • Adjust sanitizer pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust sanitizer speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 20 Probeless Mode – Sanitizer Alarm • Press ENTER to modify setting • Use UP or DOWN arrows to change between Active and Inactive • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 21 Probeless Mode – Detergent Control Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between probeless or concentration • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 22 Probeless Mode - Machine Type • Press ENTER to modify setting • Use UP or DOWN arrows to change between Conveyor and Door • Press ENTER when desired machine type is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 23 Probeless Mode – Trigger Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Detergent/Rinse, Detergent Only or Rinse Only • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 24 Probeless Mode – Company Name • Up to 16 characters • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between characters • Use UP & DOWN arrows to at adjust each character • Press ENTER when desired name is displayed •...
  • Page 25 Probeless Mode – Alarm Volume • Sets volume of audible detergent alarm • Press ENTER to modify setting • Use UP or DOWN arrows to adjust volume • Press ENTER when desired volume is reached • Press UP or DOWN arrow to advance to other screens...
  • Page 26 Probeless Mode – Enter New Code • Sets programming password (4 numbers) • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between numbers • Use UP & DOWN arrows to at adjust each number • Press ENTER when desired code is displayed •...
  • Page 27 Probeless Mode – End Programming • Press enter to exit programming...
  • Page 28 Modify Program Concentration Mode • Modify existing program for concentration mode • For both door and conveyor machine types...
  • Page 29 Concentration Mode – Concentration Set Point • Press ENTER to modify setting • Use UP & DOWN arrows to adjust concentration set point • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 30 Concentration Mode – Feed Rate • Controls how quickly set point is reached, high feed rate can lead to over shooting • Press ENTER to modify setting • Use UP & DOWN arrows to adjust feed rate • Press ENTER when desired setting is displayed •...
  • Page 31 Concentration Mode – Alarm Delay • Amount of time before detergent alarm sounds • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed •...
  • Page 32 Concentration Mode – Rinse Speed • Adjust rinse pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 33 Concentration Mode – Rinse Delay • For door machine only – Adjust delay time to start rinse pump • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse delay • Press ENTER when desired rinse delay is displayed •...
  • Page 34 Concentration Mode – Rinse Limit • For door machine only – sets maximum rinse pump run time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse limit (seconds) • Press ENTER when desired rinse limit is displayed •...
  • Page 35 Concentration Mode – Rinse Alarm • Press ENTER to modify setting • Use UP or DOWN arrows to change between Active and Inactive • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 36 Concentration Mode – Sanitizer Speed • Adjust sanitizer pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust sanitizer speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 37 Concentration Mode – Sanitizer Alarm • Press ENTER to modify setting • Use UP or DOWN arrows to change between Active and Inactive • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 38 Concentration Mode – Detergent Control Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between probeless or concentration • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 39 Concentration Mode - Machine Type • Press ENTER to modify setting • Use UP or DOWN arrows to change between Conveyor and Door • Press ENTER when desired machine type is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 40 Concentration Mode – Trigger Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Detergent/Rinse, Detergent Only or Rinse Only • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other screens...
  • Page 41 Concentration Mode – Company Name • Up to 16 characters • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between characters • Use UP & DOWN arrows to at adjust each character • Press ENTER when desired name is displayed •...
  • Page 42 Concentration Mode – Alarm Volume • Sets volume of audible detergent alarm • Press ENTER to modify setting • Use UP or DOWN arrows to adjust volume • Press ENTER when desired volume is reached • Press UP or DOWN arrow to advance to other screens...
  • Page 43 Concentration Mode – Enter New Code • Sets programming password (4 numbers) • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between numbers • Use UP & DOWN arrows to at adjust each number • Press ENTER when desired code is displayed •...
  • Page 44 Concentration Mode – End Programming • Press enter to exit programming...
