E3 LED Engine Replacement Instructions

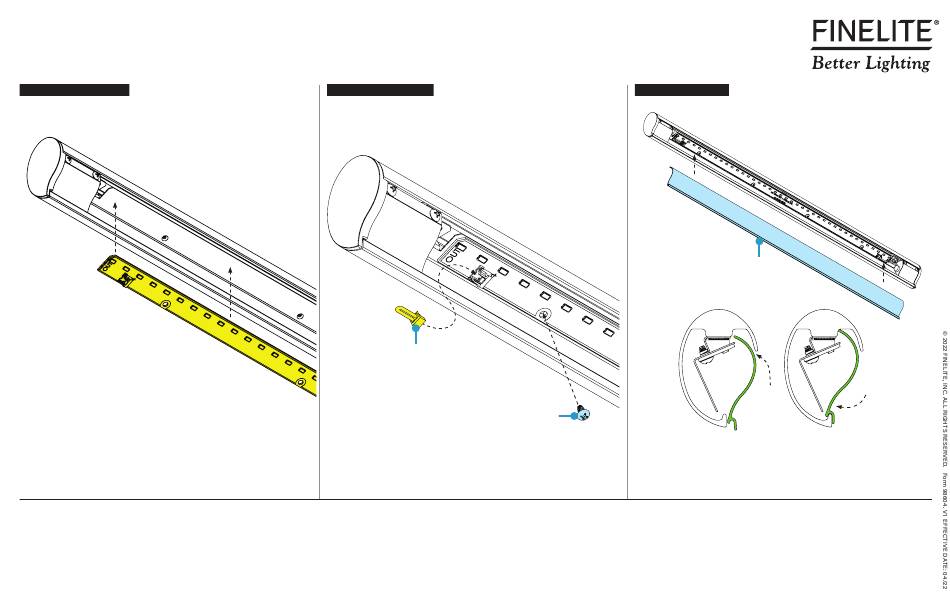

Step 2 - Replacing LED Engine

A. Replace LED Engine
Remove LED engine and replace with new engine.
•
B. Re-Connect Engine
Shunt Wire
(provided)
Reinstall all #6-23 x 3/16" screws to secure the LED engine in place.
•
Re-connect feed wire connectors, jumper wires, and shunt wire.
•
C. Replace Diffuser
6-32 screw
(provided)
Re-install diffuser by slipping the upper portion of the diffuser into the pocket above the LED engine.
•
Start at one end and press the snap edge into place until it snaps over the edge of the housing, continue
•
snapping down the length until fully installed.
Diffuser
(provided)
3 of 3
