E3 LED Engine Replacement Instructions

Step 1 - Opening Luminaire

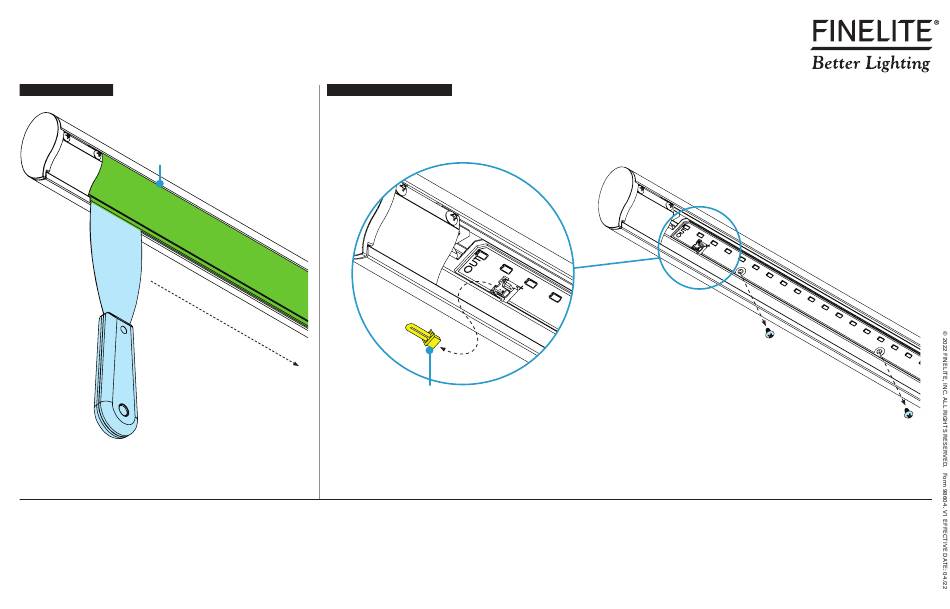

A. Remove Diffuser
Diffuser
(provided)
Use a putty knife to lift open the lower edge of the diffusers. Slowly work down the length of the
•
diffuser until it is fully removed.
Set diffuser aside in a safe place to avoid damage.
•
B. Disconnect LED Engine
Remove Shunt
Shunt Wire
(provided)
Unplug feed wire connectors, jumper wires, and shunt wire. Set aside in a safe place.
•
Remove all #6-23 x 3/16" screws holding the LED engine in place with a #2 Philips screwdriver
•
Remove Screws
