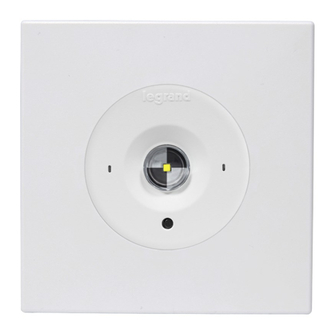

LEGRAND LED SATELLITE Installation Instruction Sheet

LED SATELLITE
Ceiling cut out template – recessed installation
Recessed installation
Changing trim size for corridor models with square trim
Ensure locators are in position prior to securing the square trim
Type Diameter 'H' Hole cut-out 'D'
Without dish 56mm 52mm
Small ring 80mm 52mm to 60mm
Medium ring/square 120mm 52mm to 85mm
Plug in battery lead
Mains supply connection – recessed installation
For stand alone and Axiom models, supplied complete with flex and plug.
Neutral
Unswitched Active
For DALI models
DALI
DALI
Neutral
Unswitched Active
Changing trim size for non corridor models
Slide and
click to
click to
open or
open or
close trim
close trim
