INSTALLATION MANUAL
Thank you for purchasing TOYOTA genuinr "SIDE VISOR". This manual explain the procedure
for installtion. Please read this manual carefully to ensure correct installation.
Parts Number
PC162-0K00H

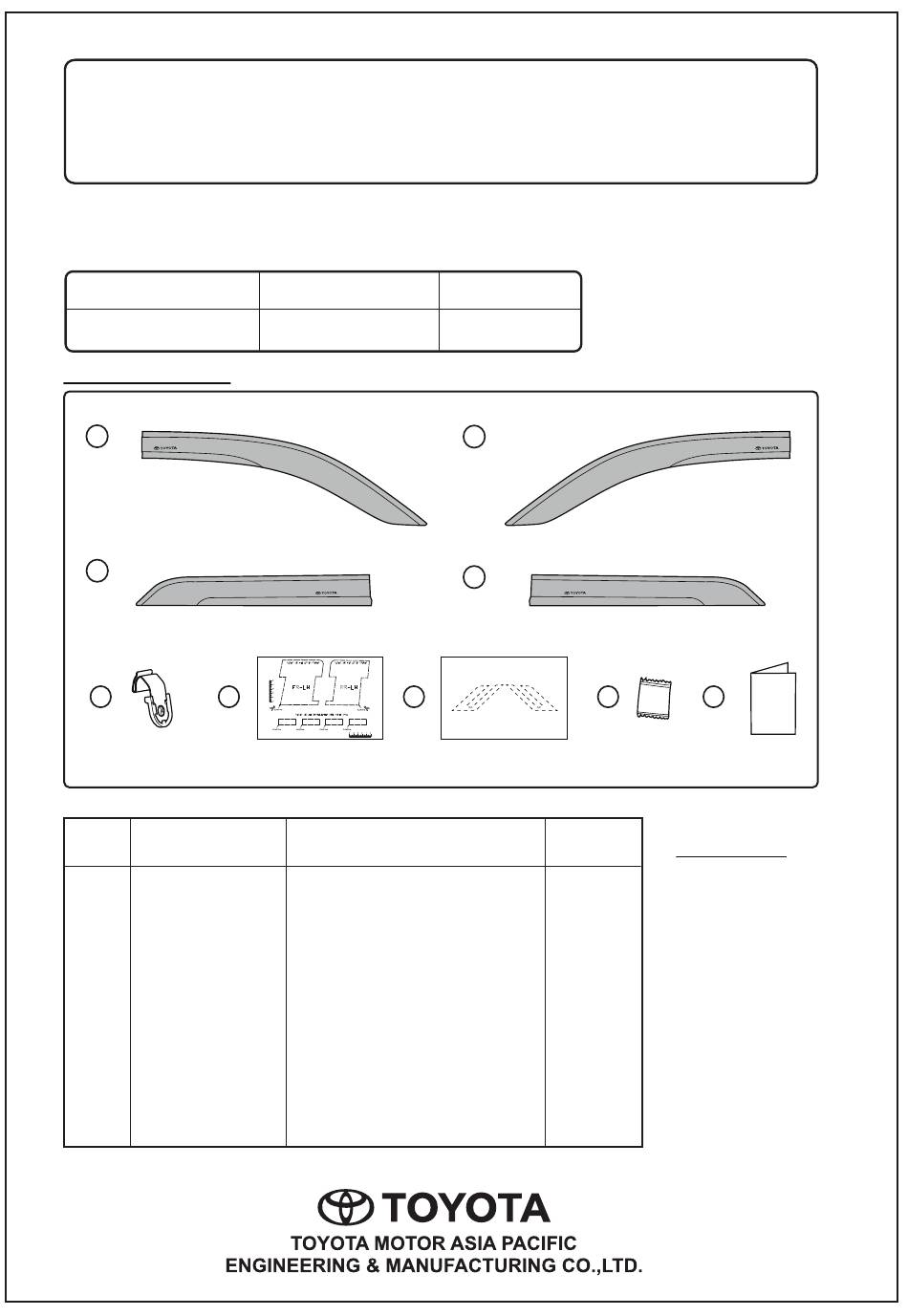

Component Parts
1
3
5
6
No.
Part Number
1
PC162-0K00A
2
PC162-0K00B
3
PC162-0K00J
4
PC162-0K00K
5
PC162-0K00G
6
-
7
-
8
-

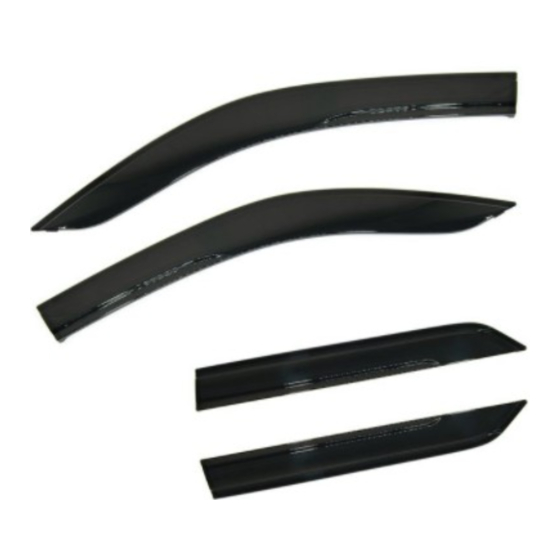

SIDE VISOR
Model
FORTUNER 2015
7
Part Name
Side Visor FR-RH
Side Visor FR-LH
Side Visor RR-RH
Side Visor RR-LH
Bracket
Paper Jig
Primer
Installation manual
Remark
-
2
4
8
Installation time : 30 mins
Qty
1
1
1
1
8
2
1
1
9
Required tools
1.Clean cloth
2.White gasoline or
Alcohol 60-80%
3.Masking tape
4.Scissor or Cutter
1.
Advertisement
Table of Contents
Related Manuals for Toyota PC162-0K00H
Summary of Contents for Toyota PC162-0K00H
- Page 1 INSTALLATION MANUAL SIDE VISOR Thank you for purchasing TOYOTA genuinr “SIDE VISOR”. This manual explain the procedure for installtion. Please read this manual carefully to ensure correct installation. Parts Number Model Remark PC162-0K00H FORTUNER 2015 Component Parts Installation time : 30 mins...
- Page 2 1. Preparation 1.1 Open all Doors and lower all Door Glasses. 1.2 Remove upper portion of Front & Rear Door Glass Run from the Door Panel. 1.3 Clean the Door Frame with clean cloth and white gasoline or alcohol 60-80% 2.
- Page 3 4. Installing the Brackets 4.1 Place the Side Visor on the Door Frame and mark the location of Brackets. 4.2 Install the Brackets to the marked position. 4.3 Assembly back the Glass Run. ** The correct assembly condition of the Bracket 5.
- Page 4 7. Attach the Rear Side Visor to Door Frame by using position template as a guide. *The top edge of the Rear Side Visor must be touch with the bottom edge of the position template, while the front edge of the Rear Side Visor must be align with the door edge.
- Page 5 9. Assembly the Brackets 9.1 Slide the Bracket to the Emboss. 9.2 Press the Bracket to lock with the Side Visor. CAUTION : When installing the Brackets, use your hand to press the outer surface of Side Visor to make sure that the Side Visor will not be detach.
