Summary of Contents for Nokeval 575F

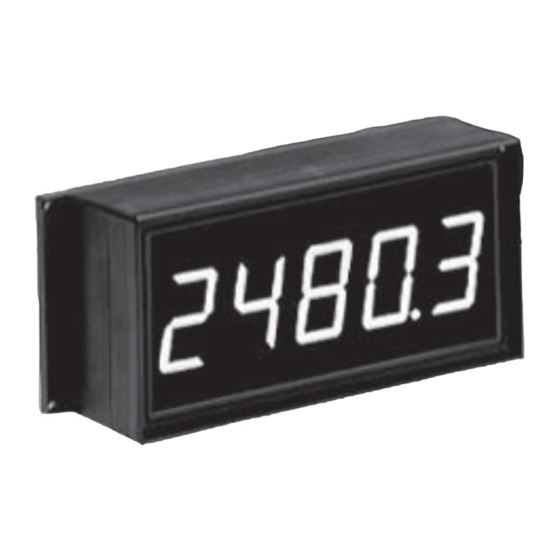

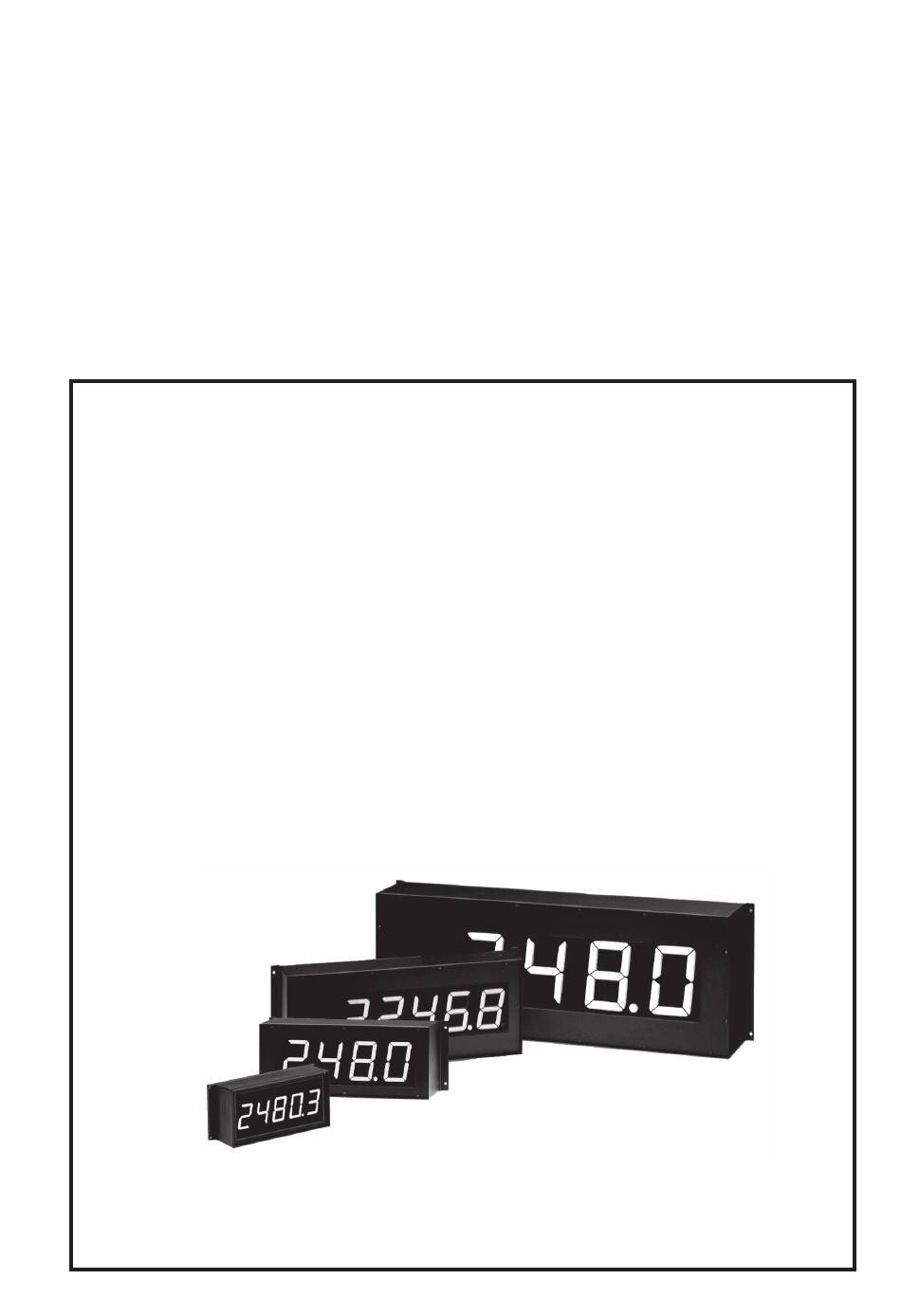

- Page 1 Nokeval No 259202 Manual Models 575F, 1000F, 1100F, 1800-2061 Scalable counter for pulse sensors...
- Page 2 Manufacturer: Nokeval Oy Yrittäjäkatu 12 37100 NOKIA Finland Tel. +358 3 342 4800 Fax. +358 3 342 2066...
- Page 3 Counter / batch controller XX-2061 for pulse sensors Reset and new start 100.0 Output relay closes valve when counter reaches set value. Reset activates Output relay and opens valve. relay Quantity Contact information Valve Flow sensor with when new barrel ready for fill up pulse output 1 pulse=15,3 litres...
-
Page 4: Technical Specification
85-230VAC or 24VDC General The counter is also available for analog inputs 0/4-20 mA Power supply 85..240 VAC or 24VDC (12W) or 0-10 V, series 575F-1800F-2026 Dimensions: 281, 500, 670 1045 96,120, 130, 210 281, 455, 625, 1025... -
Page 5: Contact Input
Connections: Input and output cards External reset of the display is ob- tained by connecting closing key to Memory card Input Relay card connectors of input card (A) 3 and 6. Display can also be reset by pressing simultaneously. Reset Relay 1 REL2 Expansion slot A has been... -
Page 6: Configuration Keys
Configuration keys 1 0 0 0 0 Input 2-8 V (Slot A) Digital display Keys Power supply Configuration Switch on the power supply. Both displays should display some reading. Press and hold - and keys simultaneously to enter the configuration menu. “Dec” is displayed. Select a setting using keys. -
Page 7: Programming Parameters
Programming desired function you move to the arrangement state In the programming state the sensors, alarms and with the star button and returned to the main menu scaling of pulses are chosen. The programming state is with same button. When all arrangements have been achieved by pressing the star buttons and arrow but- made,you move to SAVE - UNDO - menu, with star tons simultaneously for about 2 seconds. - Page 8 Serial output RS485/RS232 (option) In programming stage you can first select card type Meter may be provided with optional serial output and (serial) mounted to slot B or C and then address and you can read measurements by e.g. PC. Display Baud rate.
-
Page 9: Serial Communication
Termination 110 ohm on last units terminals Address 1 Data acquisition Address 0 with PC 5620.0 5620.0 5620.0 Address 2 RS485 Twisted pair cable Serial communication Baudrate: 300, 1200, 2400, 4800, 9600 and 19 200 1 Start, 8 Data and 1 Stop bit, no parity. Serial protocol (SCL): e.g. - Page 10 Construction of field display series relay card into slot B. If you accept only closing or The field display series is modular and easy to as- opening relay contacts, you need only one relay card semble. According to customers wishes. The basic with 4 relays placed into slot C.
-
Page 11: Alarm Cards
Modular field display series 575F...1800F 4-6-digit red LED display Option cards Alarm cards: E² 6543.21 2 relay card, 4 alarm types, E² change over contacts 3 relay card, closing contacts 4 I/O-ports Model 2011: Sensor supply: 2021 2 relays change over contacts E²... - Page 12 Manufacturer: Tel. +358 (0)3 342 4800 Nokeval Oy Nokeval Oy Nokeval Oy Nokeval Oy Nokeval Oy Fax. +358 (0)3 342 2066 Yrittäjäkatu 12 email mail@nokeval.com 37100 NOKIA http:// www.nokeval.com Finland...
