Summary of Contents for Nokeval PME600

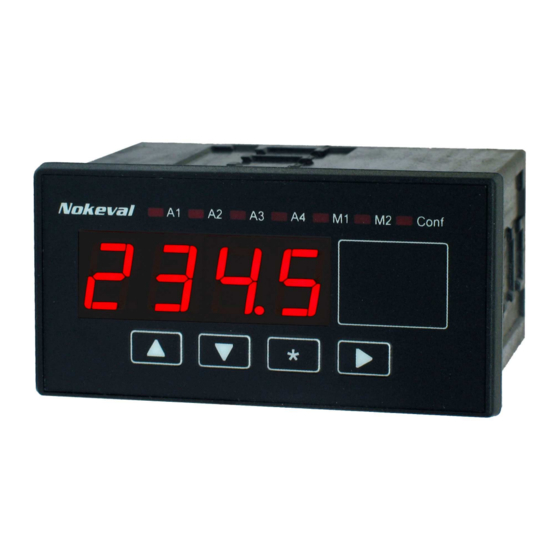

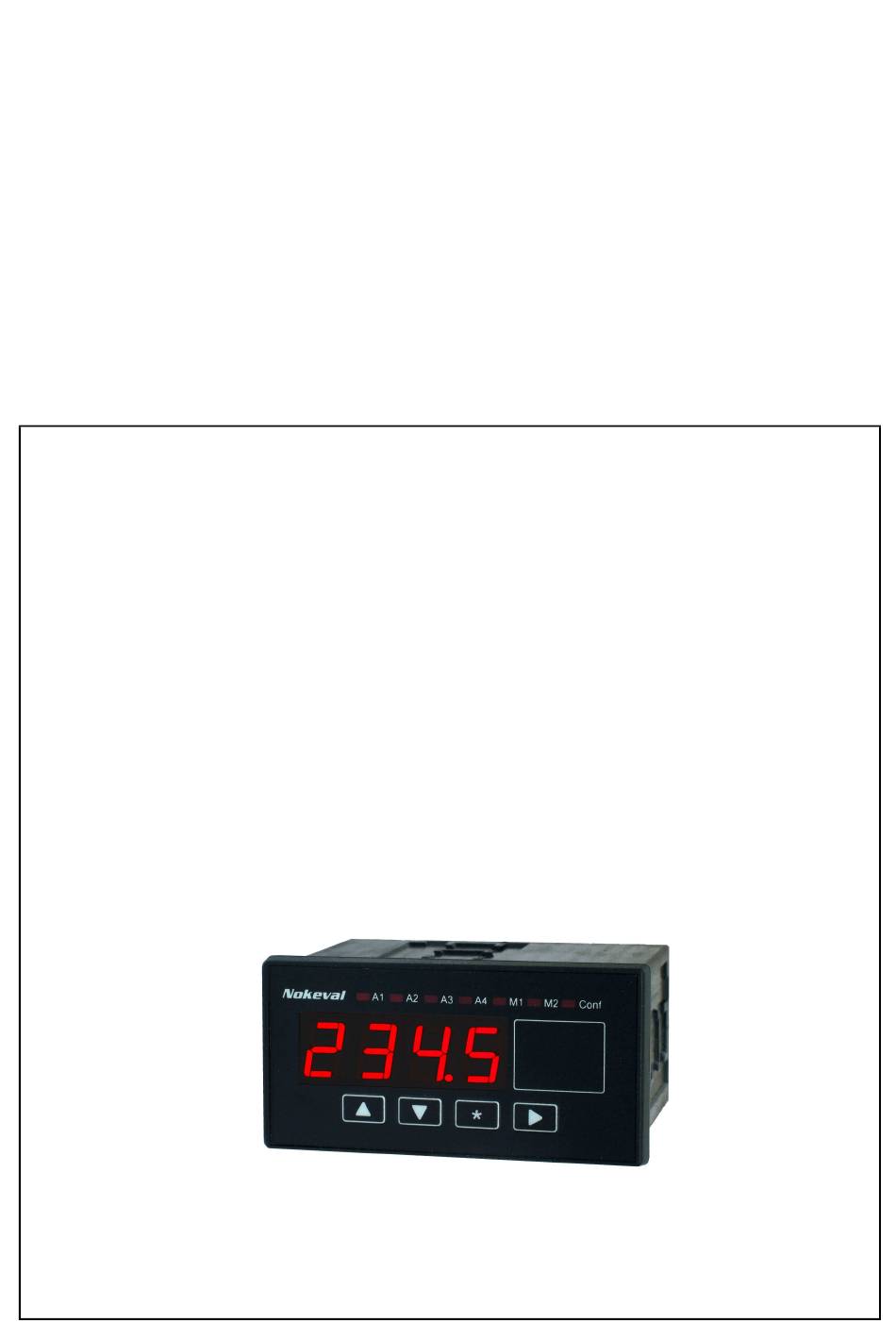

- Page 1 Nokeval No 100211 v1.2 User Guide Panel meter models PME600 & PME610...
-
Page 2: Technical Information
K, Pt100 and process signals 0..20 mA, 4..20 mA and 0..10 V. Meters settings menu structure is simple, so its easy to setup. Model PME610 contains analog output 4..20 mA. Model PME600 contains 12V output for 2-wire transmitter. Technical information Prosess inputs: 0..20 mA, 4..20 mA and... -
Page 3: Panel Installation
INSTALLING This chapter guide to install 1/8 DIN-size panelmeter PME600/PME610. Panel installation Panelmeter should be mount to panel cutoff according to below picture. Attach the meter with two holders supplied. Dimensions Cutoff 43,7 (H) x 90,7 (W) mm ±0,7 mm... -
Page 4: User Interface
USER INTERFACE Front panel There is two modes: Indicator LEDs A1 (low alarm) and A2 (high alarm) • Normal mode – Shows reading. indicate the state of alarms. Conf LED is lighting when user interface is in setting mode. • Setting mode – For changing the settings. Manual reset with front panel v-key can be selected by choosing wider hysteresis than full After switching the power on, the userinterface is in... -
Page 5: Flow Diagram
Flow diagram SAVE 4-20 Input selection 4-20 = 4...20 mA 0-20 0-20 = 0...20 mA UNDO Pt 3 Pt 3 = Pt100 3-wire SENS Pt 4 Pt 4 = Pt100 4-wire = Thermocouple K mV = Millivolts 0-10 = 0...10 V 0-10 Display scaling for V- and mA-inputs: IN L...
