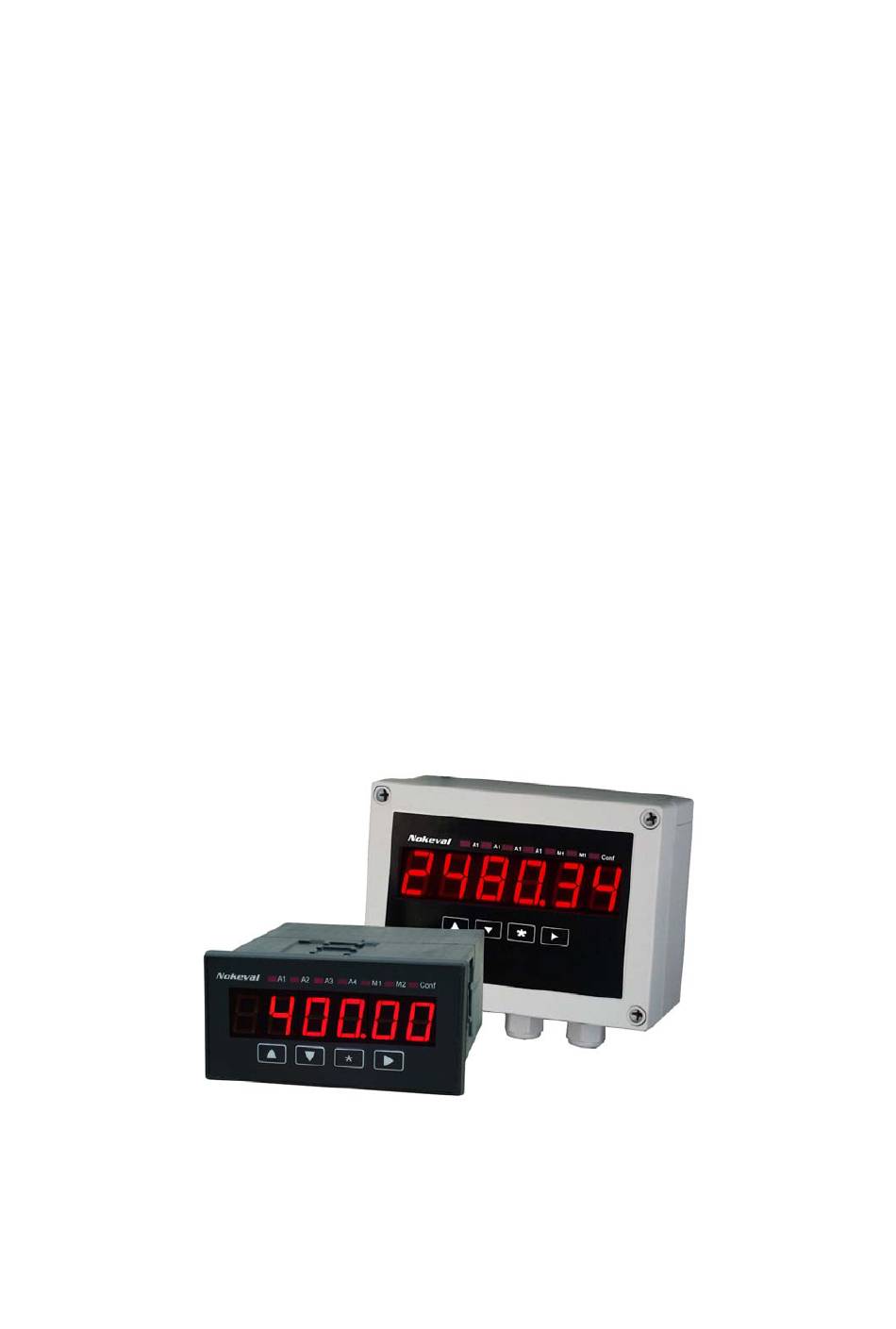

- Page 1 Nokeval USER MANUAL 5.8.2008 V1.3 Setpoint unit 2022Setp...
-
Page 2: Specifications

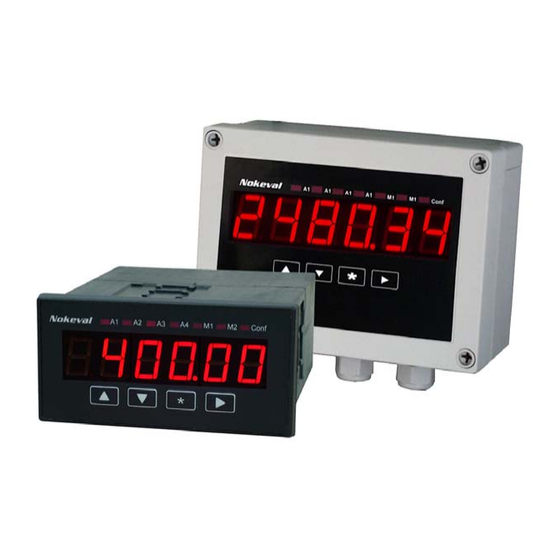

INTRODUCTION 2022Setp is a special edition of Nokeval 2022 multi-input indicator. It is available in wall-mounted Configuration can be fully performed either with “2800” enclosure or in a 1/8 DIN panel enclosure. the front panel buttons or using serial Normally it is equipped with an analog output communications and Mekuwin PC software. -
Page 3: Installation
3=slot C. Using configuration software The indicator keeps measuring during the MekuWin program (free from Nokeval web site) is configuration, and the MekuWin monitor function used to configure the device using RS-232 or RS- can be used to see the current readings. -
Page 4: Operation
OPERATION Data flow Display Internal 1 3 5 0 0 0 Blink Serial Setpoint Ch 8 Ana output Scaling Ch 1 Input Alarms The mA or V input is first measured. This information is converted to a scaled reading (in There is one user-adjustable setpoint, that can be changed using the front panel buttons ^ and v. -
Page 5: User Interface
USER INTERFACE Front panel Normal state • In normal state, this device displays the current MeaSet. The display shows normally the measurement reading continuously functioning as input (channel 1), but can be requested to show the setpoint by pressing ^ or v for an indicator. - Page 6 Slot Conf > > ^ v > Master Submenu1 Submenu1 > * > Slot A Submenu2 Item1 Editing > Slot B Submenu3 > Slot C Save Undo To set a password, push ^ to select Set (means The main level of the configuration menu is password will be used), then push >...
-
Page 7: Configuration Menu
MASTER / SETPOINT The master is responsible of the user interface (display and buttons) and of the setpoint. To set up an analog output following the setpoint, see chapter Analog output. Configuration menu Setpoint\Preset Conf Setpoint value after power-up. This item is hidden Bright if Startup is set to Last. -
Page 8: Monitor Menu
Monitor menu The monitor menu has only one item, Mainch, which tells which internal channel is currently being displayed. - Page 9 INPUT 2022SETP is an input card capable of measuring one mA or V signal. The reading will be put on internal channel 1. Configuration menu • 0: No input scaling. The input signal will Conf be displayed as is, in mA or V.
-
Page 10: Analog Output
ANALOG OUTPUT 2000OUT is an analog output card with one active mA or V output. Configuration menu From Conf The internal channel that the output follows: • 1: The input Range • 8: The setpoint From Rdg1 Rdg1, Out1 Out1 The first point in output scaling. -
Page 11: Serial Commands
1 = input on slot A seconds. 8 = setpoint TYPE MEA SCAN 1 3 Returns the type of the device, “2022SETP V1.3”. Returns the readings from channels 1-3 separated by one space, e.g. “101.000 0.00000 79800.”. Scientific representation is not used. - Page 12 ALARMS 2000REL2 and 2000REL3 cards are alarm/relay cards. They have 2 and 3 relays correspondingly. Configuration menu ActDelay Conf Defines the time how long the alarm condition Alm1 Alm1 must be continuously true before the alarm will Alm2 Type actually activate. The time is given in seconds, the Alm3 From maximum value being 4295 seconds.
- Page 13 Monitor menu The monitor menu has only one item, Alarms. It 1=alarm1, 2=alarm2, 4=alarm3, and any sum of tells the state of the alarms. 0=no alarms, these. Can be locked to manually test the relays.
- Page 14 Nokeval Yrittäjäkatu 12 37100 Nokia Finland Tel +358 3 3424800 Fax +358 3 3422066 www.nokeval.com...
