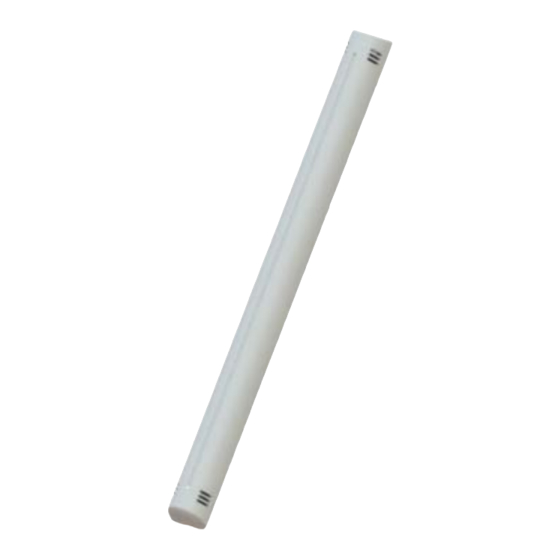

- Page 1 BEAT10-T & BEAT10-RHT User Manual ID6734 V2 11.2.2015 Firmware 1.1-1.1...
-
Page 2: Table Of Contents
These transmitters are the perfect choice for applications where both the appearance and the cost of the device are critical. Using Nokeval wireless devices it is possible to cost effectively build even a large measuring network in existing buildings. - Page 3 Connect the POL-3PIN adapter to pin-header J3 on the BEAT10 circuit board. • pages with search term MekuWin and download the program. Search www.nokeval.com • Install and start MekuWin. • Select settings Protocol SCL, Baud 9600, Parity 8N1, Address 0 and click on Connect Direct.
- Page 4 International radio standards limit the use of radio frequencies and limit the use of the license-free ISM frequency band that BEAT10 transmitters use. The maximum total number of Nokeval radio transmitters that can be simultaneously used in the same coverage area depends on the transmit interval.
- Page 5 The 90% of the temperature response time for BEAT10-T ja BEAT10-RHT is about 15 minutes. When choosing the installation location one must consider multiple effects affecting the temperature distribution in the space.
- Page 6 Attaching the enclosure base Set the enclosure base on the wall or some other suitable surface in a way that the narrow part of the screw holes of the base are facing up. Mark the holes to the (wall) surface and drill holes that suit for the material.
- Page 7 Battery installation To save battery life BEAT10 is delivered battery removed. Install the delivered AAA type battery to the battery holder located behind the enclosure cover by obeying the polarity markings. The led over the battery holder should blink red light once to indicate the first radio transmission. Closing the enclosure Push the enclosure cover together to the enclosure base in a way that the antenna is pointing to the same way as the narrow part of the screw holes.
-
Page 8: Maintenance
Above graph is made with Energizer Industrial EN92 battery. Calibration The device has no recommended calibration day, calibration service or online calibration certificates, but if you need any of these contact your local Nokeval distributor for alternative products that has these features. 8 - Maintenance... -
Page 9: Troubleshooting
Troubleshooting No radio reception. f the radio packets of this transmitter cannot be received and the operation of the receiving system has already been verified to work, then the following should be checked: Open the enclosure and observe that the red LED inside the device blinks every 2 minutes and 42 seconds, to make sure, that the transmitter is trying to send radio packets. -
Page 10: Specifications
Specifications Environment Storage temperature -40...+70 °C Operating temperature +5...+55 °C Relative humidity 5...95 %RH, non-condensing Protection class IP30 Case material Plastic (ABS+PC) Measurements Weight About 82g with a battery Dimensions Width 26mm Height 340mm Depth 23mm Power source Battery type 1,5 V type LR03 (AAA) alkaline battery, ”heavy-duty”... - Page 11 Temperature measurement BEAT10-T & BEAT10-RHT Sensor type Integrated Pt100 element Measurement range +5…+55 °C Accuracy ±0,5 °C in range +15...+35 °C ±1 °C in range +5...+55 °C Step response 8,7 min 63 % 20 min 90 % Humidity measurement BEAT10-RHT...
-
Page 12: Warnings
Read this manual carefully before using the device. Only Nokeval Oy authorized services may repair or modify the device. The device includes no user serviceable parts. The device must not be disposed with household waste. Observe local regulations concerning electronic waste recycling.
