Summary of Contents for Matrix G7-S74

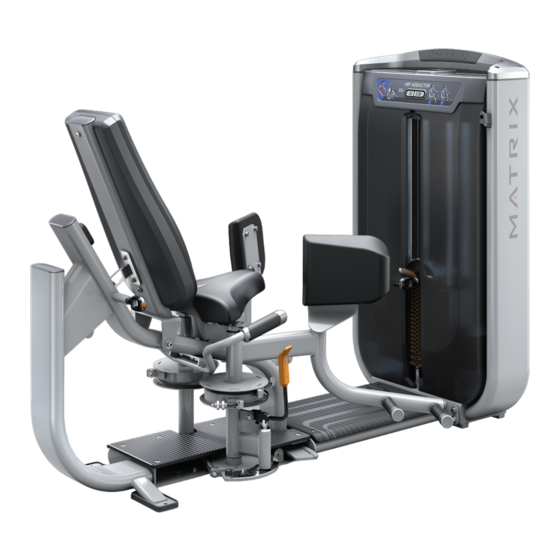

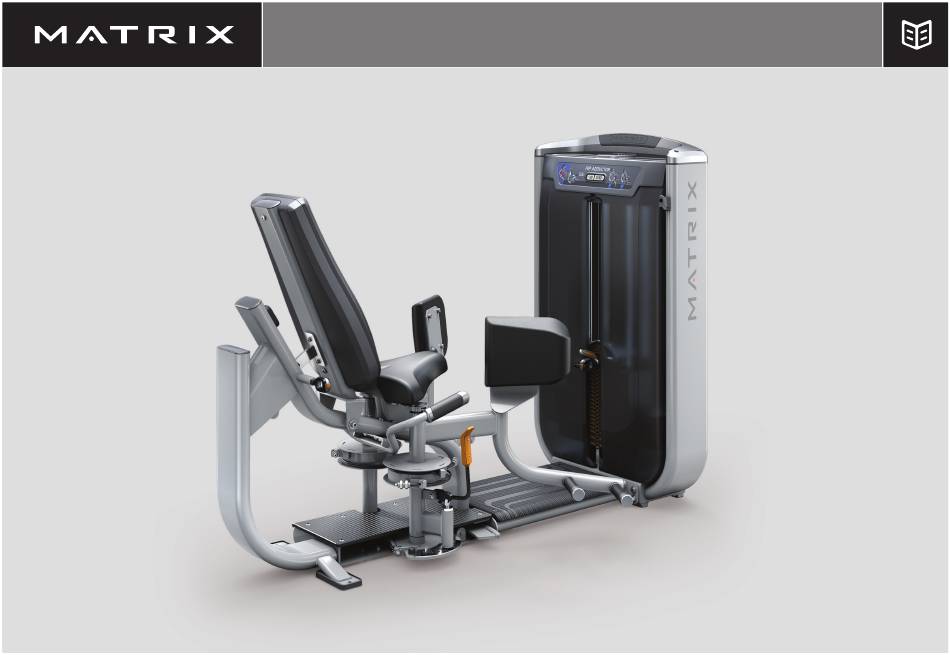

- Page 1 ULTR A SERIES G7-S74...
-
Page 3: Warranty
* Ensure a minimum clearance width of 0.6 meters (24”) for access to and Inspect Frame Bi-Annually passage around MATRIX strength equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs. Clean Machine As Needed... -
Page 4: Important Safety Information
It is recommended that all users of MATRIX exercise equipment be informed of the following information prior to its use. DEATH OR SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. - Page 5 HIP ADDUCTOR HIP ADDUCTOR Adjust back and knee pads to desired start position...
- Page 6 UNPACKING G7-S74 TRAINING AREA Thank you for purchasing a MATRIX Fitness product. It is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams.
- Page 7 Do not fully tighten frame connectors until Be sure to remove the insulating sheet Step 2 Hardware assembly is complete. Vibra-Tite 135 Red Gel when installing the rep counter. Description or equivalent must be used on all fasteners that are not assembled with Nyloc Nuts. Bolt (M10x25L) Spring Washer (M10) Washer (M10)
- Page 8 Step 4 Hardware Description Bolt (M10x25L) Bolt (M10x30L) Washer (Φ10.2x20) Washer (Φ10.2x25) Bolt (M10x75L) Rubber Bumper...
- Page 9 Leg Extension G7-S72 Seated Leg Curl G7-S70 Leg Press G7-S33 Lat Pull-down G7-S42 Triceps Press G7-S34 Seated Row G7-S40 Bicep Curl G7-S74 Hip Adductor G7-S75 Hip Abductor G7-S22 Pec Fly/Rear Delt G7-S51 Abdominal Crunch G7-S52 Back Extension G7-S78 Glute G7-S55...
- Page 12 G7-S74-02 Part # 1000398541 © 2017 Johnson Health Tech Rev 1.2 A...
