Summary of Contents for Matrix UBC
-
Page 2: Important Precautions

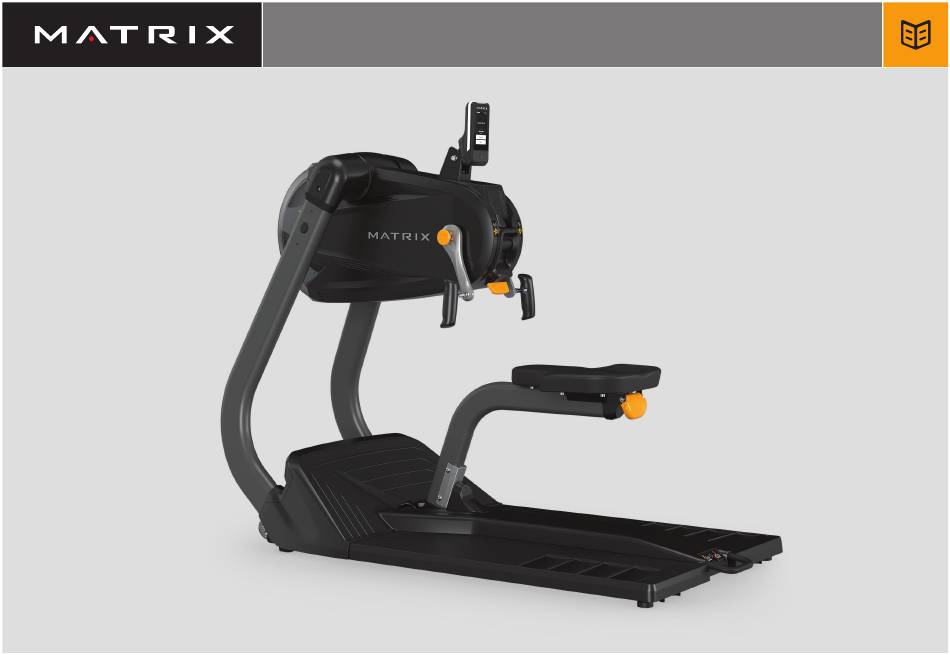

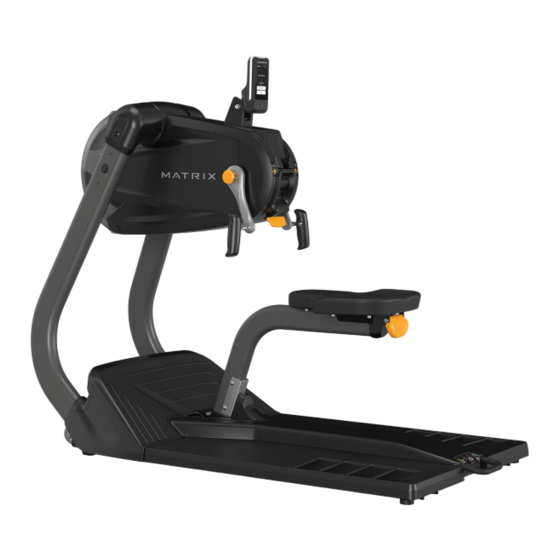

IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using Matrix exercise equipment, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of all warnings and precautions. - Page 3 1. This Transmitter must not be co-located or operating in F UBCM conjunction with any other antenna or transmitter. MATRIX UPPER BODY CYCLE F UBCP 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment * Use the information above when calling for service.
- Page 4 ENGLISH ASSEMBLY DEVICE HOLDER CONSOLE CRANKS ARM LOCK CRANK DRIVE SET RESISTANCE LEVER ( WATER BOTTLE HOLDER UBCM only CRANK HEIGHT ADJUSTMENT LEVER CRANK HANDLES OPTIONAL SEAT BACK SEAT SEAT RELEASE LEVER FRAME MASTS TRANSPORT HANDLE FOOT REST OPTIONAL WHEEL CHAIR RAMPS TRANSPORT WHEELS LEVELERS BASE FRAME...
- Page 5 ENGLISH ASSEMBLY Pre-installed Hardware Screw (M5x12L) Bolt (M10x45L) Flat Washer (M10) Bolt (M8x20L) Flat Washer (M8) Torque Value C - 80 Nm / 58 ft-lb E - 10 Nm / 7.5 ft-lb Hardware Hardware Screw (M5x12L) Bolt (M10x25L) Bolt (M8x25L) Spring Washer (M10) Flat Washer (M10) Torque Value...
- Page 6 ENGLISH ASSEMBLY Pre-installed Hardware Screw (M5x12L) Bolt (M10x45L) Screw (M4x20L) Torque Value K - 80 Nm / 58 ft-lb Insert Bolts (K). Align Transmission Set to center, then torque Bolts (K) in sequence (1 – 4) Torque Value 20 Nm / 15 ft-lb Pre-installed Hardware Screw (M5x12L)
- Page 7 ENGLISH OPTIONAL Hardware Hardware Screw (M5x12L) Left Handle Screw (M5x10L) Right Handle Bolt (M8x55L) Screw (M6x10L) Arc Washer (M8) Nut (M6) Torque Value Torque Value C - 25 Nm / 18 ft-lb E/F - 20 Nm / 15 ft-lb G - 17 Nm / 12.5 ft-lb...
-
Page 8: Console Information
ENGLISH UBCM CONSOLE OPERATION CONSOLE INFORMATION Console turns on when pedals are moved. Press to change the large metric at the top from RPMs to Watts, to HR, to a lap feature. LAP/INTERVAL - when on the lap screen, press to start the first BACK-LIT LCD interval. -
Page 9: Using The Heart Rate Function
ENGLISH UBCM CONSOLE OPERATION USING THE HEART RATE FUNCTION The heart rate function on this product is not a medical device. The heart rate reading is intended only as an exercise aid in determining heart rate trends in general. Please consult your physician. -
Page 10: Home Screen
ENGLISH UBCP CONSOLE OPERATION HOME SCREEN RUN SCREEN (RPM) - Page 11 ENGLISH UBCP CONSOLE OPERATION SIGN IN The UBCP has a fully integrated touch screen display. All information required for workouts is explained on screen. Exploration of the interface is highly encouraged. 1) Enter your XID and touch A) POWER BUTTON: Press to wake display/power on. Press and hold for 3 seconds to 2) Enter your PASSCODE and touch put display to sleep.
-
Page 12: Servicing Of Double-Insulated Products
MANAGER MODE SERVICING OF DOUBLE-INSULATED PRODUCTS To enter manager mode, press and hold the MATRIX logo in the center of the screen for 10 seconds. Then enter 1001 and touch In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product. -
Page 13: Before You Begin
ENGLISH BEFORE YOU BEGIN PROPER USAGE TRAINING AREA FREE AREA LOCATION OF THE UNIT Place the equipment on a level and stable surface away from direct sunlight. The intense UV light can cause discoloration on the plastics. Locate the equipment in an area with cool temperatures and low humidity. - Page 14 A) CRANK HEIGHT ADJUSTMENT SEATED: While seated on the UBC, grab the drive with both hands, squeeze the height adjustment lever, then lift or lower the crank axis until it is in line with the center of the chest. Release the lever to lock into position. Crank handles should not hit the thigh when rotated.
-
Page 15: Maintenance Schedule
With ramps - 186 x 78.4 cm / 73.2 x 30.9” * Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs. - Page 16 © 2025 Johnson Health Tech Rev 1.0 A...
