Master-Slave
INSTRUCTION MANUAL
(M247B01-03-22A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Master-Slave and is the answer not in the manual?

Questions and answers

Related Manuals for Circutor Master-Slave

Summary of Contents for Circutor Master-Slave

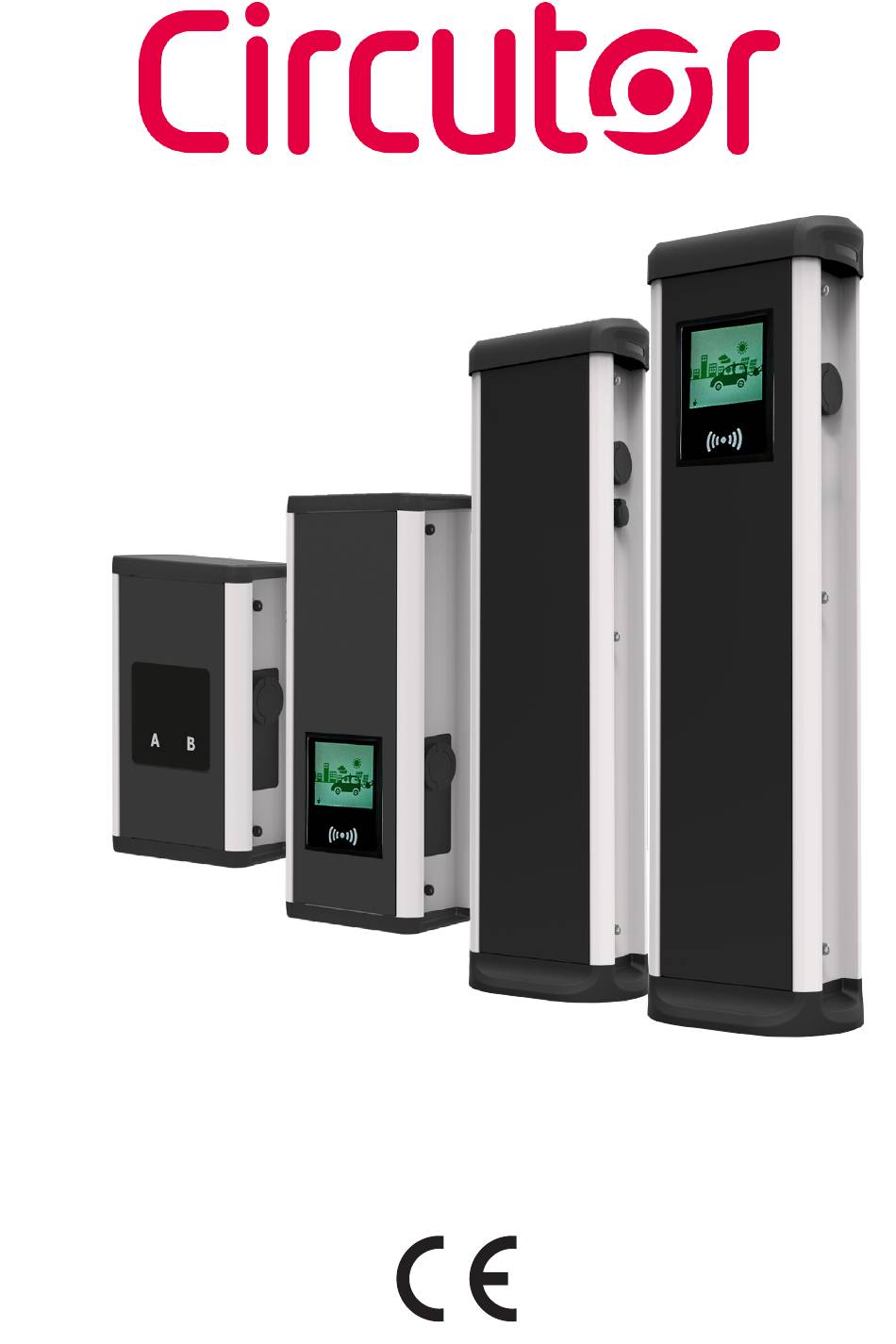

  • Page 1 Master-Slave INSTRUCTION MANUAL (M247B01-03-22A)

  • Page 2: Disclaimer

    CIRCUTOR S.A.U. reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S.A.U. on its web site, supplies its customers with the latest versions of the device speci- fications and the most updated manuals.
  • Page 3 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by CIRCUTOR S.A.U.. All rights are reserved. CIRCUTOR S.A.U. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 4: Table Of Contents

    URBAN MASTER - SLAVE Contents Disclaimer ............................2 Revision log ............................2 Contents ............................4 1. So, hello! ..............................6 2. Features ..............................8 3. How to use it? ............................12 A. General ..........................12 B. Language ........................... 14 C. Starting a charging session ....................15 D.
  • Page 5 URBAN MASTER - SLAVE Instruction Manual...
  • Page 6 URBAN MASTER - SLAVE This manual provides information about the usability and configuration of the Master-Slave solution, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. It contains all the necessary information for safe use and help to get the best performance from it with step-by-step configuration instructions.

  • Page 7: So, Hello

    Read carefully all the instructions before starting in order to ensure properly installation of the Charge Point. • Do not use the Charge Point for anything • Use only CIRCUTOR supplied spare parts. other than electric vehicle charging modes which are defined in IEC 61851-23.
  • Page 8 URBAN MASTER - SLAVE Master Able to be configured for multi-point solutions. • HMI: 8’’ colour touch screen as the interface between the Charge Point and the user. Provides detailed information about ongoing charge transactions and the instructions of how to interact with the Charge Point.

  • Page 9: Features

    URBAN MASTER - SLAVE Features Slave • Connector Lock: Available lock system to avoid disconnection of EV meanwhile is charging. • Light beacon: Three LED colour indicate all connector status (free, error, charging or completed) at a glance. • Energy metering: Integrated meter built is measuring power and energy consumed by the EV during a charge transaction.
  • Page 10 URBAN MASTER - SLAVE Master-Slave combination The following table shows the possible combinations of Charge Point that can work as Masters or as Slaves: MASTERS SLAVE TYPE OF CHARGE URBAN Slave M2 URBAN Slave T2 URBAN-WB Slave M2 URBAN-WB Slave T2...
  • Page 11 URBAN MASTER - SLAVE Outlets for each Master We have different possibilities to be part of the Master-Slave solution, with a maximum of 18 outlets, taking into account that 1 DC outlet equals to a 3 AC outlets. The following picture shows some of the many possible combinations that can be part of the Mas- ter-Slave solution Number of Slaves outlets up to 18 AC.
  • Page 12 URBAN MASTER - SLAVE A General The first time the Charge Point is powered on, the system will take around 10 seconds to start up, the screen will show next image: In the lower right corner, the firmware version is shown. After 10 seconds, the first screen that appears is the screensaver.

  • Page 13: How To Use It

    URBAN MASTER - SLAVE How to use it? When tapping on the screen, the HMI will skip to the next one At this new screen, the Charge Point is asking for showing the identification method the user is going to use in order to start a charge transaction, as you can see there are four possible options. - Choosing RFID, Code Reader or keyboard options, are the options that will let to initiate a ‘Charging session’...

  • Page 14: Language

    URBAN MASTER - SLAVE B Language During all the process is possible to change language, pressing on the top of the screen over the ‘Flag’ touch symbol: The language can be chosen by tapping on the corresponding flag. This option will allow user to change the language ONLY for the current Charge Transaction. When Charge Point returns to main or standby screen, it will return the default language, which is configured in the Setup Webpage.

  • Page 15: Starting A Charging Session

    URBAN MASTER - SLAVE C Starting a charging session Once the identification card is shown, it may take a few seconds to authorise the access. The HMI informs if the access is granted or not. Instruction Manual...
  • Page 16 URBAN MASTER - SLAVE If the user is authorised, the connector can be chosen. At any time it is possible to tap this button in order to go back to the ‘identification screen’. Once the connector is chosen, instruction screens will appear successively. 1- Connect your vehicle and press the ‘Start’...
  • Page 17 URBAN MASTER - SLAVE 2- Checking vehicle connection… Please wait In a few seconds, the charging session will start and the HMI will show the charging process. Tap this button in order to go back to the ‘identification screen’. Instruction Manual...

  • Page 18: Special Events Starting A Charge

    URBAN MASTER - SLAVE D Special events starting a charge ‘Not authorized’: some Charge Points could be working under the supervision of a main management system. If the user is not authorized, the HMI will show the following message: ‘Authorization failed’: the authorization could not be completed due to some communication problem with the Back Office.
  • Page 19 URBAN MASTER - SLAVE It is possible that the Charge Session could not be started due to some unexpected reason. The HMI will show next screen, press ‘Retry’ button and try again. Instruction Manual...

  • Page 20: Stopping A Charging Session

    URBAN MASTER - SLAVE E Stopping a charging session After showing the same identification card that started the Charging Session, the Charge Point will automatically allow to stop the charging session, press over the ‘Stop’ button: Once the charging session is stopped, the HMI shows the summary screen. Instruction Manual...

  • Page 21: Charge Information

    URBAN MASTER - SLAVE F Charge information Depending on the the connector used, the HMI screen can show different process information. The information is almost the same except for few details. 1- Language button: possibility to change the HMI language. 2- Additional information: current status, errors, battery status, etc.

  • Page 22: Charge Summary

    URBAN MASTER - SLAVE G Charge summary 1- Language button: possibility to change the HMI language. 2- Process instructions: different instructions can be displayed. 3- Energy charged: total energy charged at the end of the charging session. 4- Battery SOC : It indicates the final battery state of charge at the end of the charging session.

  • Page 23: Emergency Button

    URBAN MASTER - SLAVE H Emergency button If for any reason the Emergency button is pressed, all in progress charge transactions will be stopped, the beacon lights will turn red and it will not be possible to start new charge transaction until the recovery process is completed successfully.

  • Page 24: Connector Status

    URBAN MASTER - SLAVE I Connector status The HMI screen shows a different symbols, as you can see below: Connector available, a Charging Session can be starded. Connector charging, a Charging Session cannot be starded because it is already in use. Connector disabled, a Charging Session cannot be starded because it is under maintenance or because the Back office has decided to stop it.

  • Page 25: Errors

    URBAN MASTER - SLAVE J Errors The Charge Point can report about different sort of errors, it can be from different parts or devices from it. When the ‘Error’ screen appears, the ‘Information’ touch button has to be pressed in order to see the error message, as you can see below: Chargepoint: 0x0 Plug: 0x20000...
  • Page 26 URBAN MASTER - SLAVE Logical levels: Charge point: General errors affecting the whole charge Point (E.g.: RFID error). Plug: Error affecting one plug. All sockets are in error state. Plug is inoperative. Socket: One plug may have more than one socket. Error can affect one socket and plug still being available.
  • Page 27 URBAN MASTER - SLAVE Instruction Manual...
  • Page 28 URBAN MASTER - SLAVE A Network topology The Master Charge Point and all the Slave Charge Points must be connected to the same Ethernet Switch before proceeding with the commissioning. *The Switch Device may be located inside the Master Charge Point as an optional. Instruction Manual...

  • Page 29: How To Connect It

    Point and it is located on the TCP1RS. The location HMI screen. of this device may vary depending on the model, for more information please contact CIRCUTOR Post- Sales Department. Before proceeding , make sure all the following is ready:...

  • Page 30: Ipsetup

    URBAN MASTER - SLAVE C IPSetup 1 - Connect the UTP Cable to the Computer (running Microsoft Windows, at least Windows XP) and the Ethernet Switch. The Computer and the Charge Point must be in the same network and in the same range. 2 - Execute IPSetup.exe on the Computer.
  • Page 31 URBAN MASTER - SLAVE 3 - Choose between TCP1RS+ and TCP2RS+ depending on the type of Charge Point are you working with: TCP1RS+: Charge Point working as a Slave. TCP2RS+: Charge Point working as a Master. 4 - Enter the following parameters and click on ‘Configure’ •...
  • Page 32 URBAN MASTER - SLAVE 5 - In case of TCP1RS+ please select Protocol ‘UDP’, Port ‘10002’ and Communication Speed ‘9600’: 6 - Wait 30 seconds approximately until the process is complete. 7 - The process will complete when the following message appears, by click ing on ‘OK’ the setup webpage will open.
  • Page 33 URBAN MASTER - SLAVE Instruction Manual...
  • Page 34 Step 1.- Open Charge Point’s door and locate the modem. Step 2.- Check that the Charge Point is provided with the antenna on the cover top. Modem is fully configurated by default in CIRCUTOR. Only in case it is needed to configure it, remain in this section.

  • Page 35: Modem Configuration

    URBAN MASTER - SLAVE Communications B Modem configuration 1 . - M O D E M O V E R V I E W The 4G modem installed from factory in the Charge Point is: Teltonika RUT240 This device allows to the Charge Point connect over 4G networks to remotely view or manage the Charge Point status.
  • Page 36 URBAN MASTER - SLAVE 2 . - C O N N E C T I O N S TAT U S L E D Explanation of connection status LED indication:  Signal strength status LED’s turned on: router is turning on ...
  • Page 37 URBAN MASTER - SLAVE 3 . - S I M C A R D I N S TA L L AT I O N Insert SIM card which was given by your ISP (Internet Service Provider). Correct SIM card orientation is shown in the picture.
  • Page 38 URBAN MASTER - SLAVE 4 . - L O G G I N G I N After you’re complete with the setting up as described in the section above, you are ready to start logging into your router and start configuring it. This example shows how to connect through Wi-Fi: For cibersecurity reasons, modem’s Wi-Fi connection is disabled by default.
  • Page 39 URBAN MASTER - SLAVE 4.3.- Open a web browser and type http:/ /192.168.1.1 Use the following parameters when prompted for authentication, and then either click Login with your mouse or press the Enter key. User name: admin Password: Admin001 You have now successfully logged into the RUT240!, from here on you can configure almost any aspect of your router.
  • Page 40 1.- If your SIM provider requires any authentication ask them about what type, PAP or CHAP, select it on ‘Authentication method’ field and introduce a password and username. 2.- If you need to do some custom over the modem configuration, ask CIRCUTOR Post Sales Department in order to get the Teltonika modem manual.
  • Page 41 URBAN MASTER - SLAVE 4.6.- In order to know if the connection has been done properly, check next steps: Go to Status → Network → Mobile and pay attention to ‘Data connection state’, it has to be Connected. Go to Status → Network → WAN and pay attention to ‘IP address’, the modem must has found a public IP address.
  • Page 42 URBAN MASTER - SLAVE Go to Status → Network → LAN → DHCP Leases and pay attention to ‘IP addresses’ At ‘DHCP Leases’ check that the modem has detected the automatic IP address and MAC number for both, the Computer connected and the Charge Point. NOTES: 1.- If the modem has not detected the automatic IP address, switch off the circuit breaker, wait for 10 seconds and switch it on again.
  • Page 43 URBAN MASTER - SLAVE 4.7.- Go to Network → LAN → Static Leases Complete the fields with next information: Hostname - It can be written the name wanted for the Charge Point. It is highly recommended to name it keeping this structure: ChargePoint_xxxxxxxxxxxx, to identify it easier. MAC address - It will be the MAC number found behind the HMI screen, on the label.
  • Page 44 URBAN MASTER - SLAVE 4.8.- Disconnect the MCB inside the Charge Point in order to do a hard reset over the modem and the HMI screen, after 10 seconds switch ON again the MCB. 4.9.- Repeat again the points 4.2. and 4.3. explained above: 4.2 - look for modem access point and connect on it.
  • Page 45 URBAN MASTER - SLAVE 4.11.- Go to Network → Firewall → Port Forwarding → New Port Forward Rule The ports that you can see in the table below are introduced in the modem by default, although only the named 50000 and 9191 are enabled: Name Protocol External port (S)
  • Page 46 URBAN MASTER - SLAVE 4.12.- Go to Network → Firewall → Traffic Rules Roll down and Look for ‘Enable_HTTP_WAN’ and ‘Enable_HTTPS_WAN’ fields and enable them. Roll down again and push over ‘Save’ button. Instruction Manual...
  • Page 47 URBAN MASTER - SLAVE 4.13.- For ending with the modem logging is necessary to do a reboot: Go to System → Reboot and push over the ‘Reboot’ tab. During the process, the system will show the progress, do not switch off the modem. 4.14.- Repeat again the points 4.2.
  • Page 48 URBAN MASTER - SLAVE 4.15.- It is necessary to check that the Teltonika RUT240 LTE modem option is chosen at Charge Point’s setup webpage: Make sure that your Service PC is still connected with the Charge point through wifi, open a web browser and type 192.168.1.50.
  • Page 49 URBAN MASTER - SLAVE Instruction Manual...
  • Page 50 URBAN MASTER - SLAVE Option only available to access in case of Master Charge Point. Setup webpage allows managing networking setup, upgrading devices and other options. Once the Service PC is already connected to Charge Point, it is possible to open Setup Webpage through the IP entered.

  • Page 51: Setup Webpage

    URBAN MASTER - SLAVE Setup Webpage COMMUNICATIONS As a relevant information, it shows: Parameter Description Short for Internet Protocol. Identifier that allows in- formation to be sent between devices on a network. MAC Address Identifier of the network card of the Charge Point CHARGE POINT It is displayed if the Charge Point is available to be used or not.

  • Page 52: Monitor

    URBAN MASTER - SLAVE B Monitor In this section, it can be consulted the status of the Charge Point, the type of connectors it has and the availability of them. It is possible to start or stop a charging session, able or disable a connector or lock or unlock it remotely.

  • Page 53: Historic

    URBAN MASTER - SLAVE C Historic This section provides information of every charge transaction started in the Charge Point. It can be checked date and hour of begin and end of a charge transaction, energy charged, alias of the user and type of charge used. All of this elements have the chance to be organized depending on the user needs.

  • Page 54: Integrations

    URBAN MASTER - SLAVE D Integrations Clicking over the ‘Integrations’ tab, user will be able to activate OCPP integrations. Note: the integration of the Charge Point needs a separate chapter. In the next chapters number 6 and 7 it is explained how to integrate OCPP. Instruction Manual...

  • Page 55: Configuration

    URBAN MASTER - SLAVE E Configuration In this section, there can be adjusted many different settings related with the Charge Point, depending on the elements it has and level of security it is desirable to have. IDENTIFICATION METHOD It is possible to enable or disable the option in order to use the Charge Point with or without identification, and also, if the user is capable to stop charge transaction.
  • Page 56 URBAN MASTER - SLAVE ChargeBox Id enabled option allows the system to differentiate every single charge point separately, in order to use this data by the back end system. As a Pre-authorisation amount, it can be configured the amount of money that the bank blocks to the user once the charge transaction starts.
  • Page 57 URBAN MASTER - SLAVE CHARGE: The Charge Point is capable of balancing the available power based on the number of outlets in use. Parameter Description ENABLE: the Charge Point shares equally the power delivered to each ongoing Charge Transaction without exceeding the limit configured. Power Balance DISABLED: the Charge Point does not take in consideration any limit, giving the maximum power for each connector.
  • Page 58 URBAN MASTER - SLAVE Parameter Description It indicates the power available to divide between the Shared power connected vehicles. The Max.current supply (A) is the available power ONLY for AC outlets. OCPP-Smart Charging The power balance is made via OCPP. Instruction Manual...
  • Page 59 URBAN MASTER - SLAVE COMMUNICATIONS This section provides basic configuration of the network parameters. DHCP server (router) means to enable or disable the IP address assignment. To be enabled when working with the integrated modems. Instruction Manual...
  • Page 60 URBAN MASTER - SLAVE HMI (Human Machine Interface.) In this section, there can be adjusted many settings related with the Display. In General tab it is possible to adjust screen brightness and enable or disable the email support and timeout. Also, in the Charge Point can be uploaded up to 20 languages between the wide variety able to choose.
  • Page 61 URBAN MASTER - SLAVE In Screensaver tab it is possible to adjust timeout and brightness and enable or disable advertis ements, what lets customize the Screensaver image by uploading a file. TARIFFS In this section, it can be adjusted the cost of a charge transaction in the device. These settings are just displayed to inform the customer.
  • Page 62 URBAN MASTER - SLAVE There are few parameters that can be adjusted: Parameter Description Choose the proper currency according to the area the Currency Charge Point is installed. Price Limit Maximum cost of the charge transaction. Fixed service fee Price of a new charge transaction. Amount of money to be payed based on the energy Energy fee delivered to the EV.
  • Page 63 URBAN MASTER - SLAVE SECURITY Parameter Description ENABLE: Information transferred between Charge Point and laptop is strictly encrypted. Allow only secure Once enabled, it must be done some modifications in modem connections configuration, as explained below. DISABLED: not possible to assure secure connections be- tween Charge Point and laptop.
  • Page 64 URBAN MASTER - SLAVE Configure modem to allow secure connections: After you’re complete with the setting up as described in the section 5, you are ready to start logging into your router and start configuring it. 1.- Go to Network → Firewall → Port Forwarding → Port Forwarding Rules Locate the port named ‘Enable_ HTTPS_WAN_PASSTHROUGH’...
  • Page 65 URBAN MASTER - SLAVE 2.- Go to Network → Firewall→ Port Forwarding → New Port Forward Rule At the bottom part of the screen, add a new port forward rule with the following parameters and once introduced click ‘Add’ button: Name: Enable_HTTPS_WAN_OCPP Protocol: TCP External port: 8443...
  • Page 66 URBAN MASTER - SLAVE 3.- Go to Network → Firewall → Traffic Rules Locate the port named ‘Enable_ HTTPS_WAN’ and click ‘Edit’ button. Once in Edit screen, insert 192.168.1.50 in ‘Destination address’ field and 443 in ‘Destination port’ field; then click ‘Save’ button. Instruction Manual...
  • Page 67 URBAN MASTER - SLAVE 4.- Go to Network → Firewall → Traffic Rules At the bottom part of the screen, add a new traffic rule with the following parameters and once introduced click ‘Add’ button: Name: OCPP Protocol: All Destination address: 192.168.1.50 Destination port: 8443 Check that the new line appears and tap enable check in case is disabled.

  • Page 68: Maintenance

    URBAN MASTER - SLAVE F Maintenance DEVICES STATUS In this section, it can be consulted the status of the devices which are communicating via RS-485. UPDATES Through this tab, the Charge Point firmware and the application can be upgraded remotely. Instruction Manual...
  • Page 69 URBAN MASTER - SLAVE To obtain the latest firmware version, please contact CIRCUTOR Support Department. DIAGNOSTICS Clicking over the ‘HW Testing’ tab, it appears to enable or disable Grid test option. That means HMI shows a test screen to check that touch function works properly.
  • Page 70 URBAN MASTER - SLAVE SYSTEM STATUS The information shown in this section is basically relative to the state of the PC of the Charge Point. It is necessary for the technical service staff but does not show any information regarding to the external connection of the Charge Point or to the charging session.
  • Page 71 URBAN MASTER - SLAVE Next, we will explain the different sections of the 'Date and time' and 'Reset' Parameter Description Select the regional time for the Charge Point accord- Time Zone ing to the location Time Current date and time of the Charge Point Primary NTP Server Synchronize the time through internet automatically Secondary NTP Server...
  • Page 72 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.5 in the CIRCUTOR Charge Points. Instruction Manual...

  • Page 73: Ocpp 1.5

    URBAN MASTER - SLAVE OCPP 1.5 B Before starting Check following steps in order to ensure the correct function of OCPP 1.5: Go to the Setup Webpage → ‘Configuration’ tab → ‘Communications’ tab Once in ‘General’ section, ‘Public IP source’ establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.
  • Page 74 URBAN MASTER - SLAVE Go to the Setup Webpage → ‘Integrations’ tab → ‘General’ tab Choose the option selected under ‘Available integrations’ according to your backend policies as shown in the picture: Charge Point supports different versions of OCPP but only one can be enabled at the same time. When done, please do not forget to save changes pressing ‘Apply’...

  • Page 75: Configuration

    URBAN MASTER - SLAVE C Configuration Go to the Setup Webpage → ‘Integrations’ tab → ‘Network’ tab In this section it is possible to modify some parameters related with network. Parameter Description Incoming OCPP TCP Incoming listening port for remote request (internal). Port (Internal) Incoming OCPP TCP Incoming listening port for remote request (public)
  • Page 76 URBAN MASTER - SLAVE Go to the Setup Webpage → ‘Integrations’ tab → ‘Settings’ tab Check OCPP Settings according to the back-end policies, please contact to the Central System to get the configuration parameters: Before making any changes read following table and set each option according to your backend provider.
  • Page 77 URBAN MASTER - SLAVE Parameter Description ENABLED: Synchronization of date and time. Use OCPP time syn- DISABLED: Synchronization of date and time. chronization Note: Date and Time is sent from backend on each heartbeat response. PARTIAL: Sends partial energy consumption while vehicle is charging.
  • Page 78 URBAN MASTER - SLAVE Parameter Description PARTIAL: Consumed value of energy by the vehicle sent between start and stop. Energy for Start/Stop transaction TOTAL: Count of the total accumulated energy meter sent be- tween start and stop. ENABLED: Charge point sends an authorization request before starting a new remote charge transaction request.
  • Page 79 URBAN MASTER - SLAVE Parameter Description Timeout obtaining Timeout (in seconds) before connecting to the central system. public IP address Level of information detailed (DEBUG→INFO→ERROR→- Log capture level NONE). Instruction Manual...
  • Page 80 URBAN MASTER - SLAVE Go to the Setup Webpage → ‘Integrations’ tab → ‘SSL Certificates’ tab When working with ‘secure’ connections, HTTPS, a certificate from the back office (normally a ‘bundle’ file) may be needed to assure proper communication with the charging station. Depending on the case, select the proper option and press Browse button in order to upload the certificate.
  • Page 81 URBAN MASTER - SLAVE Go to the Setup Webpage → ‘Integrations’ tab → ‘Configuration keys’ tab Parameter Description Number of seconds between Heartbeats. Heartbeat interval Note: setting this value to 0 disables the Heartbeat. Number of seconds between MeterValue during an Metervalues sample ongoing Charge Transaction.
  • Page 82 URBAN MASTER - SLAVE Go to the Setup Webpage → ‘Integrations’ → ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded from another Charge Point. Instruction Manual...
  • Page 83 URBAN MASTER - SLAVE Instruction Manual...
  • Page 84 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.6 in the CIRCUTOR Charge Points. Instruction Manual...

  • Page 85: Ocpp 1.6

    URBAN MASTER - SLAVE OCPP 1.6 B Before starting Check following steps in order to ensure the correct function of OCPP 1.6: Go to the Setup Web-page → ‘Integrations’ tab → ‘General’ tab Once in ‘General’ section, Public IP source establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.

  • Page 86: Configuration

    URBAN MASTER - SLAVE C Configuration Go to the Setup Webpage →’Integrations’ tab → ‘General’ tab Charge Point supports different versions of OCPP but only one can be enabled at the same time. Go back to setup web page and click on the ‘Integrations’ tab, choose the option selected under ‘Available integrations’...
  • Page 87 URBAN MASTER - SLAVE Parameter Description Charge Point ID Charge Point identifier. Set an authentication if required, being the options Basic Authentication ‘Enabled’ and ‘Disabled’. Connection URL URL address of the central system. CS-Password Introduce CS-Password if required. Instruction Manual...
  • Page 88 URBAN MASTER - SLAVE Go to the Setup Web-page → ‘Integrations’ → ‘Settings’ tab Once OCPP 1.6 option is selected, a link appears allowing access to the OCPP configuration. Please, click on the link button as shown in the picture: Instruction Manual...
  • Page 89 URBAN MASTER - SLAVE Parameter Description ENABLED: Synchronization of date and time Use OCPP time syn- DISABLED: Synchronization of date and time chronization Note: Date and Time is sent from backend on each heartbeat response. PARTIAL: Sends partial energy consumption while vehicle is charging.
  • Page 90 URBAN MASTER - SLAVE Go to the Setup Web-page → ‘Integrations’ → ‘SSL certificates’ tab For WSS connections is needed a Central System certificate. Upload it in this section. To obtain the latest certificates, please contact Central System you are working with.
  • Page 91 URBAN MASTER - SLAVE Go to the Setup Web-page → ‘Integrations’ → ‘Configuration keys’ tab Instruction Manual...
  • Page 92 URBAN MASTER - SLAVE Parameter Description ENABLED: maintain a local list of all presented identifiers that have been successfully authorized by the Central System. Authorisation cache DISABLED: authorization for presented identifiers is requested directly to the Central System ENABLED: the Charge Point asks for authorization when the Central System sends a remote start Authorise remote Tx requests...
  • Page 93 URBAN MASTER - SLAVE Parameter Description ENABLED: stop existing Charge Transaction after response from Central System when user is blocked, expired or invalid. Stop transaction on invalid ID DISABLED: Charge Transaction does not stop even if backend rejects the user. Metervalue (select one List of supported values used in the MeterValue.
  • Page 94 URBAN MASTER - SLAVE Go to the Setup Web-page → ‘Integrations’ → ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded from another Charge Point. Instruction Manual...
  • Page 95 URBAN MASTER - SLAVE Go to the Setup Web-page → ‘Integrations’ → ‘Security’ tab In this chapter could be introduced a user and password in order to enter in this section. It is possible this option to be changed whenever is desired. Note: Old password is 1234 by default.
  • Page 96 The IP address assigned previously, is useful to connect with the Charge Point in order to monitor the real-time status. The main way to connect is using the PowerStudio client software (Supplied by CIRCUTOR) or you can download it from CIRCUTOR Webpage.

  • Page 97: Monitoring

    URBAN MASTER - SLAVE Monitoring Instruction Manual...
  • Page 98 URBAN MASTER - SLAVE A AC Charge MODELS SPECIFICATIONS URBAN MASTER / URBAN SLAVE AC Power supply 1P+N+PE 3P+N+PE AC Input voltage 230V~ ±10% 400V~ ±10% Maximum input current 64 A Maximum input power 14.8 kW 44 kW Number of sockets Sockets: Maximum output Power 7.4 kW 22 kW...

  • Page 99: Technical Data

    URBAN MASTER - SLAVE Technical Data URBAN SLAVE Master Communication Ethernet UTP OPTIONAL DEVICES Low temperature Kit -30ºC ... +45ºC RCD Type A + 6mA DC Safety Protection RCD Type B (30mA) Four pole transient surge protector IEC 61643-1 Surge Protection (class II) Type 2 socket protection Shutter...

  • Page 100: Dc Charge

    URBAN MASTER - SLAVE B DC Charge ELECTRICAL DATA AC Power supply 3P+N+PE AC Input voltage 400 V ±10% three-phase Maximum AC input current 39 A Maximum output power 25 kW Maximum output current 70 A Output voltage 150 ... 920 Vdc Power Factor >...
  • Page 101 URBAN MASTER - SLAVE (Continuation) OPTIONAL DEVICES Contactless payment Integrated credit card payment terminal URBAN MASTER Wireless communication LATAM/APAC - 4G LTE/GPRS/GSM Network hub RFID Extension Switch TCP ethernet 16 ports Ask for availability. Only in Wallbox mode. ENVIRONMENTAL CONDITIONS Storage temperature -40ºC ...
  • Page 102 URBAN MASTER - SLAVE Instruction Manual...

  • Page 103: Need Help

    CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return.
  • Page 104 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
