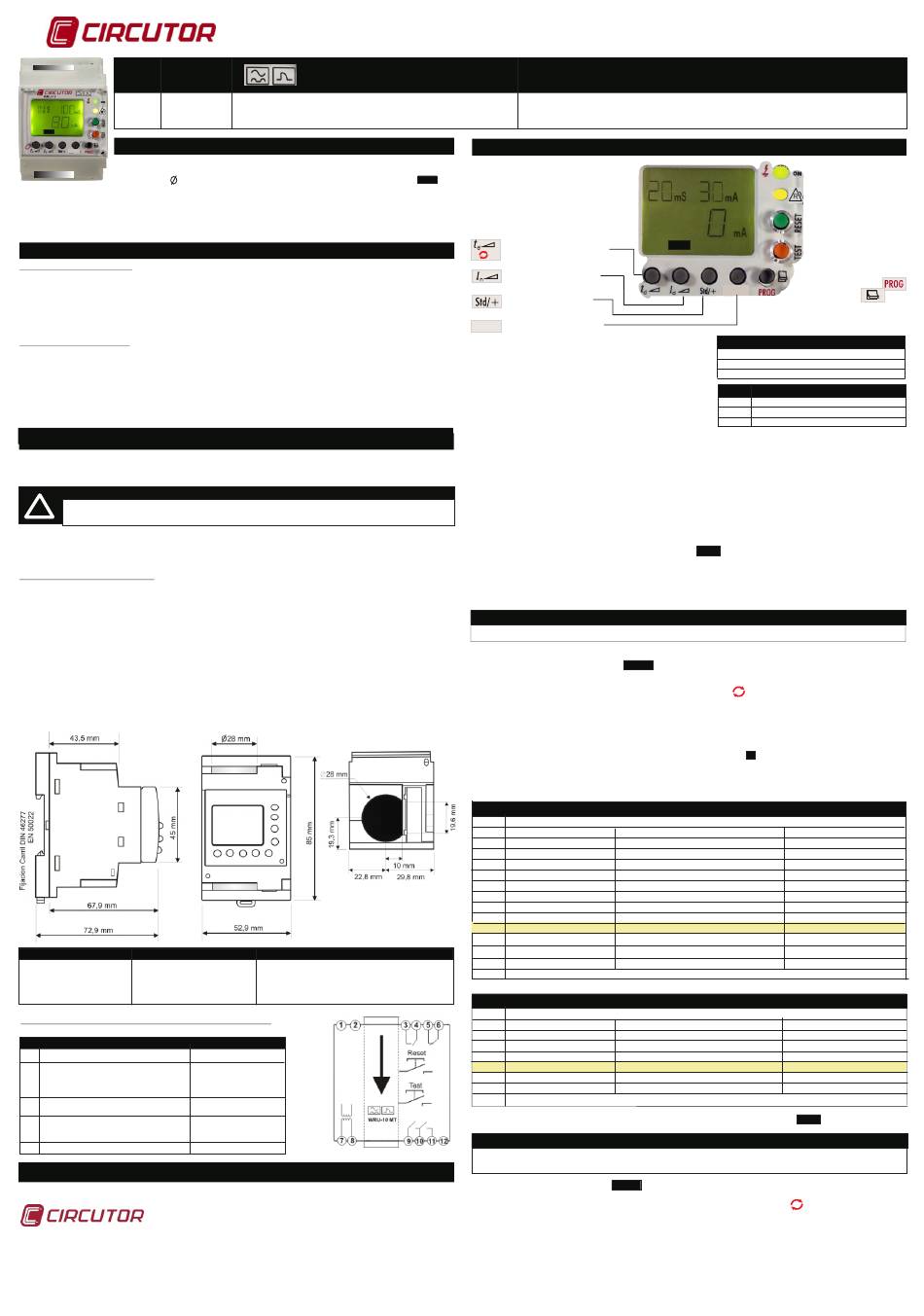

Circutor WRU-10 MT Quick Start Manual

Code Type
RAL
P24275 WRU-10 MT
REC
GENERAL DESCRIPTION
REC

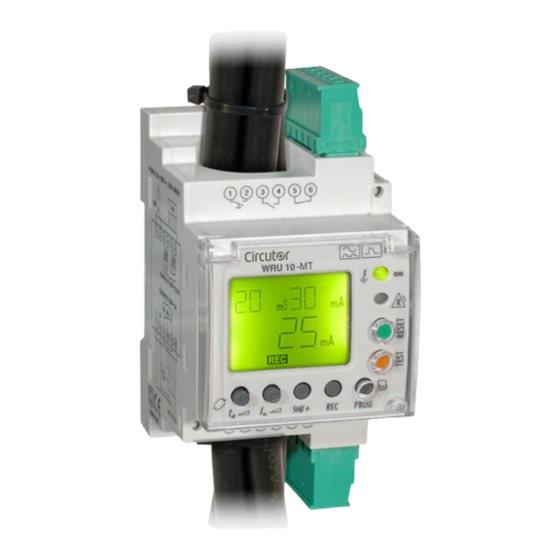

Super-inmunized Type A electronic relay. Built-in core balance
transformer, 28 mm.Device with self-reclosing system. Symbol
display. It has programmables relays, 3 outputs. Main trip and 2 pre-alarm signals. It has 1
free voltage input for external ON / OFF. Mounting in DIN rail 46277 (En50022) or PANEL
72x72 by means of accesories M5ZFF1. Displays setting values and instantaneous earth
leakage current value (TRMS)
PRELIMINARY CONSIDERATIONS
CHECKS ON RECEPTION
On receving the instrument, check the following points:
- The unit's specifications are the same as those on your order.
- Check that the device has not suffered any damage during transport.
You can download more information from CIRCUTOR website, www.circutor.es
SAFETY PRECAUTIONS
The staff using or handling the unit must follow the common safety measures and warnings included in the
instruction manual.
The WRU-10 MT unit has been specifically designed for its installation in a electric board, enclosure to a
DIN rail or mounted in panel by means of accesories. It has a flashing green led (ON) when it is operation
and, therefore, it shows that there is voltage and current in the electronic circuit. The user must make sure
that the equipment is not conected to the power supply at all the times, even when the LED is not flashing.
INSTALLATION AND START-UP
The user must take into account and observe the informations and warnings included in this instruction
manual to guarantee the correct operation of the equipment and comply whit the safety specifications. The
equipment must not turned on until is fully installed in the electrical panel.
¡ IMPORTANT !
!
The unit´s protections systems might not be effective if the unit is used for purpose other than
those specifications by the manufacturer.
Disconnect the equipment from the power supply when the unit´ssafety protection systems are not working
or there are signs of a problem (in case of visible damage). In this case, contact a qualified technical service
or with our own technical service (TAS).
INSTALLING THE EQUIPMENT
DIN rail installation. On the inside of the hole must pass all live conductors supplyng electrical energy to
loads or part of the installation which requires it to earth leakage protection with this device. In single-phase
installation (phase and neutral, L and N), three phase - 3 wires (three phases, L1, L2 and L3) or three
phases - 4 wires (L1, L2, L3 and N). Depending on the level of wiring insulation can be pass through the hole
should be inside the electrical board. Please note that with the connected equipment, terminals and
opening covers or removing elements, can give access to dangerous parts to touch. The equipment must
not be used until it has completely finished installation. The unit must be connected to a power supply circuit
protected by fuses in line with the range and power consumption. In turn, the supply circuit must be
provided with a circuit breaker or equivalent device to disconnect the equipment from the mains. During the
wiring cable is advisable a section permitted between 1 - 1.5 mm2. A recommended torque of 0.5-0.6 N.M.
Cable Stripping Tools length 7 mm.
Power supply Operating conditions
+/- 30% Temperature -20...70 C
Voltage 230 Va.c..
Relative humidity 95%
Frequency 50!60 Hz
Max. Altitude 2.000 m
Burden 4,5 VA
Protection Ip20
CONNECTIONS BY MEANS OF PLUG-IN CONNECTORS
TERMINAL DESCRIPTION
Free voltage, not isolated
1 - 2 EXTERNAL INPUT TRIP / RECLOSE
3 PRE-ALARM OUTPUT RELAY, NO
Rated current: 0,25 Ac.a.
4 PRE-ALARM OUTPUT RELAY COMMON
Rated voltage: 230 Vc.a.
5 LOCKED OUTPUT RELAY, NC
Rated Load:
6 LOCKED OUTPUT RELAY COMMON
7 SUPPLY 230 Va.c. (Phase or Neutral) Protected by varistor:
8 SUPPLY 230 Va.c. (Neutral or Phase) 420 Vc.a. - 10 Ac.a.
9 TRIPPING OUTPUT RELAY,OFF MOTOR
Rated current:
10 TRIPPING OUTPUT RELAY, COMMON
Rated voltage: 250 Vc.a.
11 TRIPPING OUTPUT RELAY,ON MOTOR
Rated Load: 1.250 V·A
12 INPUT AUX. CONTACTS
Technical Assistance Service (T.A.S)
If you have any doubts about the running of the equipment or any faults, contact the service staff.
Vial Sant Jordi s/n
08232 Viladecavalls (Bacelona) SPAIN
WRU-10 MT Electronic Earth-leakage Protection Relay
Sensivity
0,03-0,1-0,3-0,5-1-3 by direct setting
5-10-30 by SETUP
Peso / Wheight : 168
Safety
Category III - 300 Vac (En61010)
Double - insulated electric shock protection
clas II - UL 1053 UL LISTED Certification -
IEC 60755 - IEC 60947-2 Annex M
FEATURES
62,5 V·A
5 Ac.a.
Tel: (+34) 93 745 29 00
Fax: (+34) 93 745 29 14
email: central@circutor.com
INS-SEL-0,02-0,1-0,2-0,3-0,4-0,5-0,75-1 by direct setting
.
DESCRIPTION LED AND BUTTONS
Shows equipment status via a
on
REC display and 2 LED's. It has 5
button equipment setup and
setting and 2 button equipment to
do TEST and RESET.
- DELAY SETTING
- SETUP ROTATION
- SENSIVITY SETTING
- outputs contacts SETTING.
(LOCKED SIGNAL)
- ENABLE/DISABLE
REC
SELF-RECLOSING SYSTEM
INDICATION BY LED AND DISPLAY
- MAIN TRIP RELAY LED and display signals a .
change of status by changing from green to red.
Display event type messages or values
- PREALARM SIGNAL. The LED green is blinking
betwen green and red.
BETWEN RECLOSURES. LED is blinking
-
LOCKED BY RECLOSURES. The yellow LED is
-
fixed. The equipment arrives al maximun number of reclosures established by the self-reclosing
sequence. Red display shows the cause.
- No OF RECLOSURES. By short press on the display shows the number of reclosures by earth
leakage faults, partial and total number. The partial number are floating pages. In these pages
it can configure the self-reclosing sequence by press button.
RECLOSING THE EQUIPMENT.
- BY TRIP LOCKED BY RECLOSURES
1. Automatic (earth leakage fault or manual). Is
2. Manual reclose by pushing button RESET.
3. External reclose sytem by remote or communications signal. When it forces a trip by remote
signal, only it can reclose by another remote signal. In the case 2 and 3 the partial counters
of reclosures returns to a zero.
The relay only self-recloses after a trip by earth leakage current fault. The Test (red button) only verifies the relay trips
the protection. It recloses only by manual pressing RESET button.
MAIN RELAY PARAMETER SETTING
- SETTING TRIP DELAY , t .
d
pressing the t button. The lowest value indicates the current set value and the highest is the
d
values to be configured which are displayed by pressing
displayed by showing the message
- SENSITIVITY SETTING , I .
d
- SIGNALLING CONTACTS RELAY STATE, std/+ . Select the default position of the relay contacts
4-5-6 that indicates the situation of locked by reclosures of the device . In (Std) 4-6 NO / 4-5 NC
and (+) 4-5 NC / 4-6 NO and appears the symbol in display
- SELF-RECLOSING SYSTEM, REC. In reclosure partial numbers by press REC button we
configure the self-reclosing sequence referred at the page which it's showing us. By default is
configured nº10 by earth leakage protection and nº5 by shortcircuit/overload fault.
SREC No RECLOSURES
0
1 6
2 30
3 8
4 6
5 6
6 7
7 10
8 10
9 8
10 10
11 7
12 31
13 3
14 (empty)
RECLOSE SEQUENCE BY SHORTCIRCUIT/OVERLOAD FAULT
SREC No RECLOSURES
0
1 2
2 2
3 2
4 2
5 2
6 2
7 6
8 (empty)
In the case that it is disabled the two secuences types disappear
The relay only self-recloses after a trip by earth leakage current fault and by shortcircuit/overload fault. The Test
(red button) only verifies the relay trips the protection. It recloses only by manual pressing RESET button.
SETUP ADJUSTEMNT
With the PROG button the submenus are browsed and with the
be selected are displayed
the value by displaying "SAVE"
remains inactive for a certain time, the equipment automatically exits Setting Mode and
displays "EXIT" without changing the setting
shortcirucuit/overlaod without coil and SC/UC with coil.
Tripping delay
3-5-10 by SETUP
REC
REC
Tripping cause
Test
Remote signal trip/reclose
Earth leakage fault
.
Others MESSAGES by display
Enter setting values
SAVE
Exits setting mode
EXIT
Value reading off scale
OVR
shown on display
REC
¡ IMPORTANT !
( t , I and std/+ )
d d
The message and two values appear on the screen after
PROG
. The selected value to be saved is
SAVE.
The same operation as above setting is carried out by pressing
+ .
TIME SEQUENCES
DISABLED
8, 16, 30, 59, 115 y 224 s
20, 40 s y 5 min. to the end.
30 s, 1, 2, 3, 4, 5, 6 y 7 min
10, 20, 30, 60, 130 y 600 s
2, 4 y 8 min. to the end.
30 s, 1, 2, 3, 4, 8 y 16 min
1 min
90 s
2, 4 y 6 min. To the end.
3 min
2, 4, 8, 16, 32, 32 y 32 min
2, 4 y 6 min. to the end.
2, 4 y 8 min
E mpty space for personalized secuence
TIME SEQUENCES
DISABLED
1 min
1 min
90 s
90 s
3 min
30 min
30 min
Empty space for personalized secuence
¡ IMPORTANT !
PROG
. Press PROG to enter the value. The equipment configures
on the display and then exits Setting Mode. If the keypad
. In the submenu TRIP ( circuir breaker ), Cb for
- GREEN led : ON
- RED led, tripped by fault.
- blinking led: pre-alarm
- Reclosures led:
fix, maximun reclosures
blinking, betwen reclosures
- RESET Button
- TEST Button
- SETUP settings
- change PAGES
Message display
TESt
EXT
DIF / value
.
I .
d
RESET TIME
15 minutes
15 minutes
15 minutes
15 minutes
15 minutes
30 minutes
30 minutes
30 minutes
15 minutes
30 minutes
15 minutes
60 minutes
15 minutes
RESET TIME
30 minutes
60 minutes
30 minutos
60 minutes
30 minutes
30 minutes
30 minutes
REC
button the values to
M98232601-03-14A
